Designing the Shank

Create the base shank of the solitaire ring and configure its profile and dimensions for a classic, tapered look.

Step 1: Classic Command

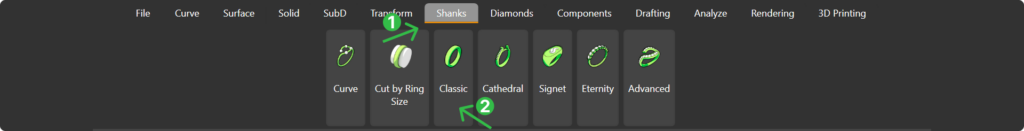

Go to the Shanks tab (1), choose the Classic Shank (2) command.

Step 2: Classic Library

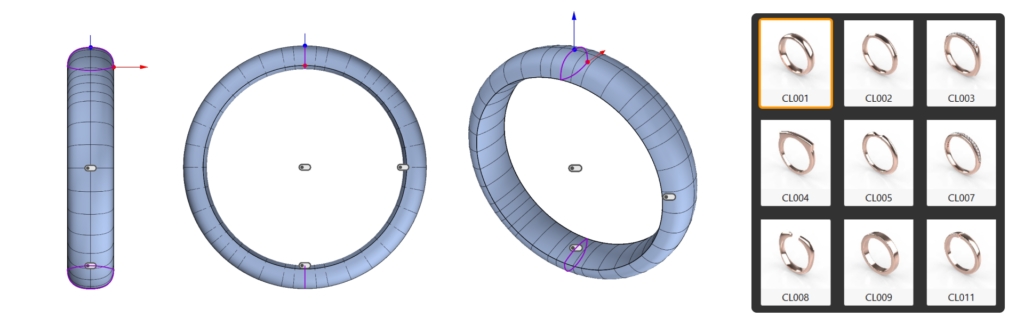

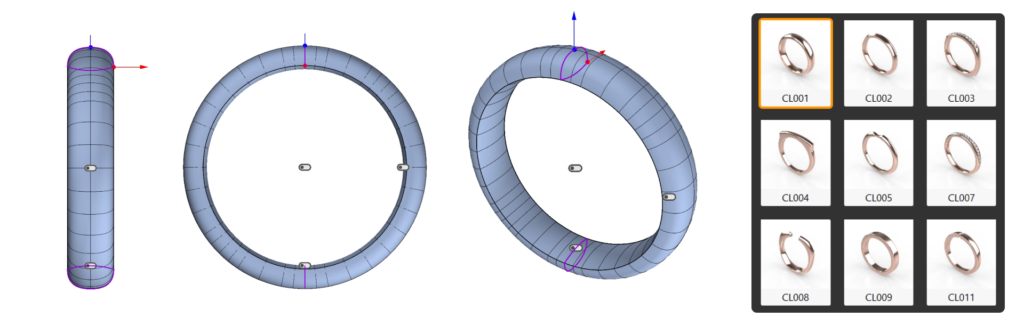

Select element CL01, and click the Pencil button to edit.

Step 3: Display Mode

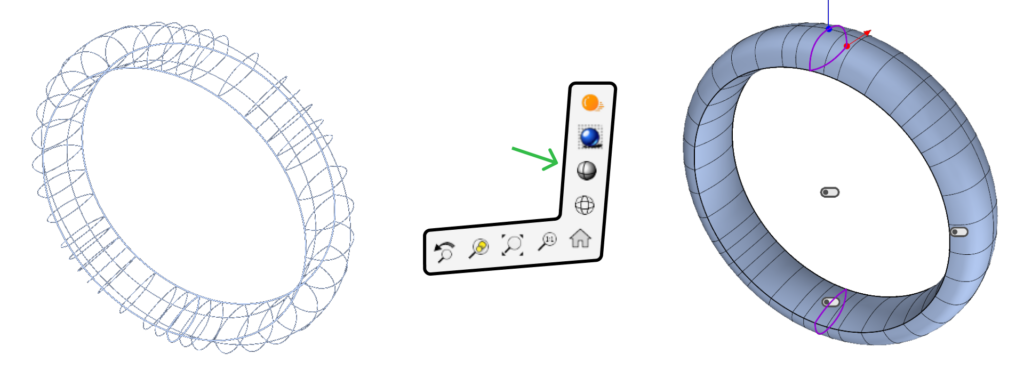

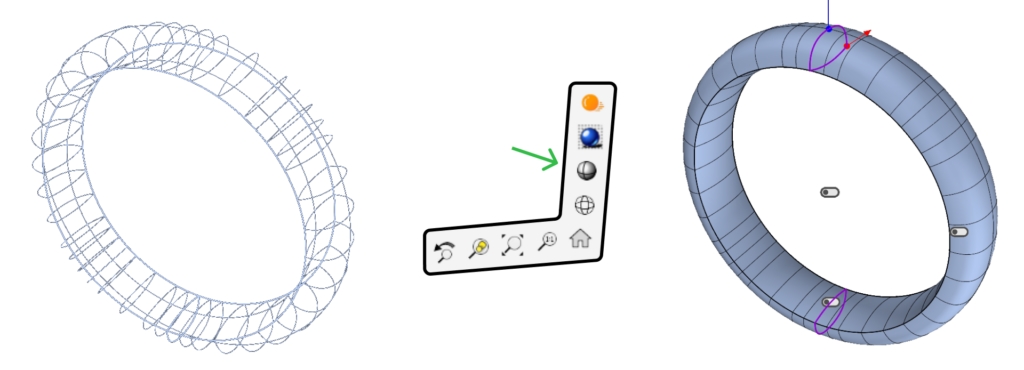

Click on the bottom-right of the viewport and switch to Shaded Display Mode to enhance visualization.

Step 4: Profile Adjustments

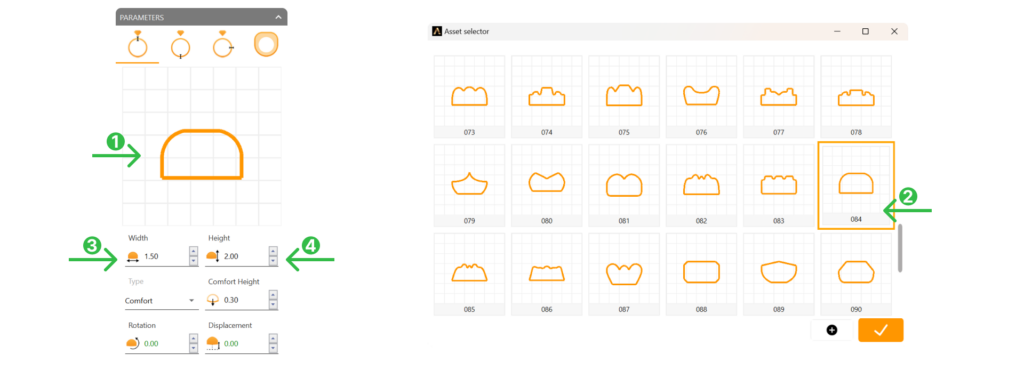

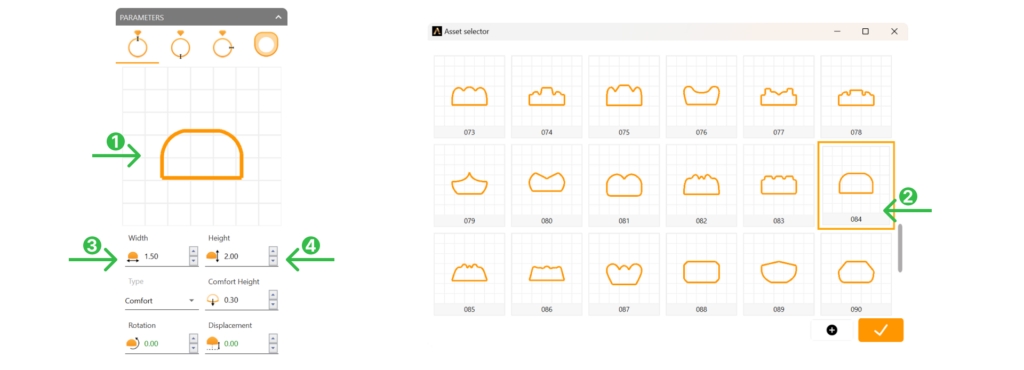

  • Click on the profile preview (1). In the Asset Selector, select Profile 084 (2).

  • Set Width (3) to 1.5mm and Height (4) to 2.0mm.

Step 5: Bottom Profile

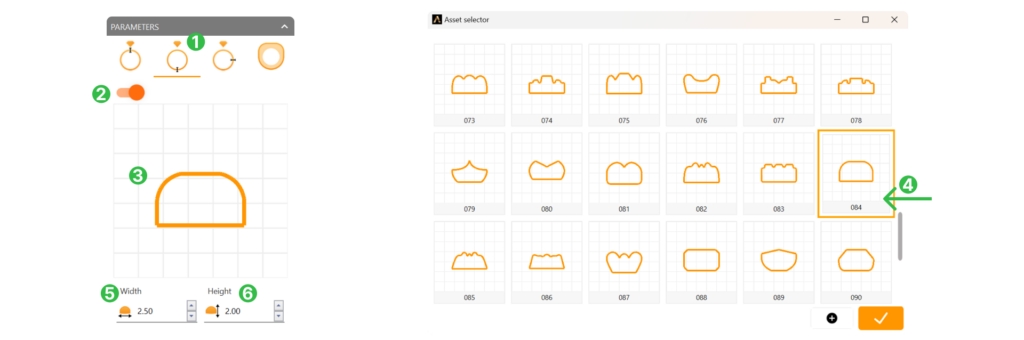

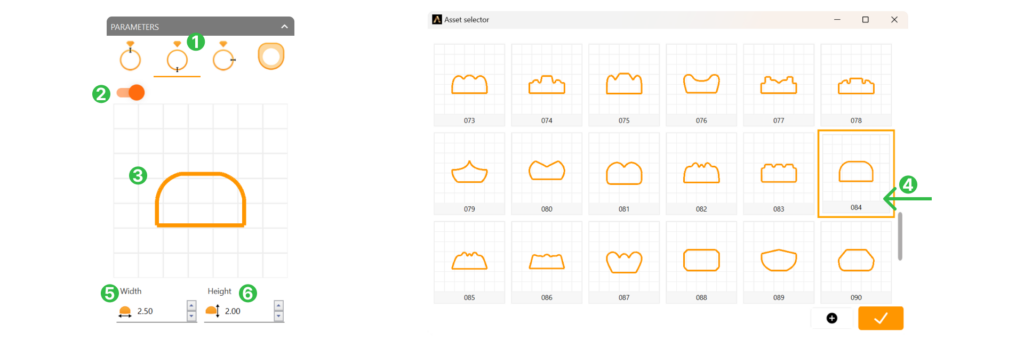

Go to the Bottom Profile tab (1), turn it on (2), click on the profile preview (3) and select Profile 084 (4) in the Asset Selector. Change the width to 2.5mm (5) and land leave height (6) at 2 mm.

Step 6: External Profile

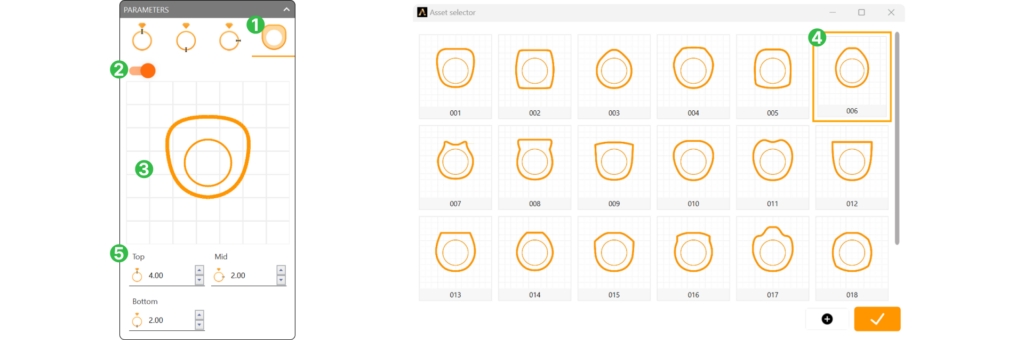

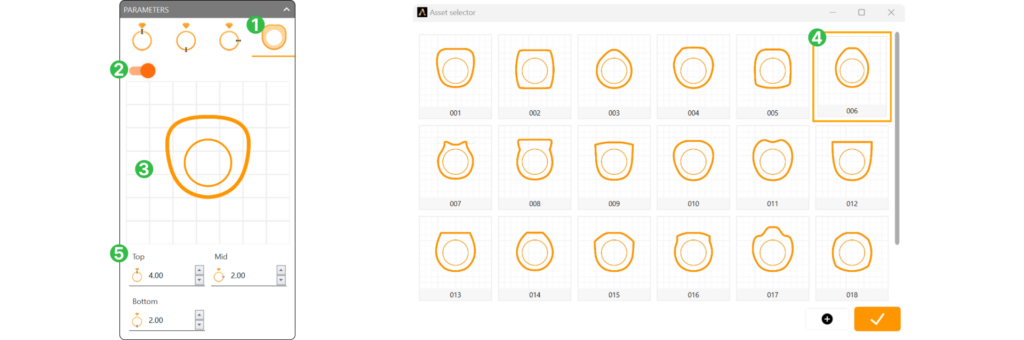

Turn on the External Profile tab, then select Profile 006 in the Asset Selector.

Set Parameters:

  • Top: 4.0mm

  • Middle: 2.0mm

  • Bottom: 2.0mm

Step 7: Finishing

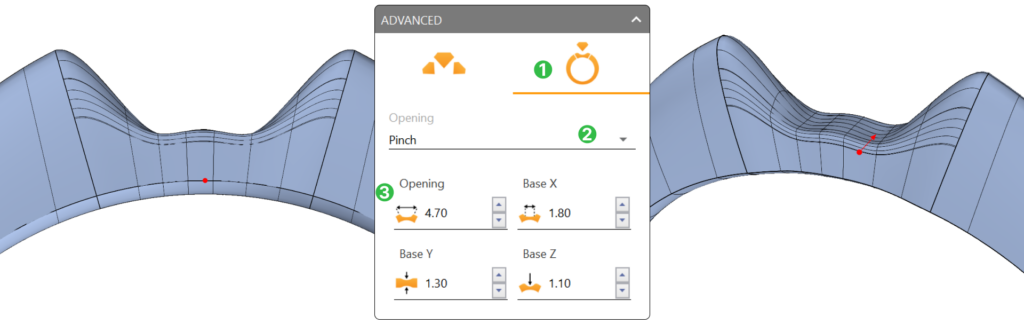

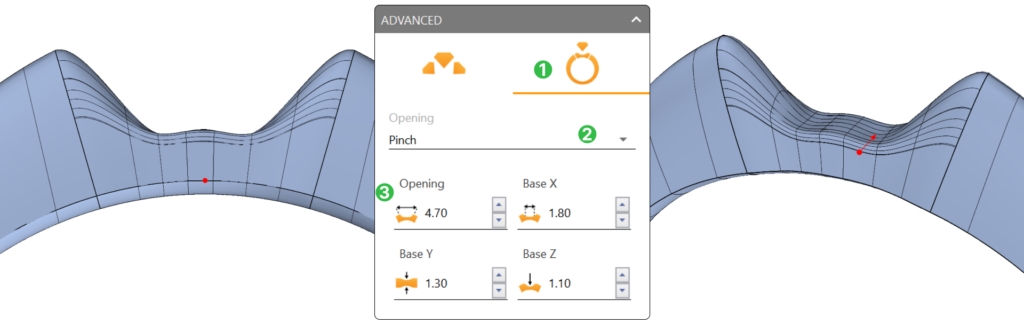

In the Advanced area, go to the Finishing tab (1), select Pinch (2) for the opening, and adjust the following (3):

  • Opening: 4.7mm

  • Base X: 1.8mm

  • Base Y: 1.3mm

  • Base Z: 1.1mm

Step 8: Apply Changes

Click Accept in the top-right to confirm your settings.

Video Lesson

Next Step: We’ll add a diamond and create the basket setting in the next lesson.
