Reference Curve and Gem Positioning

Objective: Set up a reference curve with a 0.35-carat gem.

Step 1: Cueve Shank

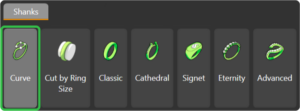

In the Shanks tab, use the Curve command.

Step 2: Ring Size

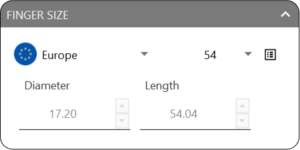

This time, select the European size 54 for the reference curve.

Steps 3: Create the Gem

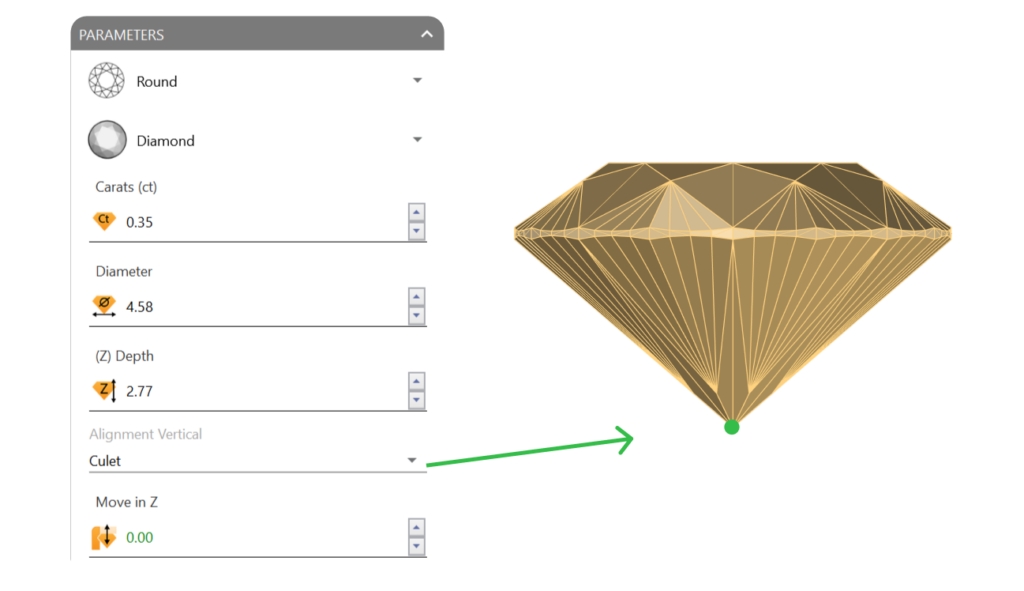

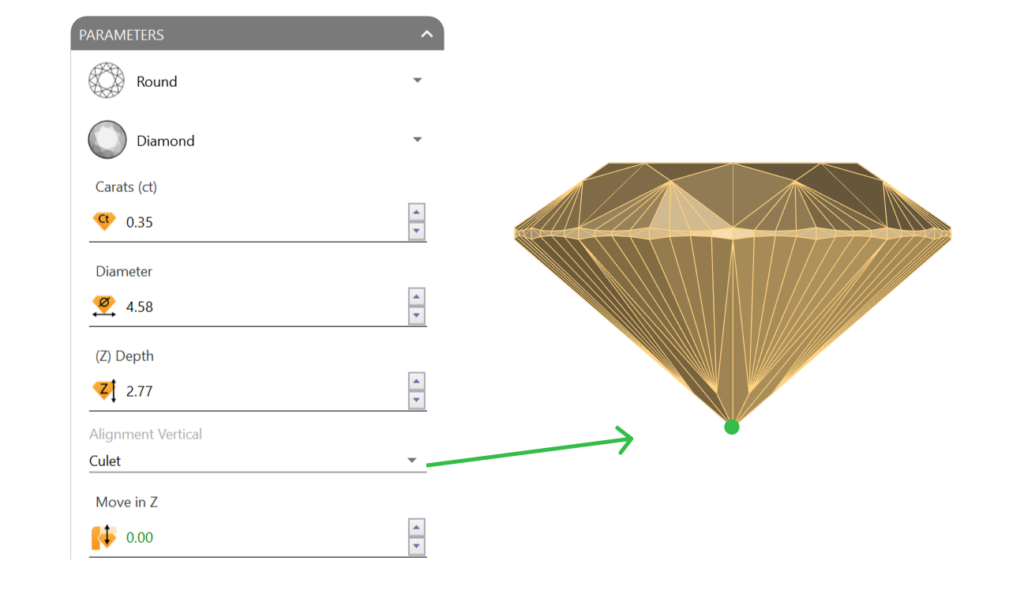

Go to the Diamonds tab and use the Gem Studio command to create a 0.35-carat gem. Change the alignment to Culet.

Steps 4: Gems position

Move the gem to the reference curve:

• Type Move in the command bar.

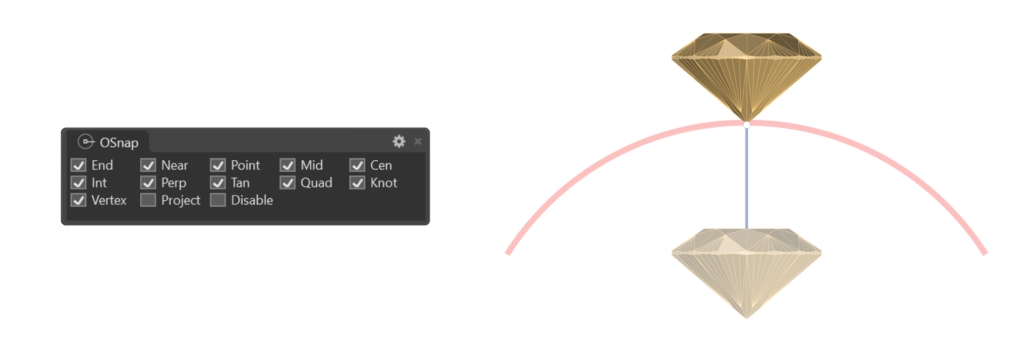

• With the osnap aids enabled, position the gem at the top of the reference curve.

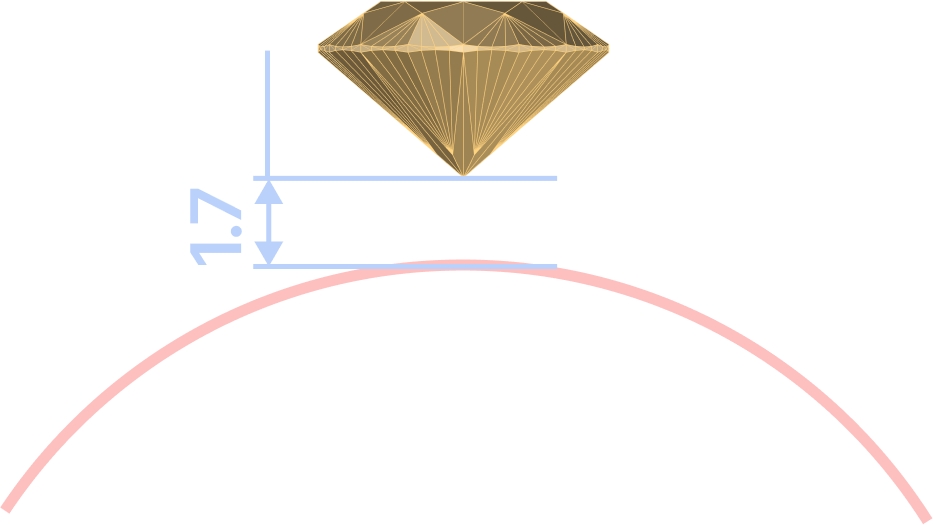

• Using the gumball, move the gem 1.7 millimeters upward from the culet.

Video Lesson

Next Step: Set up the basket for the gem.
