InsertEdge (loop)

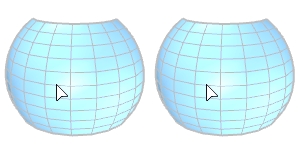

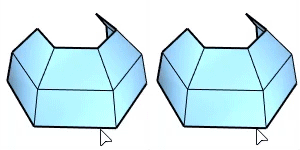

The InsertEdge command inserts edges beside an edge loop (left) or across an edge ring (right) on a SubD or mesh.

  • When edges fail to insert, the defective geometry is marked with a text dot. The secondary text in the text dot properties gives a hint of what should be repaired.

Type

Loop: Insert edges beside the selected edge loop.

  • BothSides: Insert edges on both sides of the selected edge loop.

Ring: Insert edges across the selected edge ring.

Mode

Full: Select an entire edge loop (left) or ring (right) based on the Type option to insert edges.

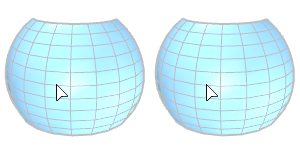

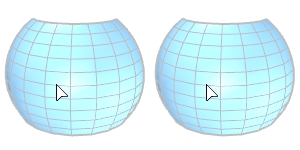

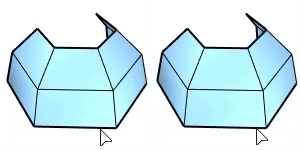

Range: Select the start and end edges in a range of loop (left) or ring (right) based on the Type option to insert edges.

OffsetMode

Proportional: The amount is proportional to each crossing edge length. The input number should be between 0 and 1.0.

Absolute: The amount is same for all edges. The input number is a distance in the model unit.
