Main Gem Rail

Main Gem Rail Tab

Now, we’ll configure the Main Gem Rail Tab.

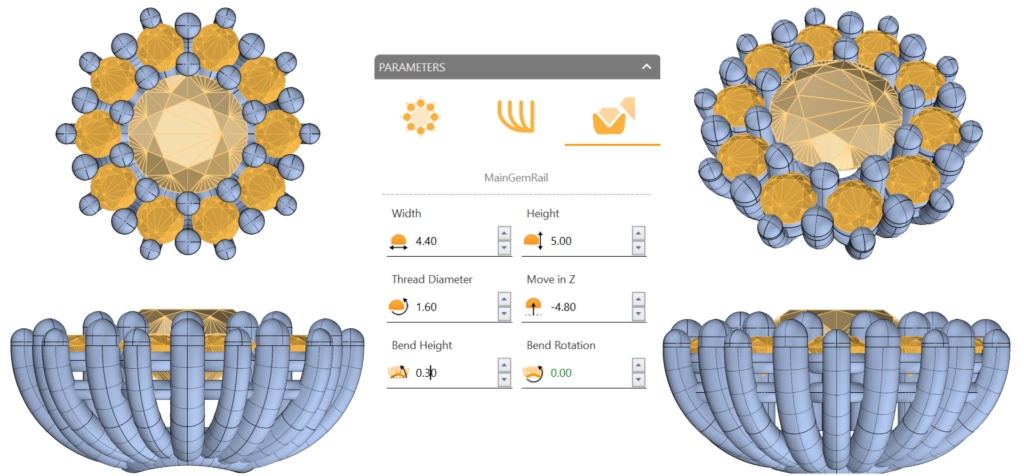

Here are the parameters:

  • Width: 4.4 mm

  • Height: 5 mm

  • Thread Diameter: 1.6 mm

  • Move in Z: -4.8 mm

  • Bend Height: 0.3 mm

  • Bend Rotation: 0

The Bend Height is especially important because it ensures the rail follows the curve of the ring’s inner side. This gives our design a seamless, comfortable fit.
