Second Bridge and Additional Prongs

Complete the round basket by ensuring structural strength.

Second Bridge

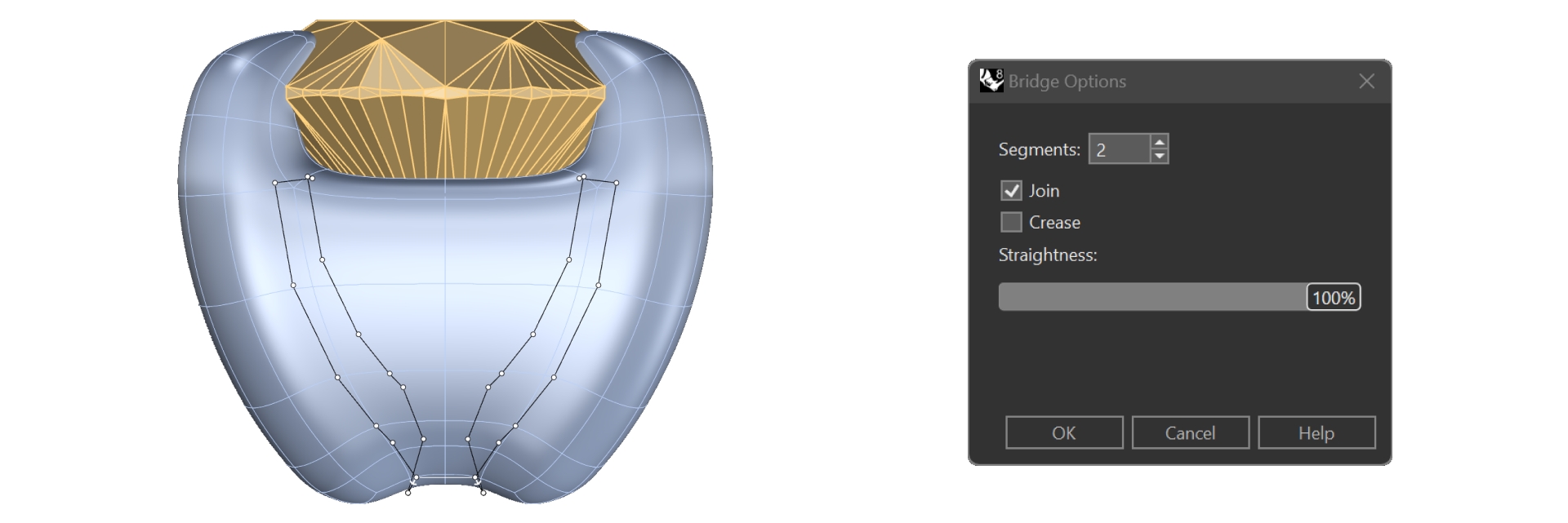

Add a second bridge:

Use the Bridge command on additional faces between prongs.

Set Segment: 2 and repeat for each pair of prongs.

We will do the same on the other side.

Basket Properties

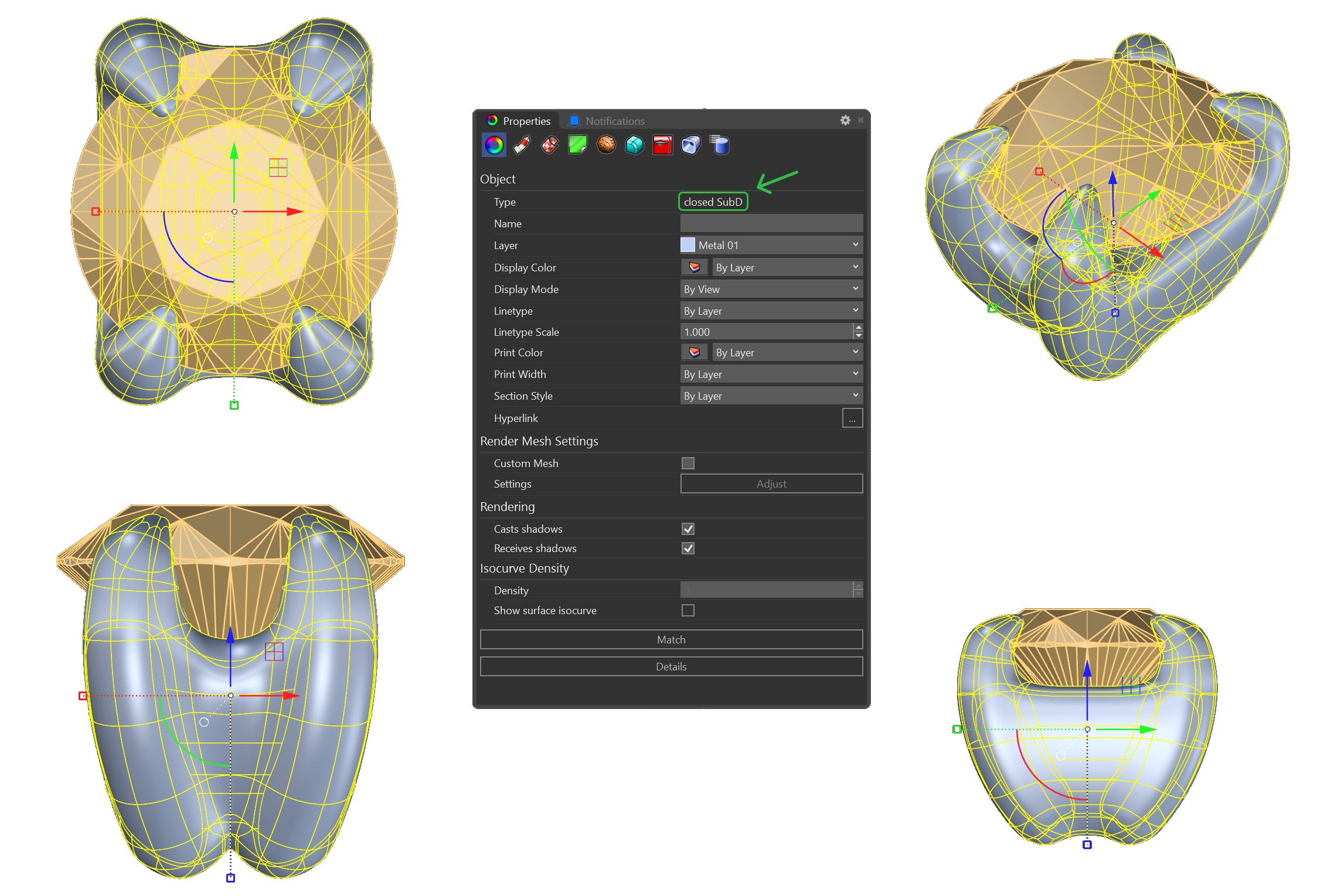

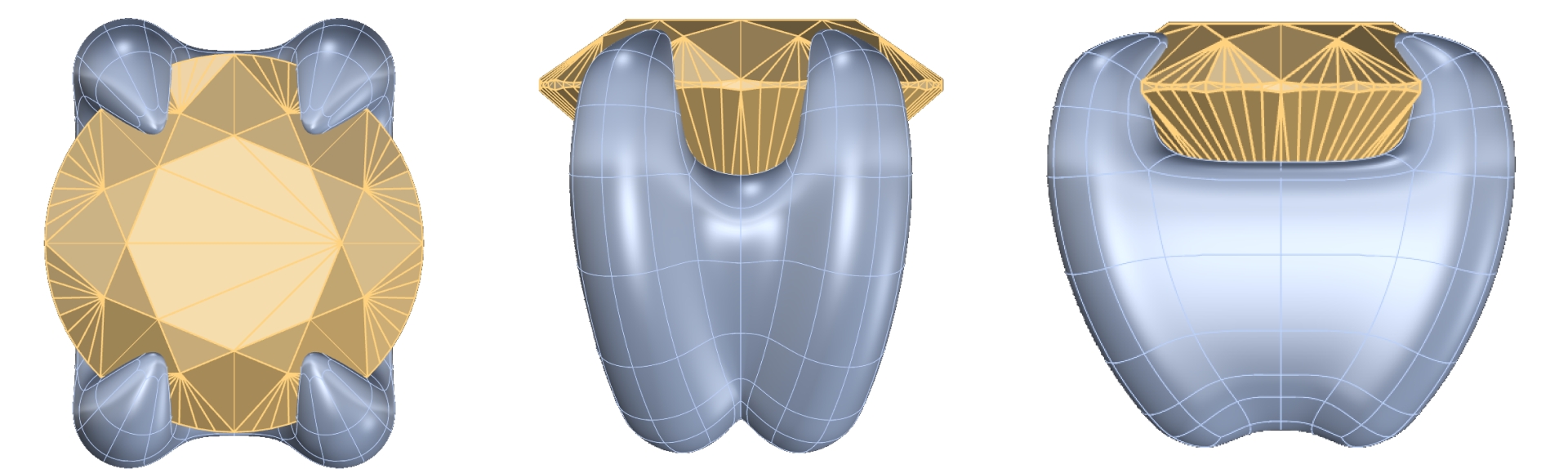

We select the basket and press F3 to view its properties. As we can see, it is a closed SubD. With this, we have finished our second basket.

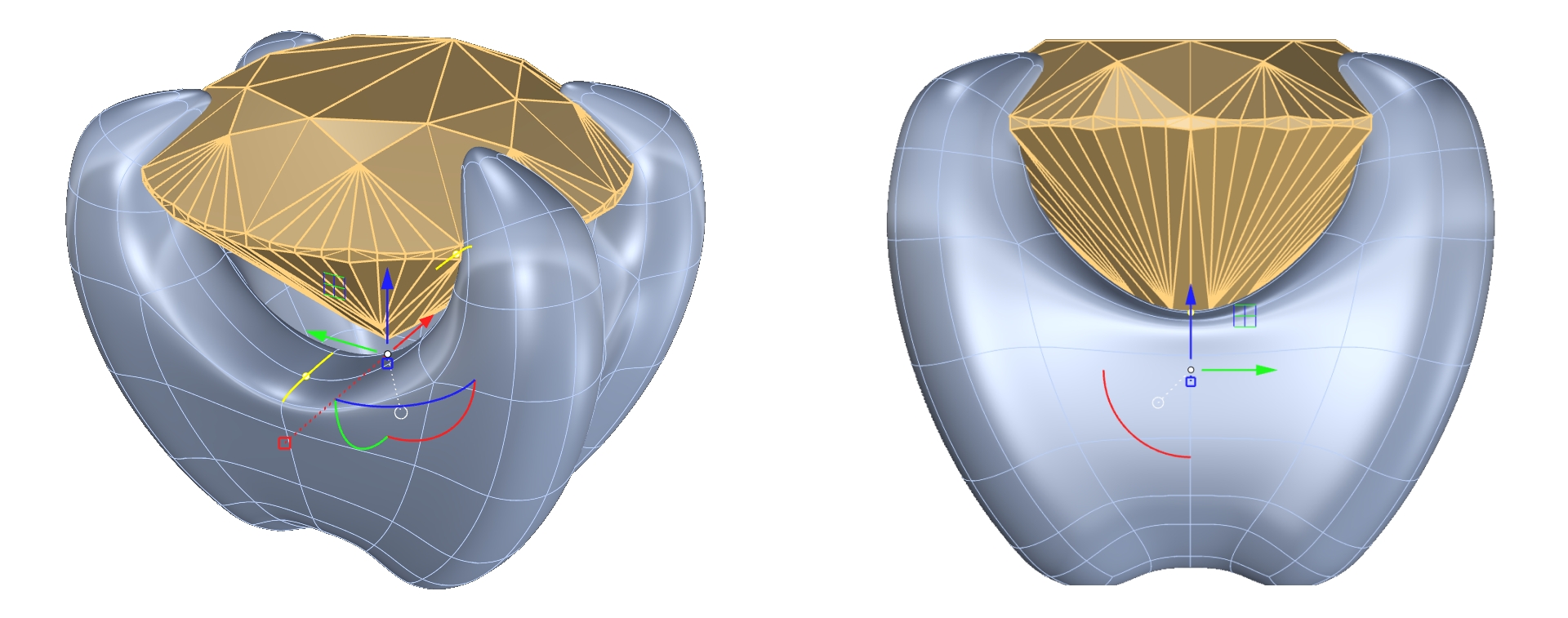

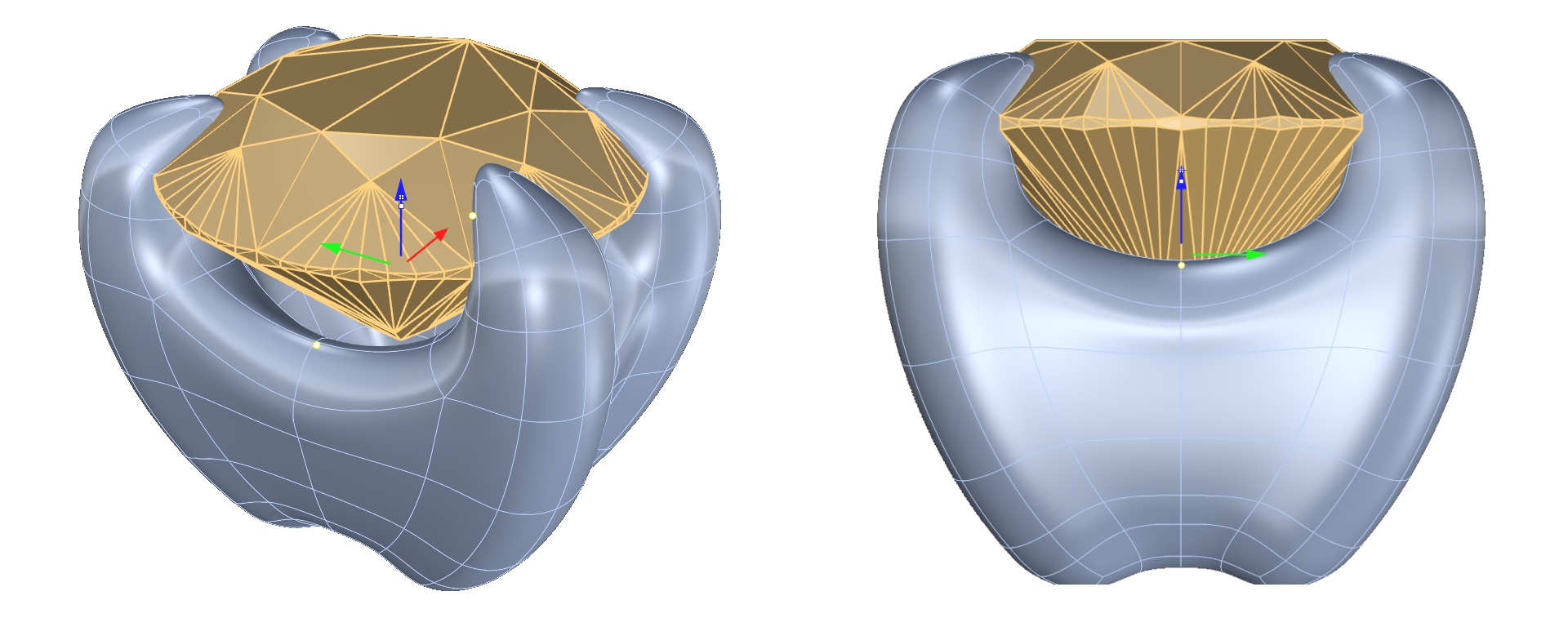

Adjust the bridge

As we did earlier, we will lower the centers of the bridge. To do this:

  • Select the two central points along with their edges.

  • Follow the same procedure: first, lower the points and the edges

Then raise the points slightly to smooth the shape.

Video Lesson

Next Step

Save the round basket in the Curator Panel.
