The Inset command inserts edges by offsetting the edges of selected mesh, SubD, or polysurface faces a certain distance inwards.
Mesh/SubD faces
Surfaces and polysurface faces
Select mesh, SubD, or polysurface faces.
Enter a distance or pick two points to define the distance.
Mode (For multiple SubD faces only)

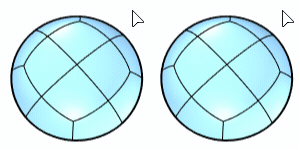

Group (left) insets connected SubD faces as a unit.
Single (right) insets SubD faces individually.
ThroughPoint: Pick a point for the inset curve to pass through.
Loose: Loose=On does not refine the inset curves to be in the system tolerance as Loose=Off does. The refinement process could be time consuming so the preview uses Loose=On to speed up.
IgnoreSeams: Ignores the seam of the input surface.
a) Input, b) IgnoreSeams=No, c) IgnoreSeams=Yes
Split: Splits the input surface; otherwise creates the inset curves only.
JoinOutputs: When Split=Yes, specifies whether the resulting surfaces will be joined.
