What It Does
Generate Dimensions is a one-click tool that extracts and displays the key measurements of a ring design. It is intended to streamline the dimensioning process and ensure consistency across technical documentation and client reports.
Once the command is activated, RhinoArtisan automatically analyzes the geometry of the ring and generates the following dimensions:
Ring size diameter
Width and height of the lower shank section
Height of the shank at mid-point
Width and height of the central motif (head)

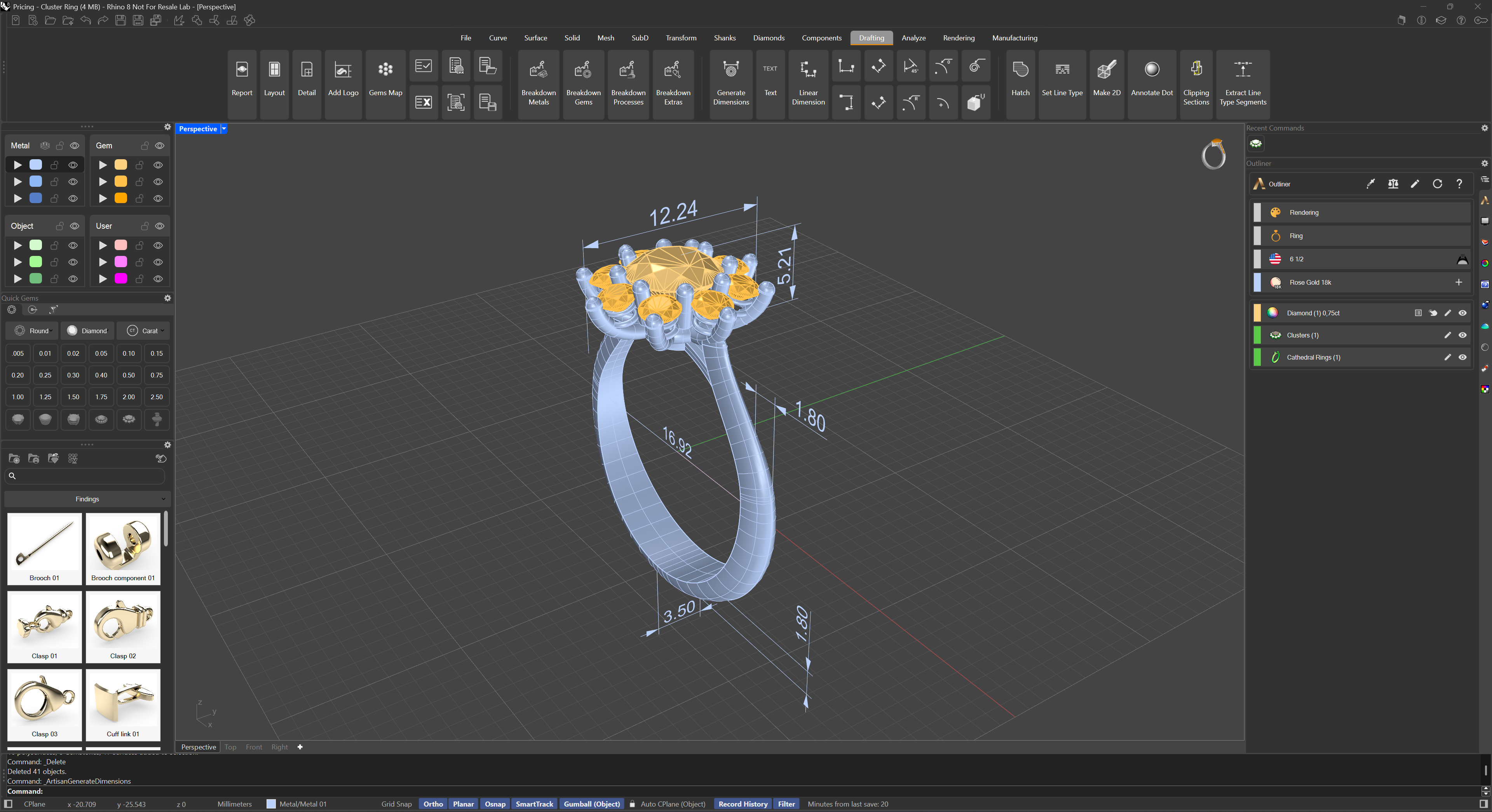

The measurements appear directly in the viewport as standard Rhino dimension objects, placed clearly around the ring.
The dimensions generated by this command can be included in design reports, adding technical clarity for clients, collaborators, and production teams. This eliminates the need for repetitive manual measurements and enhances the professionalism of documentation.
Whether you're preparing a client presentation or a manufacturing file, Generate Dimensions offers a fast, reliable way to produce informative and visually clean outputs.
