Draw the reference curve for the round basket using the three-point arc method.
Last updated
Was this helpful?
Draw the reference curve for the round basket using the three-point arc method.
Last updated
Was this helpful?

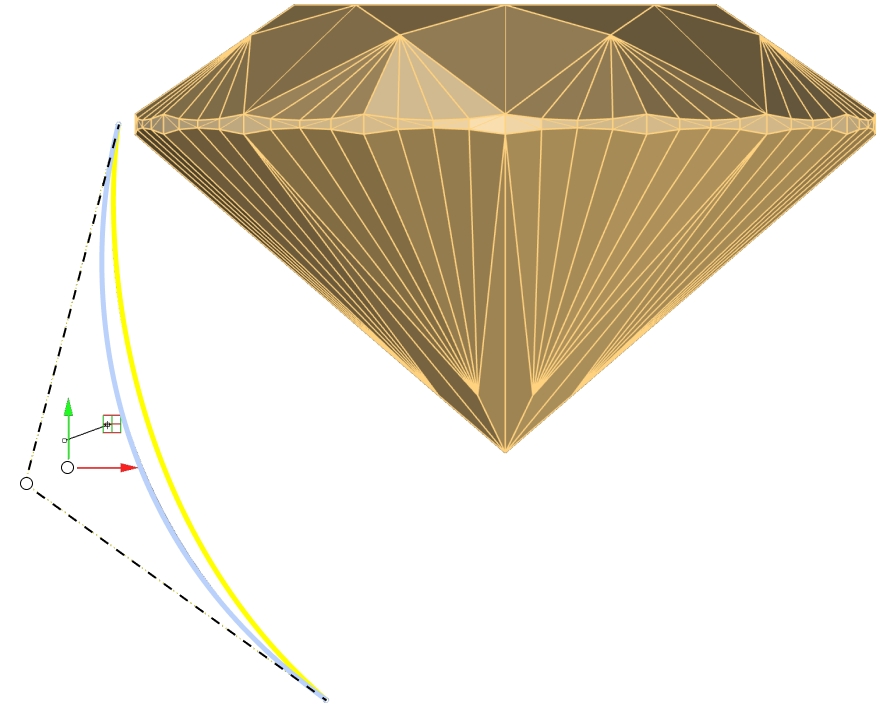

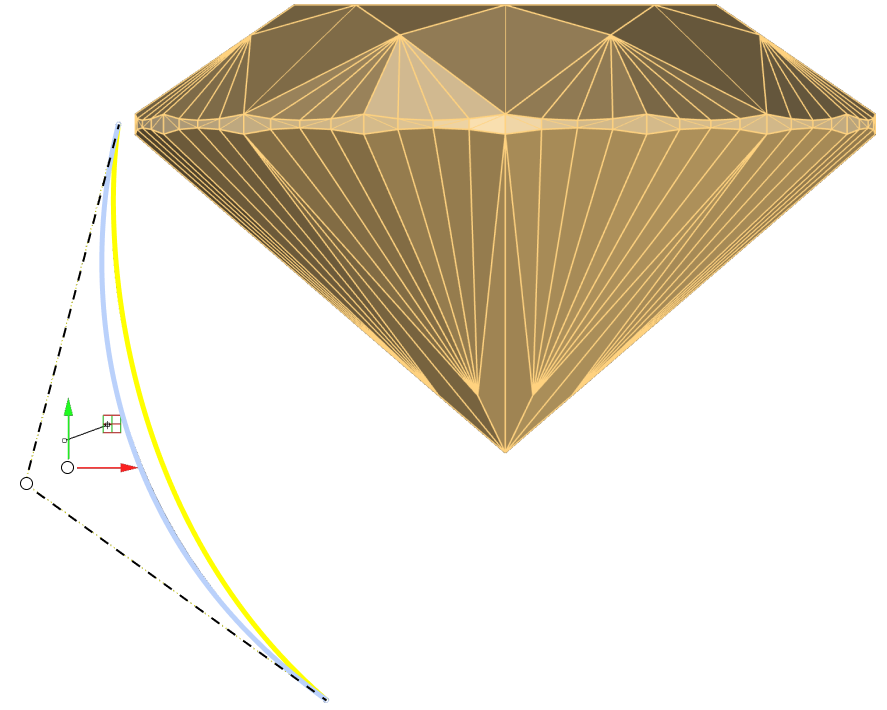

Go to the Curve tab and select the Arc by Three Points command.
In the Front View:
Place the first point slightly left of the gem along the X-axis.
For the endpoint, count three squares downward and one square toward the Z-axis.
Adjust the curve with the third point to achieve the desired shape.
Design the prong for the round basket.
