Gem Studio

Objective: Add and position the Marquise diamond.

Step 1: Gem Studio

In the "Diamonds" tab, use the "Gem Studio" command.

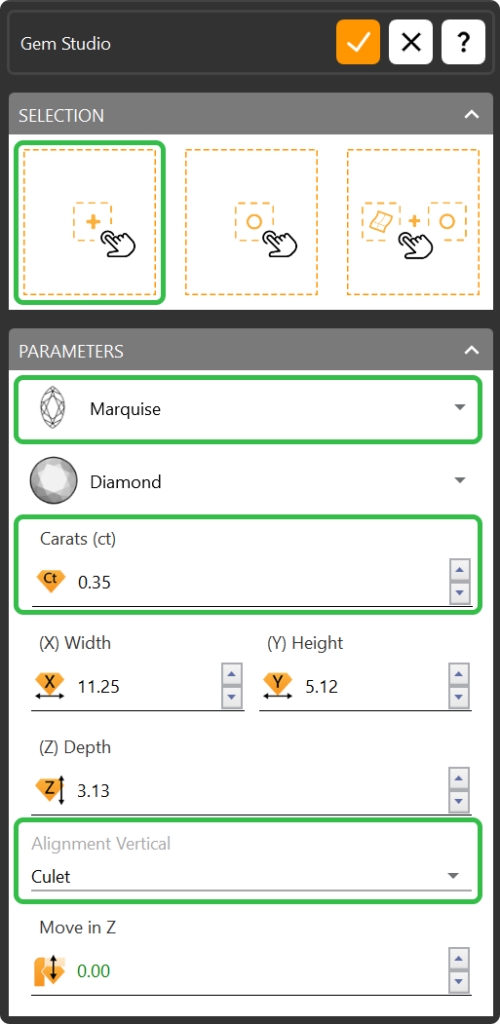

Step 2: Gem Parameters

Create a 0.35-carat, marquise stone. For vertical alignment, set the option to "Culet" and click "Add."

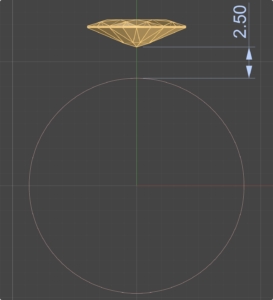

Steps 3: Gem Pose

Using the Gumball, move the gem 11.175 millimeters upwards. In a size 7 ring, this will position it 2.5 millimeters above the top point.

Video Lesson

Next Step: Create and adjust the bezel for the Marquise diamond.
