Create the Shank

Objective: Design the shank that holds the peg head setting.

Step 1: Advanced Shank

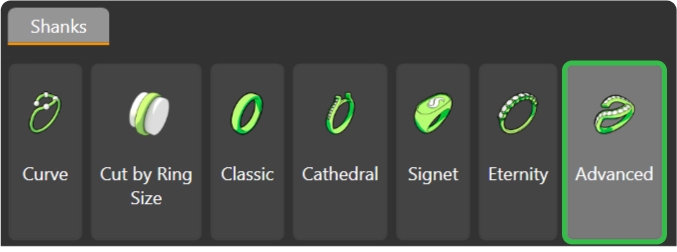

Go to the Shanks tab and use the Advanced command.

Step 2: Advanced Library

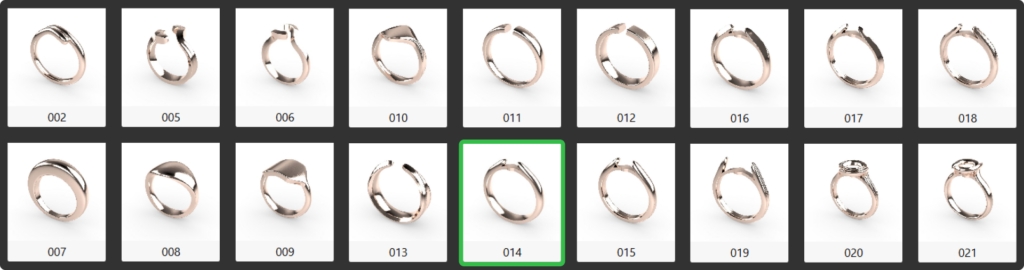

Select element 014, click on edit.

Step 3: Ring Adjustment

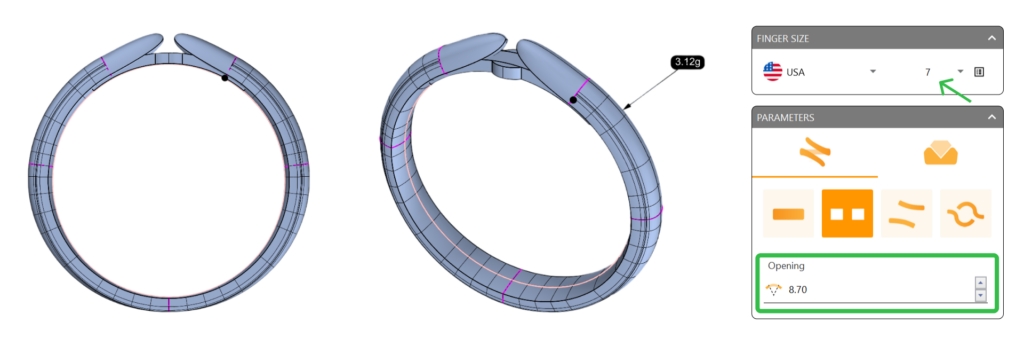

Ensure the size matches the reference curve by selecting "United States of America" and setting the size to 7. Change the Opening to 8.70 millimeters.

Video Lesson

https://www.rhinoartisan.com/wp-content/uploads/2024/07/2_L3.mp4www.rhinoartisan.com

Next Step: Modify the profiles of the shank for added comfort and aesthetics.
