Shank Profiles

Objective: Refine the profiles of the shank.

Step 1: Edit the Shank

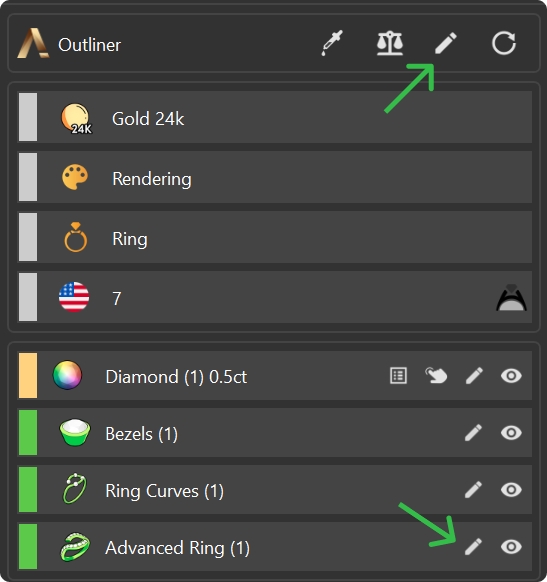

Select the shank, then click on Edit and go to the 'Profiles' tab.

Step 2: Adjust the Profiles

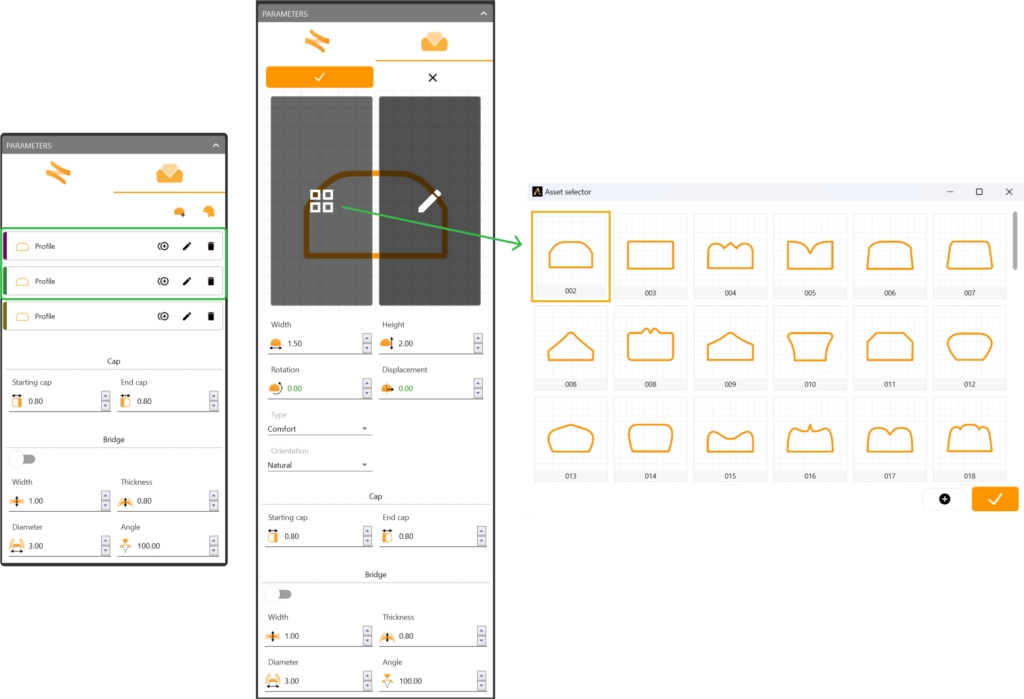

Adjust the first and second profiles.

  • Change the curve to profile 002 for both.

  • Keep the default parameters.

Step 3: For the third (bottom) profile

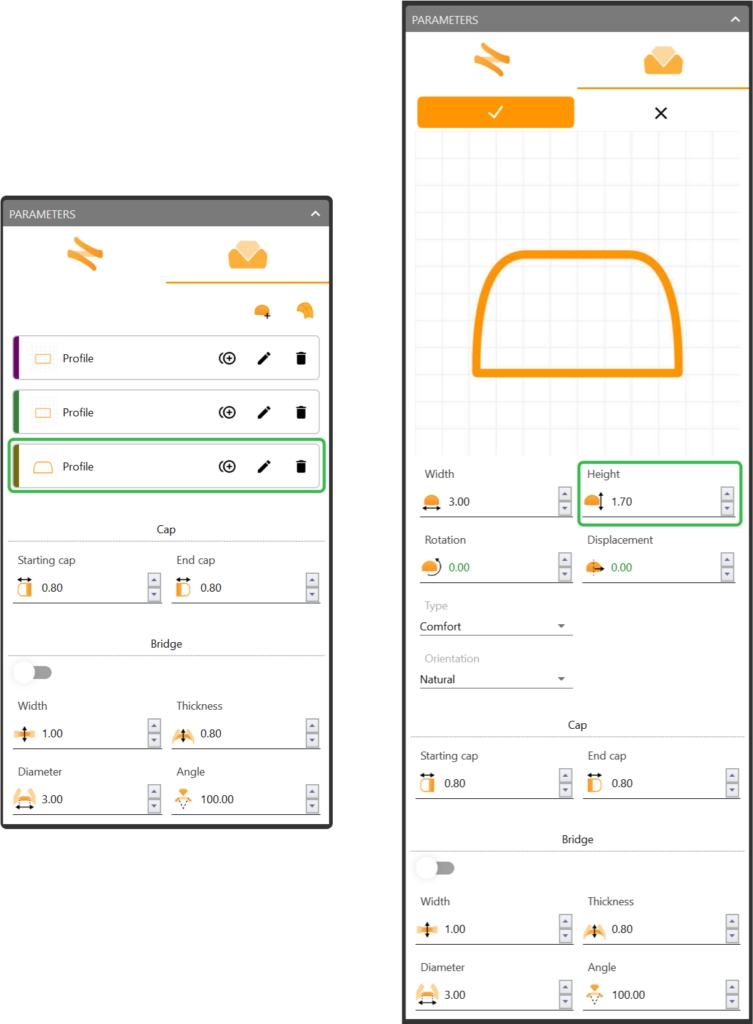

  • Leave the curve unchanged but adjust the height to 1.7 millimeters.

Video Lesson

Next Step: Add final details to the bezel.
