Preparation and Positioning

Align the cushion and round baskets and prepare for shank creation.

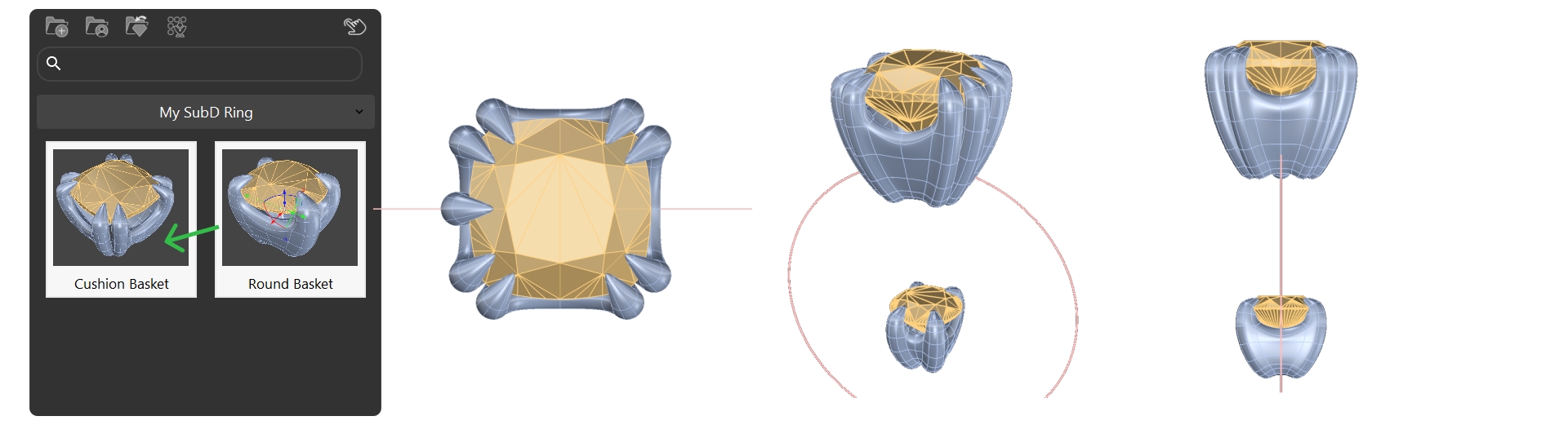

Use Curator

Click on the baskets saved in Curator to add them to the viewport. If you already have the Round Basket, add only the Cushion.

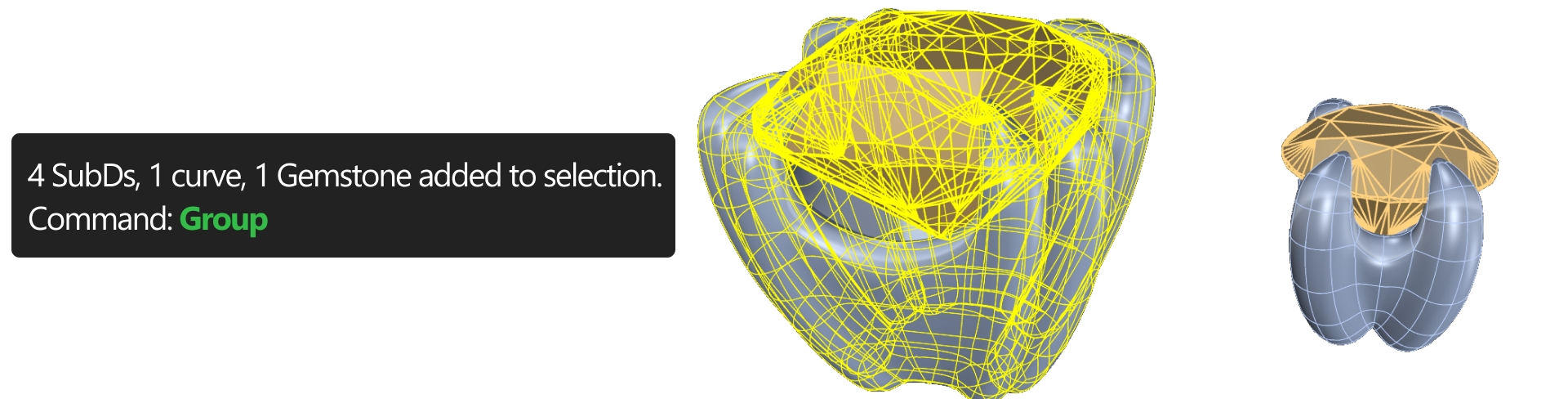

Group elements

  • Select all elements of the cushion basket and group them using the Group command, type group in the command prompt and press enter.

  • Repeat the grouping process for the round basket.

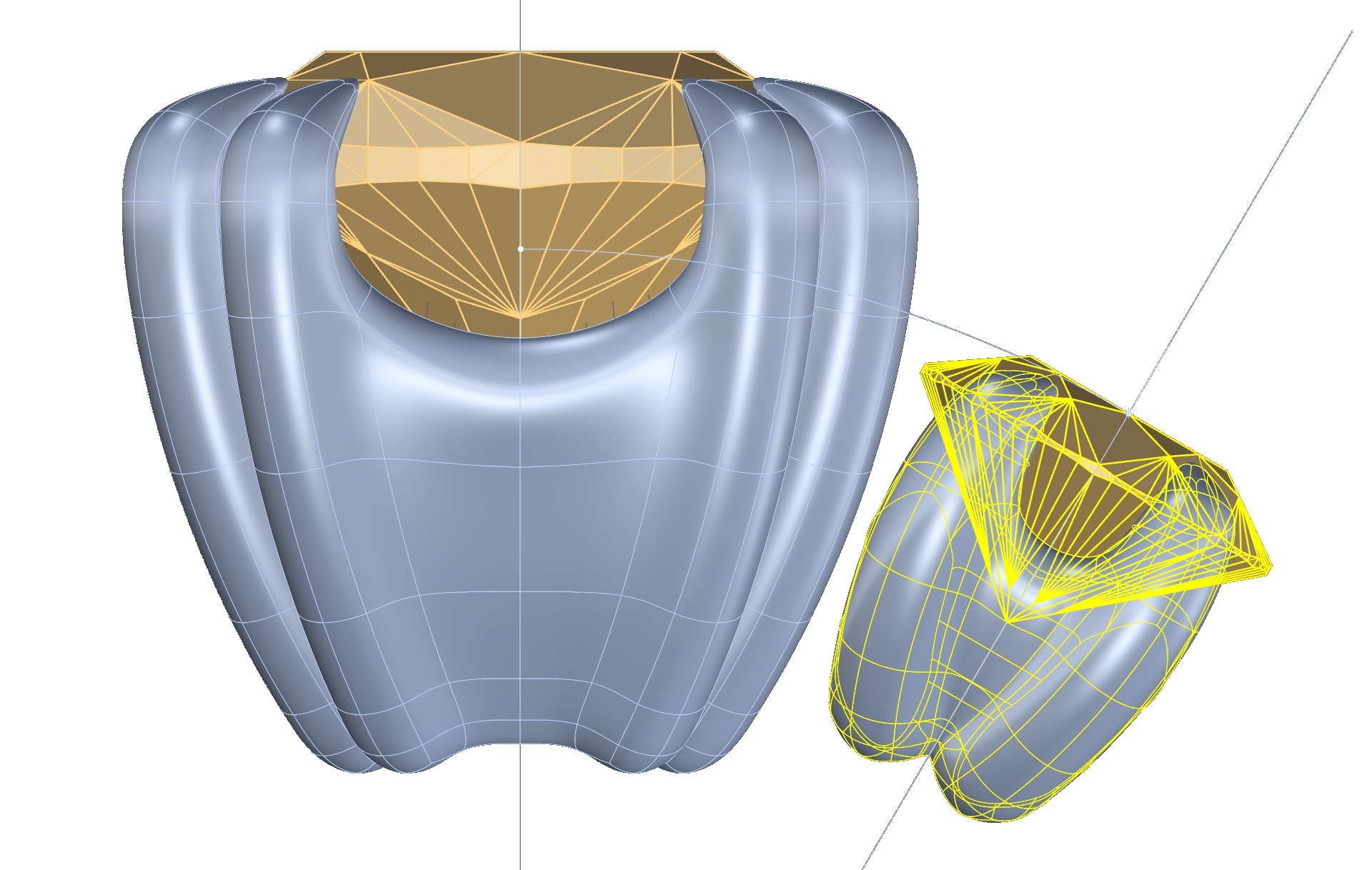

Position the round basket

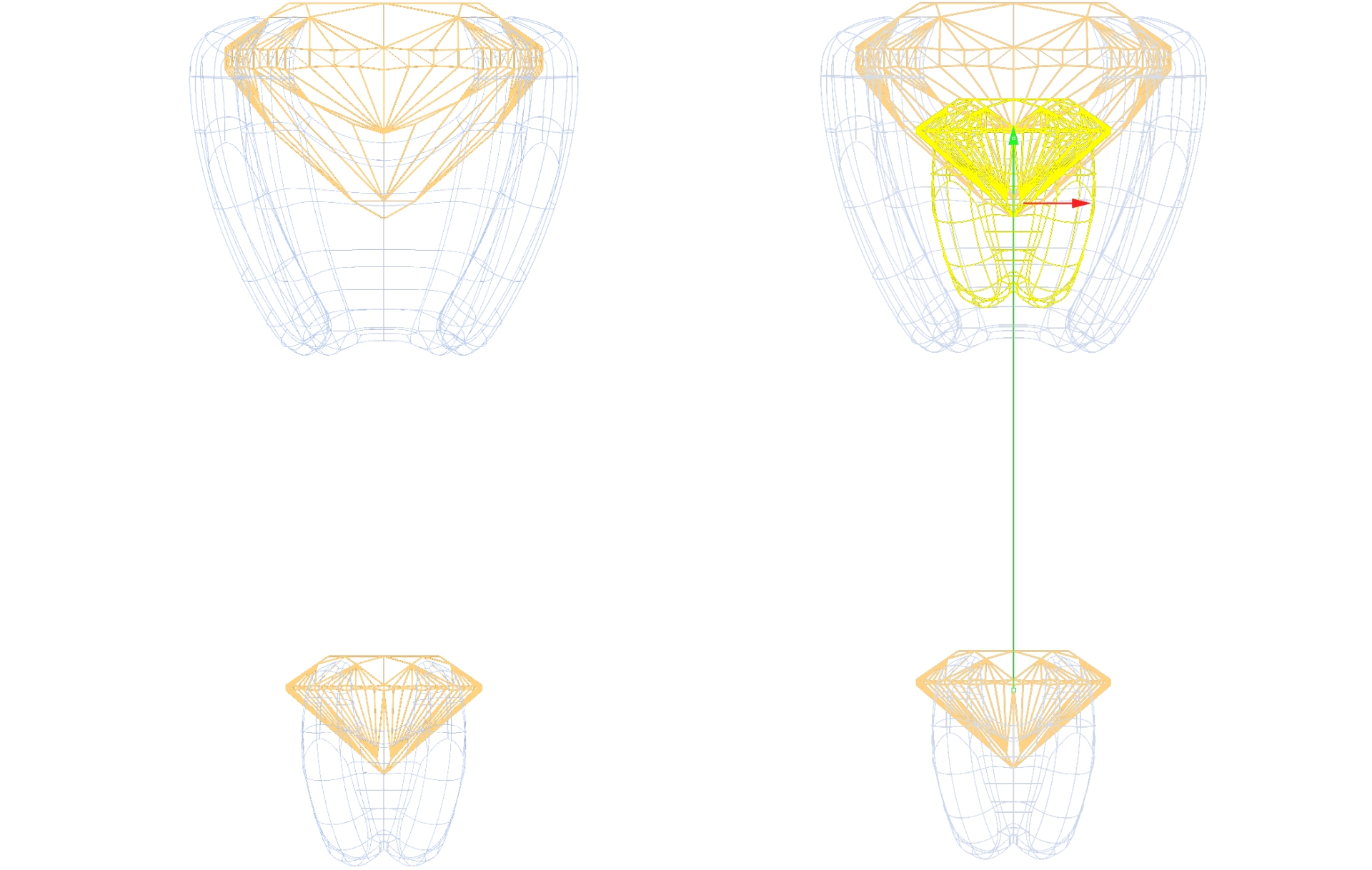

  • Switch to Wireframe View in the Front View.

  • Use the Gumball to align the round basket so its gem culet matches the cushion gem's culet. Hold alt to create a copy.

Rotate Command

Rotate the round basket using the Transform > Rotate command.

Select 0 as the rotation axis and align using the Project option in Osnap.

Ensure no overlap between the baskets.

Video Lesson

Next Step

Connect the baskets with bridges.
