Place Gem

Objective: Position the gem correctly on the reference curve for proper alignment.

Step 1: Osnap Options

Ensure the Osnap options "Vertex" and "Mid" are enabled.

Step 2: Move Command

In the transform tab, selecct the Move command.

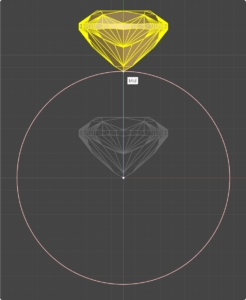

Step 3: Pose

Then select the bottom vertex of the gem and move it to the top of the reference curve.

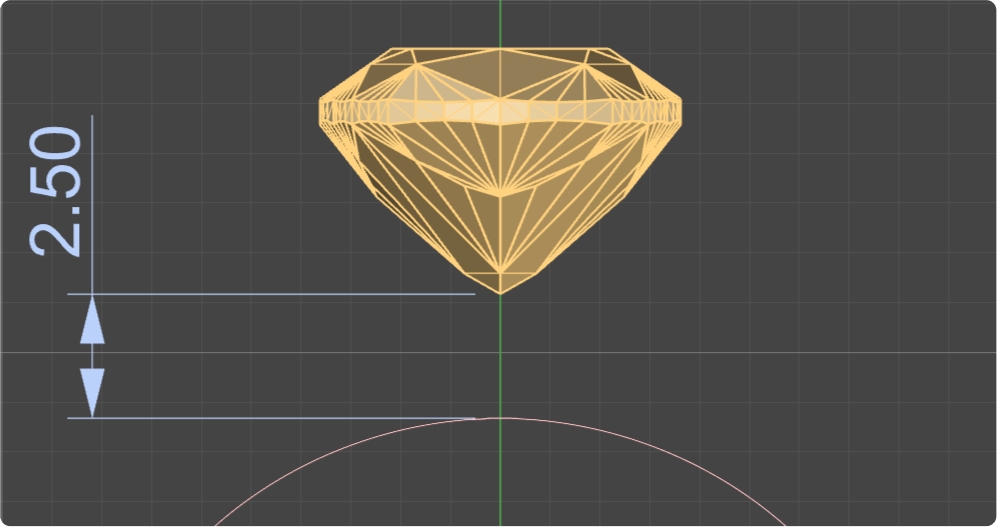

Step 4: Using the gumball

Using the gumball, move the gem 2.5 millimeters upwards for proper height.

Video Lesson

Next Step: Add the basket setting to secure the gem.
