Create the Basket

PreviousReference Curve and Gem NextBasket Rails

Last updated 13 days ago

Step 1: Basket Command

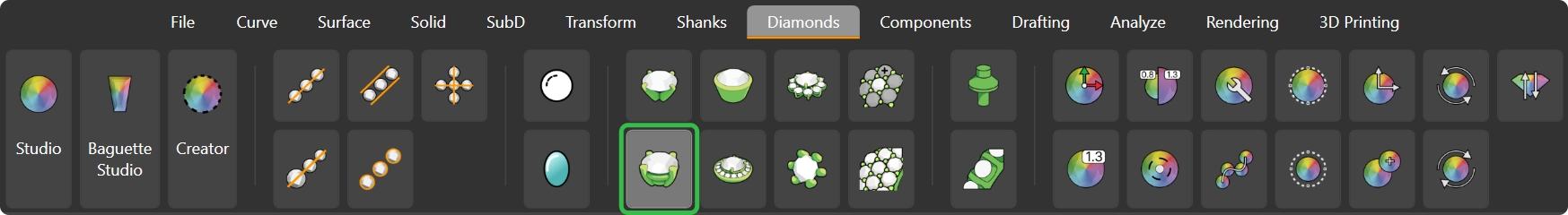

In the "Diamonds" tab, select the gem and choose the Basket command.

Step 2: Basket Library

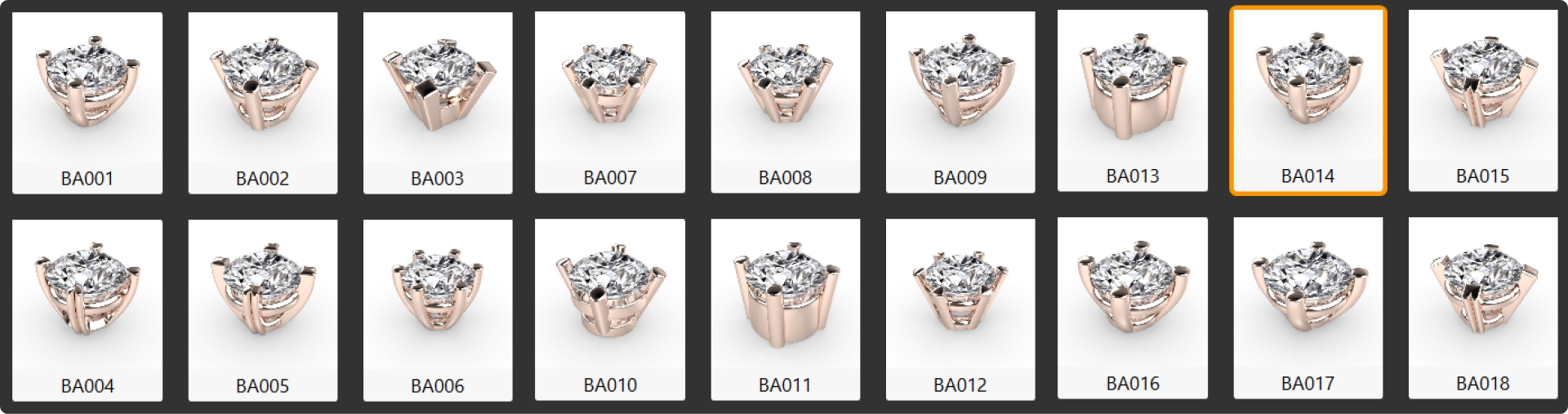

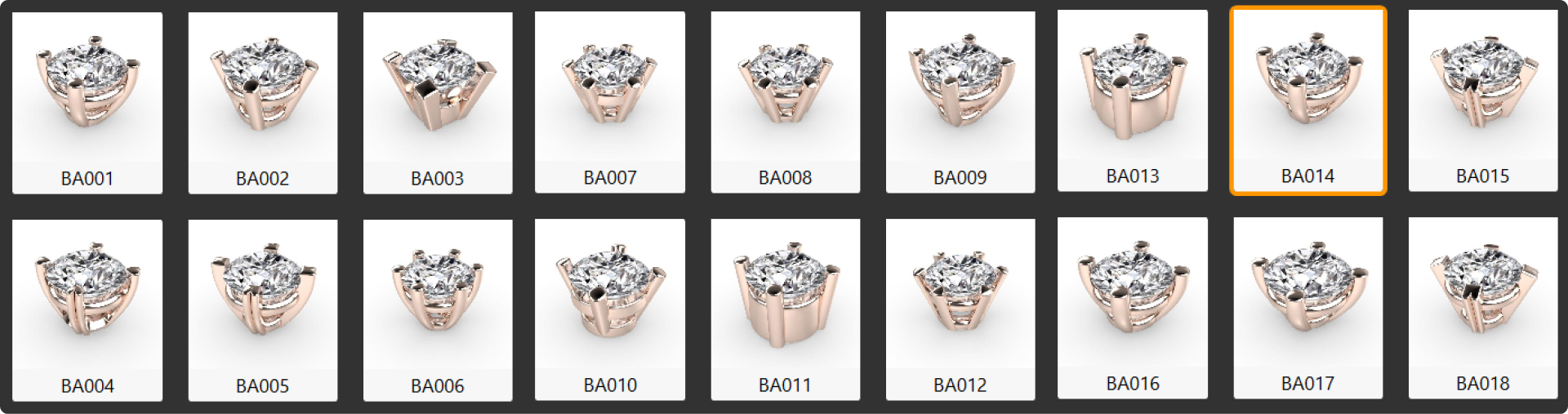

Choose the BA014 basket model and press Edit.

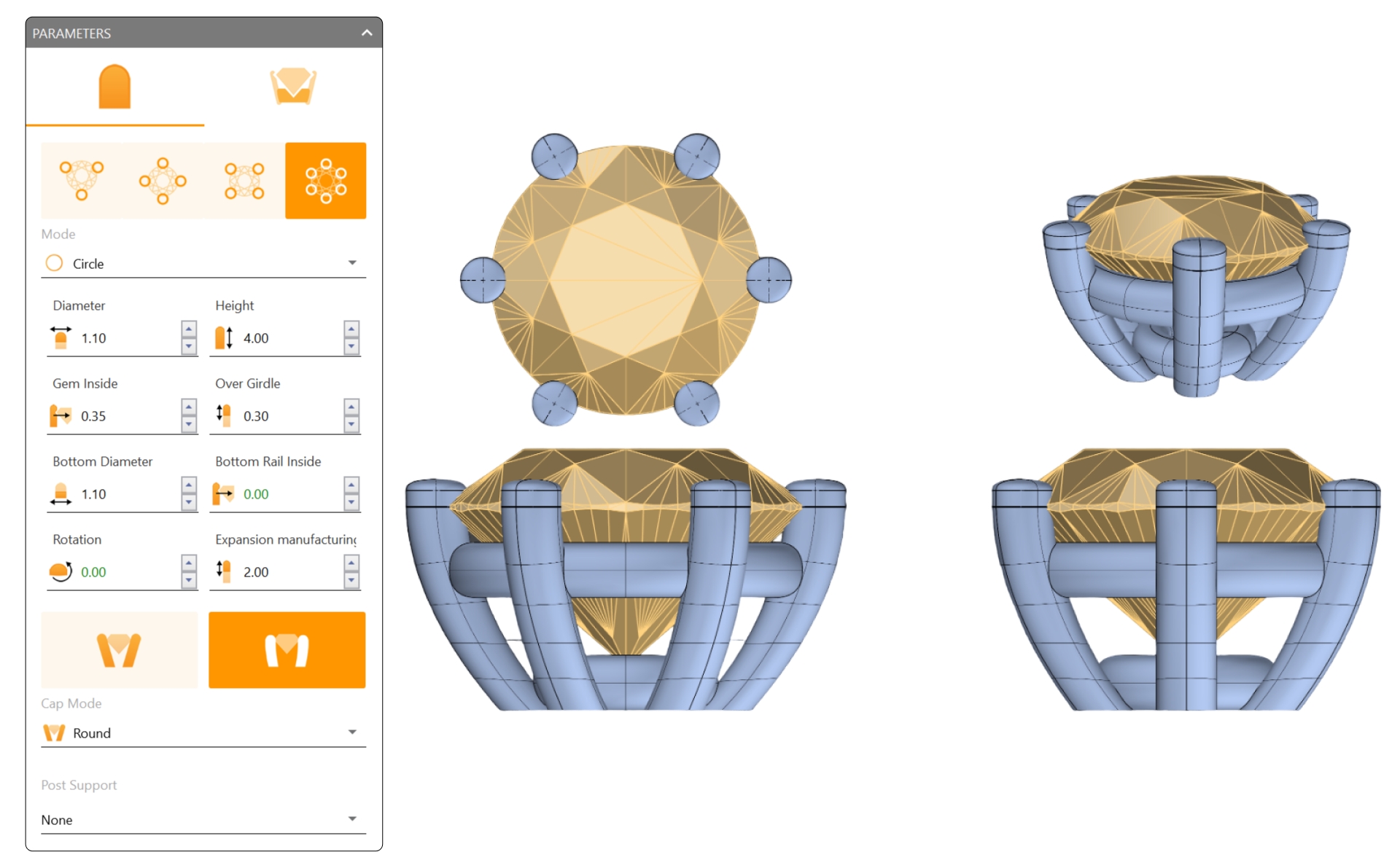

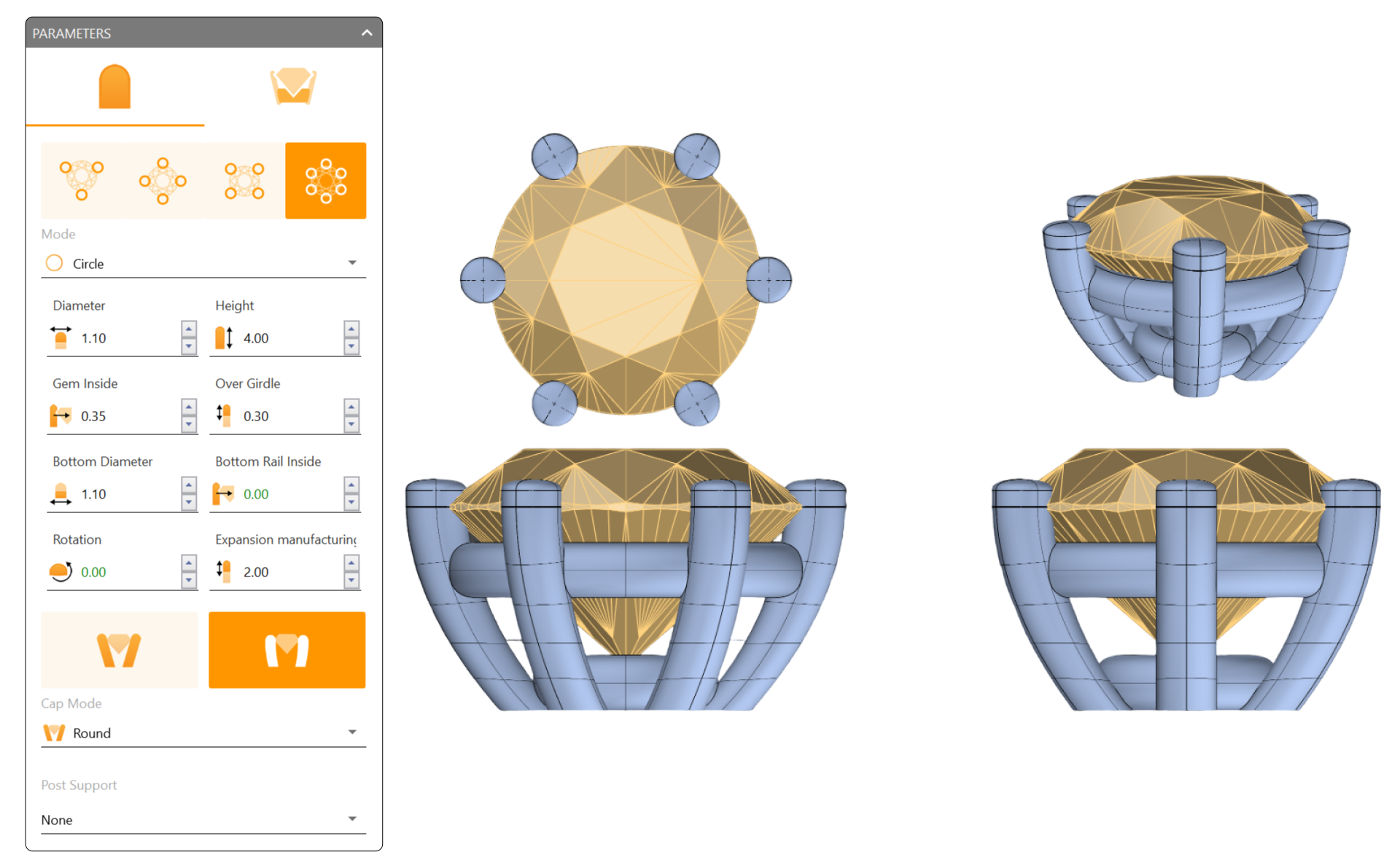

Step 3: Modify the following parameters:

Set Prongs to 6.
Mode: Circle
Diameter: Leave the default at 1.10 millimeters.
Height: 4 millimeters
Gem Inside: 0.35 millimeters
Over Girdle: 0.30 millimeters
Bottom Diameter: 1.1 millimeters

Video Lesson

Next Step: Adjust the rails of the basket for stability.
