Gem Setting: Bezel

Objective: Create and adjust the bezel setting for the marquise stone.

Step 1: Bezel Command

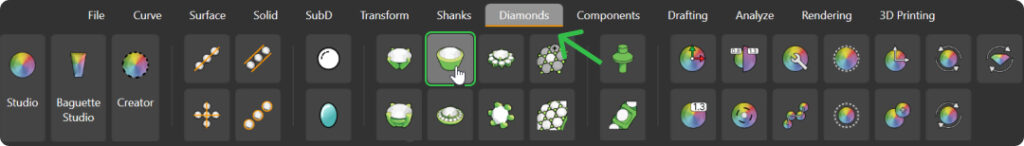

In the "Diamonds" tab, select the Gem and then the "Bezel" command.

Step 2: Bezel Library

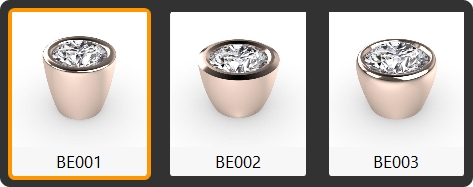

Choose the BE001 model and click "Edit."

Step 3: Parameters

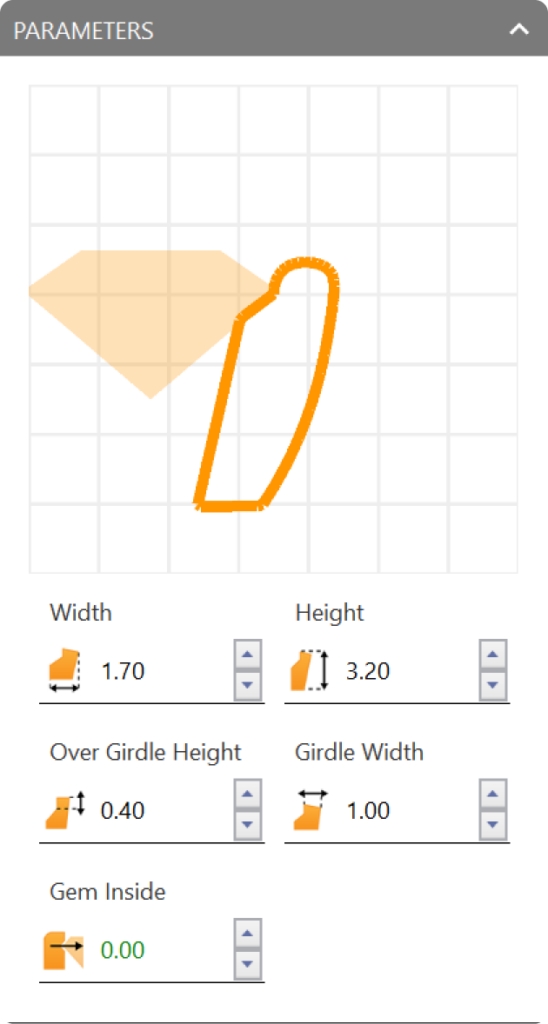

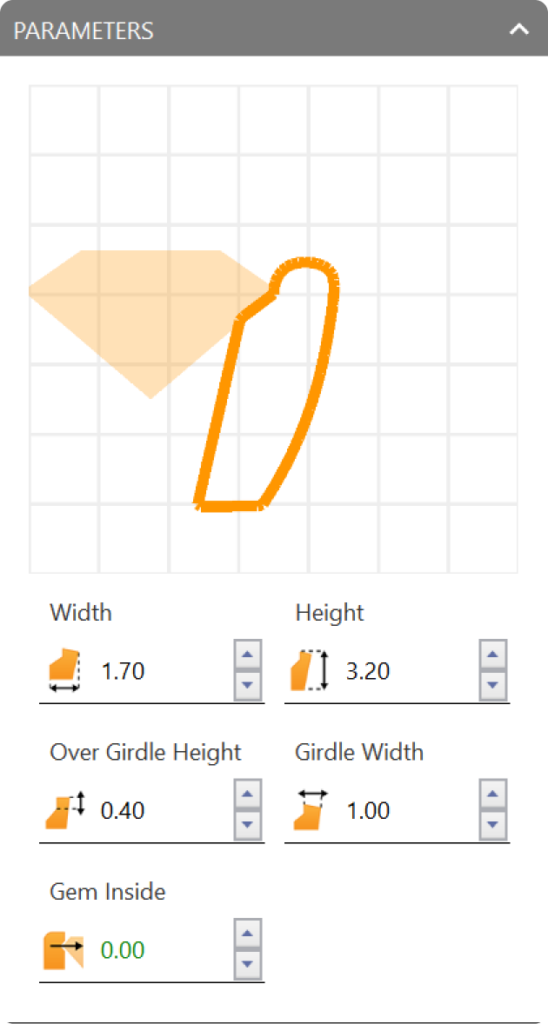

Adjust the following parameters

  • Height: 3.20 millimeters.

  • Over Girdle Height: 0.40 millimeters.

  • Gem inside: 0.

Step 4: Cutter and Airgap

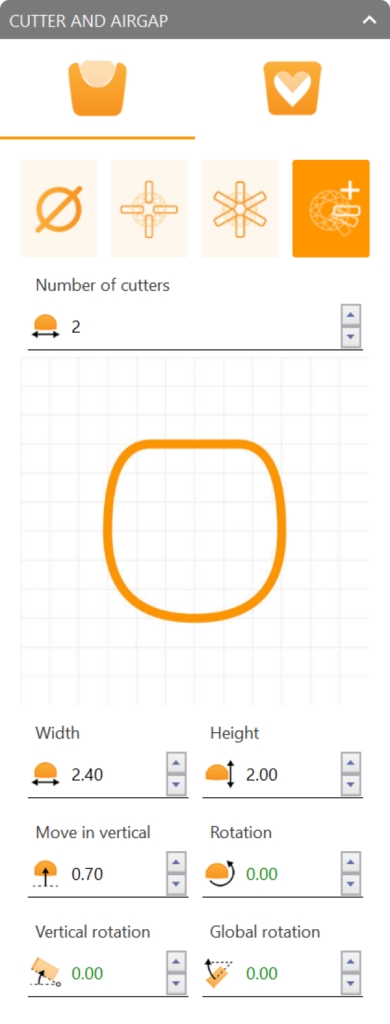

In the "Cutter and Airgap" settings, select the fourth cutter option, set the number of cutters to 2, and choose profile curve 001.

Adjust additional parameters:

  • Width: 2.40 millimeters.

  • Move in vertical: 0.70 millimeters.

Video Lesson

Next Step: Rotate the gem and bezel to start creating the fantasy design.
