Peghead Setting

Objective: Secure the gem with a peg head setting.

Step 1: Gem Studio

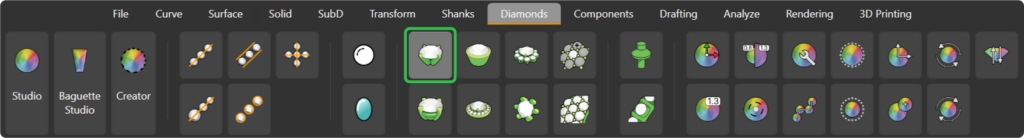

Select the gem and use the Peg Head command from the Diamonds tab.

Step 2: Library

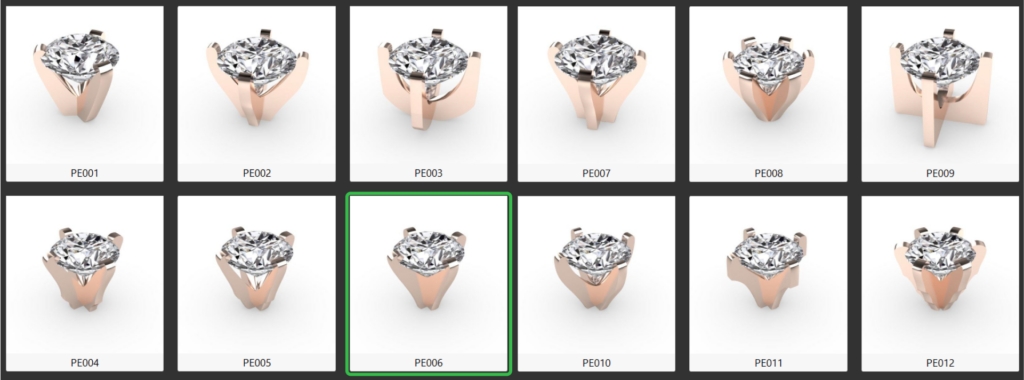

Choose the PE006 peg head element from the library in RhinoArtisan.

Step 3: Parameters

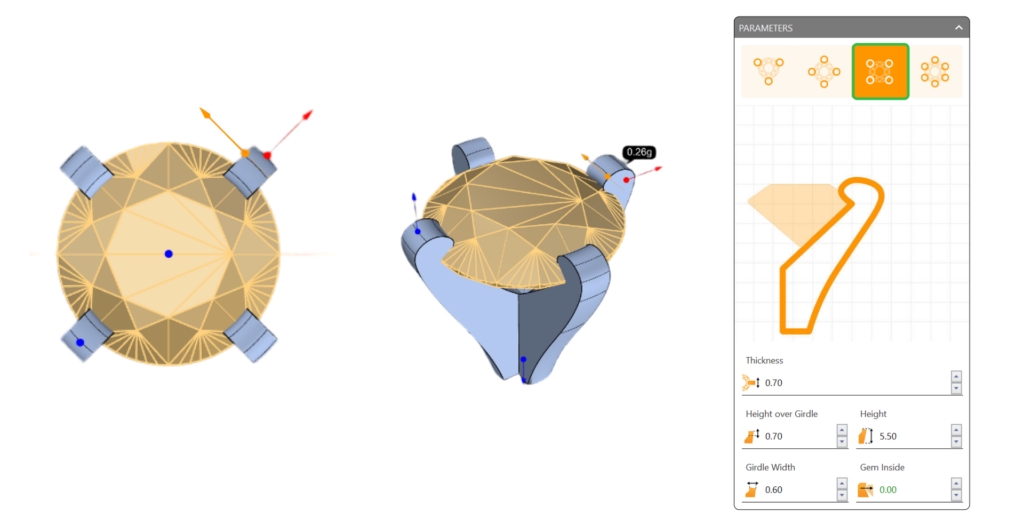

Press Edit and change the orientation of the prongs to option 3.

Video Lesson

Next Step: Create the shank for this model.
