Cathedral: Gems

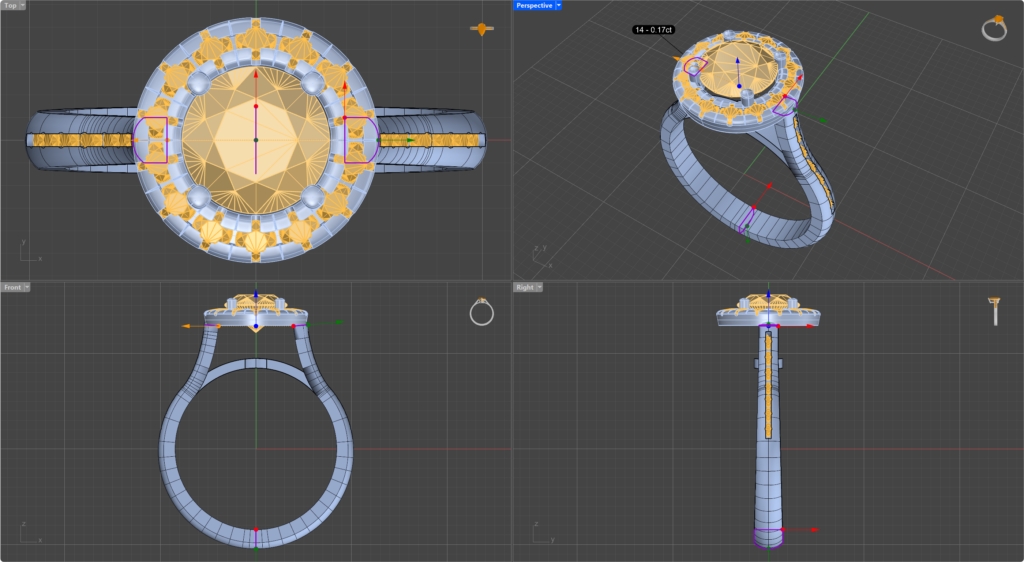

Objective: Add gems to the shank and adjust their placement.

Step 1: Gems Parameters

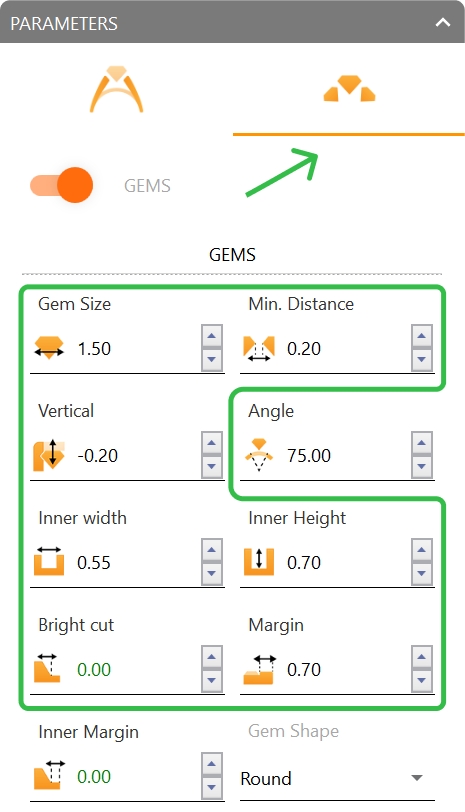

Go to the "Gems" tab in the shank settings.

Adjust the following parameters:

  • Gem size: 1.50 millimeters.

  • Min distance between gems: 0.20 millimeters.

  • Vertical position: -0.20 millimeters.

  • Inner width: 0.55 millimeters.

  • Inner height: 0.70 millimeters.

  • Bring cut: 0.

  • Margin: 0.70 millimeters.

Video Lesson

Next Step: Refine the prong settings for the shank gems.
