Bezel Details

Objective: Add unique details to the bezel.

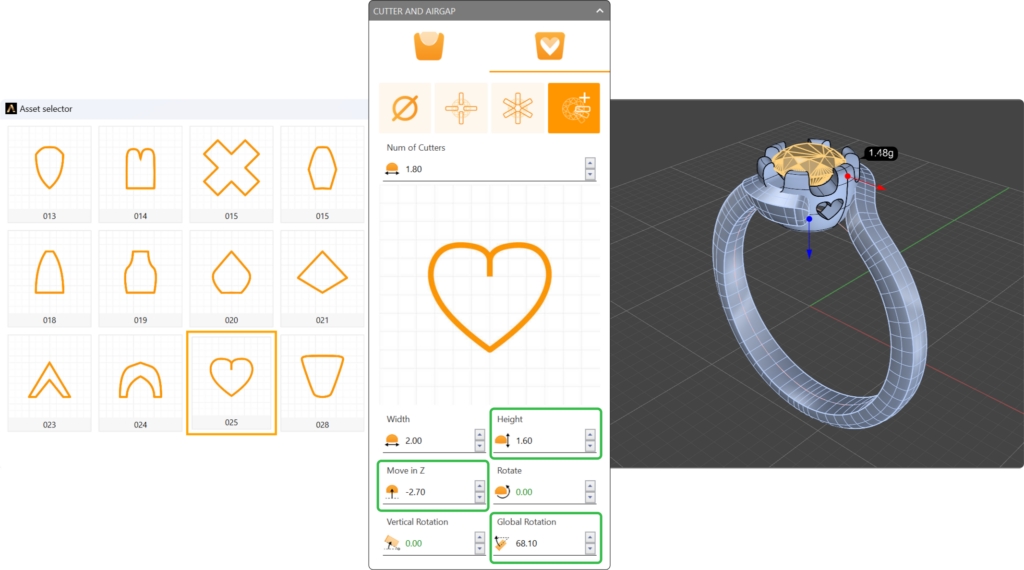

Step 1: Cutter and Airgap

Select the bezel and click "Edit." In the "Cutter and Airgap" options adjust the following parameters.

  • Shape: 025 (Heart shape).

  • Height: 1.6 millimeters.

  • Move in Z: -2.70 millimeters.

  • Global rotation: 68.10 millimeters.

Switch the mode to the fourth option. Set the number of cutters to 2.

Step 2: Bezel Cut

Cut the bezel to match the shank curve.

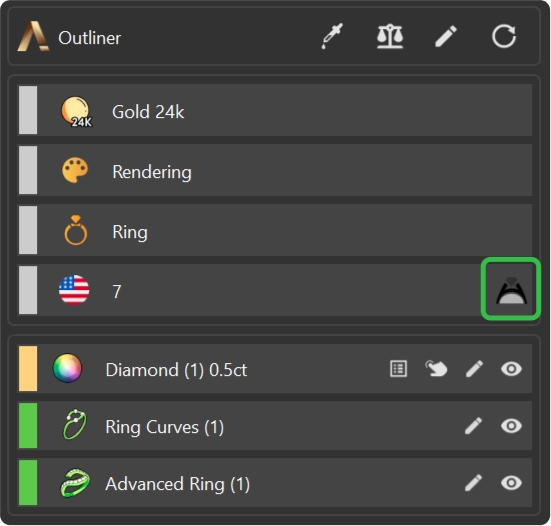

  • In the Outliner, next to the ring size, click the "Cut" icon.

  • Select the bezel and press Enter.

Video Lesson

Next Step: Apply materials and render the ring.
