The Ring Band

Cathedral Command

Now we’re moving on to the Shank, or the ring band.

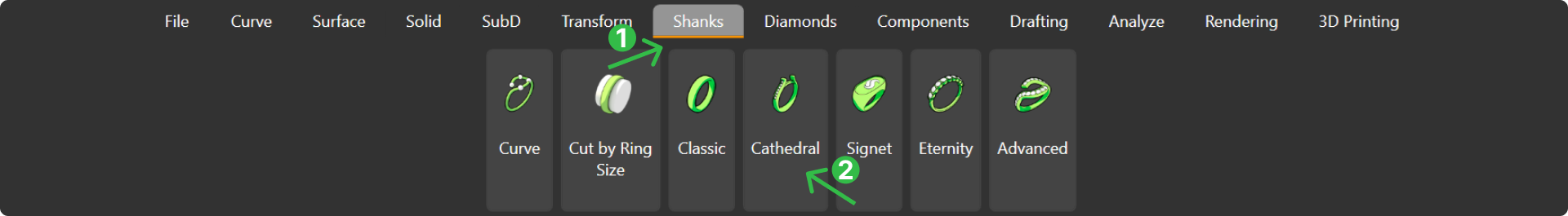

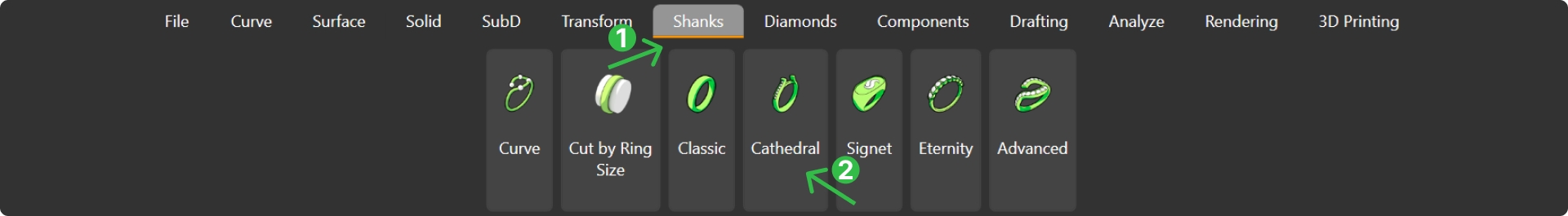

Go to the Shanks (1) tab and select the Cathedral (2) command.

Cathedral Library

We’ll start by selecting element CA016.

Profiles

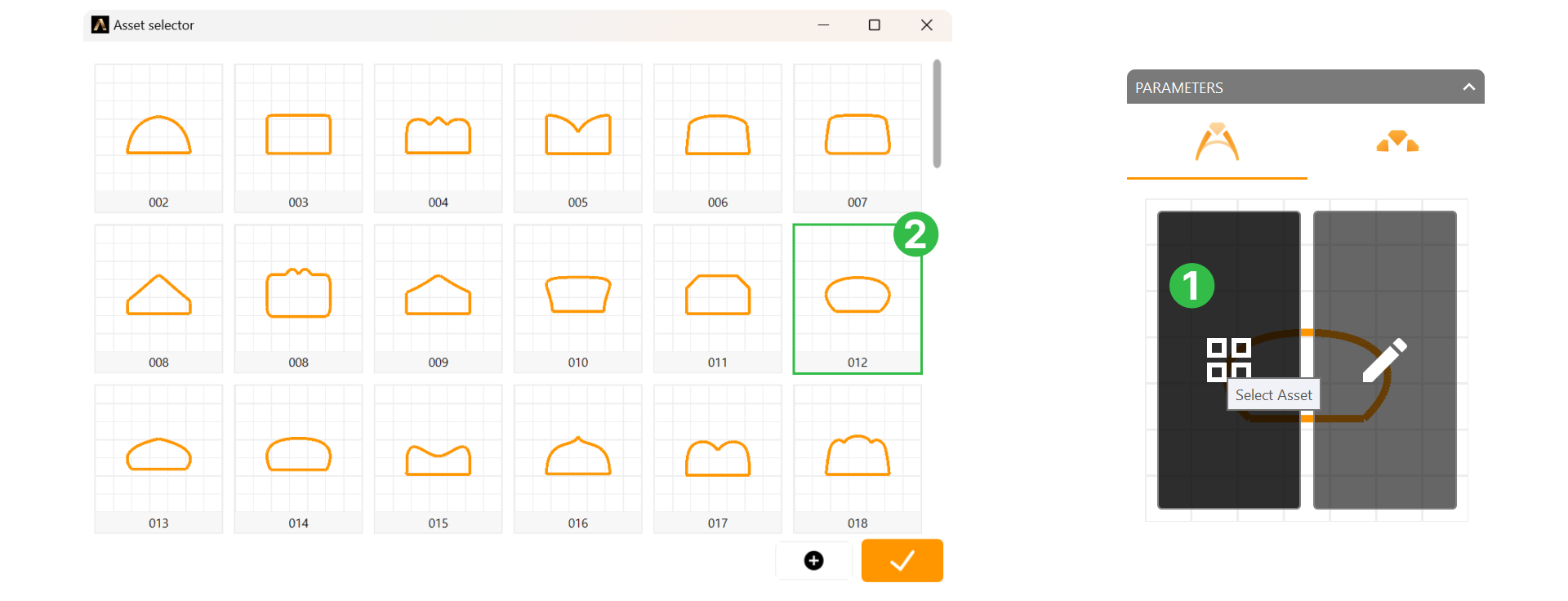

Click on the Profile preview (1). In the Asset Selector (2), select profile 012.

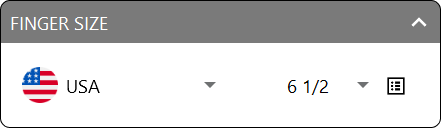

Finger Size

Adjust the size to United States of America and set the ring to size 6 ½.

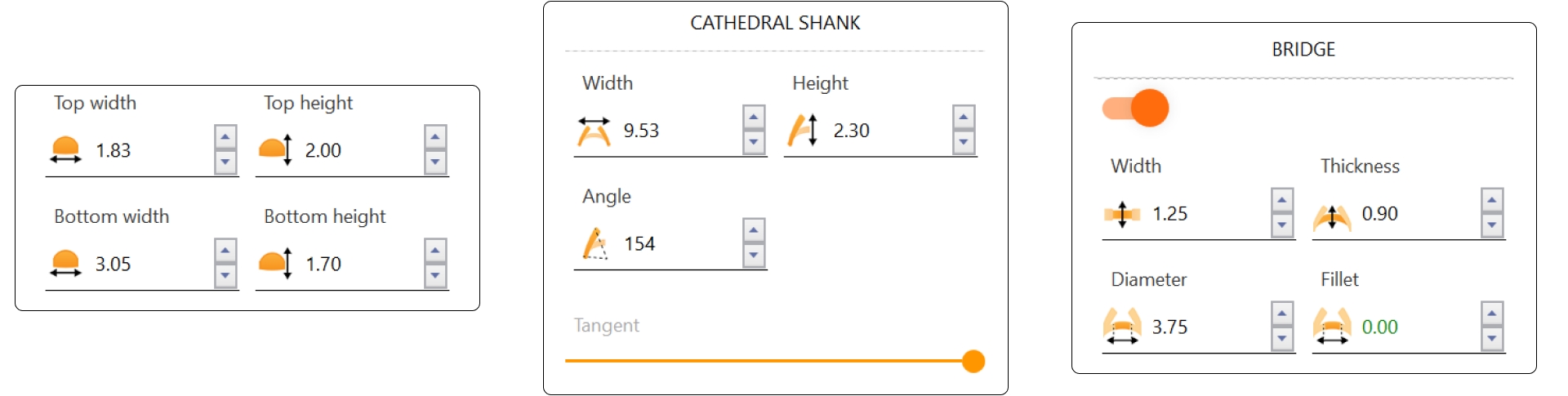

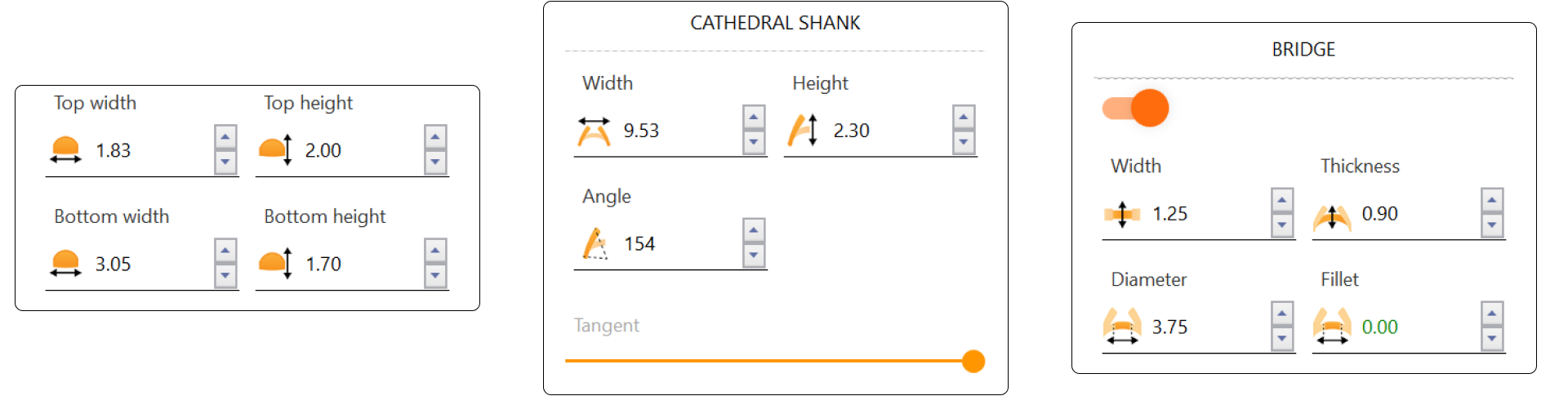

Shank Parameters

  • Top Width: 1.83 mm

  • Top Height: 2 mm

  • Bottom Width: 3.05 mm

  • Bottom Height: 1.7 mm

Cathedral Shank Parameters

  • Width: 9.53 mm

  • Height: 2.3 mm

  • Angle: 154º

  • Tangent: 100%

Adjusting the Bridge

  • Width: 1.25 mm

  • Thickness: 0.9 mm

  • Diameter: 3.75 mm

  • Fillet: 0

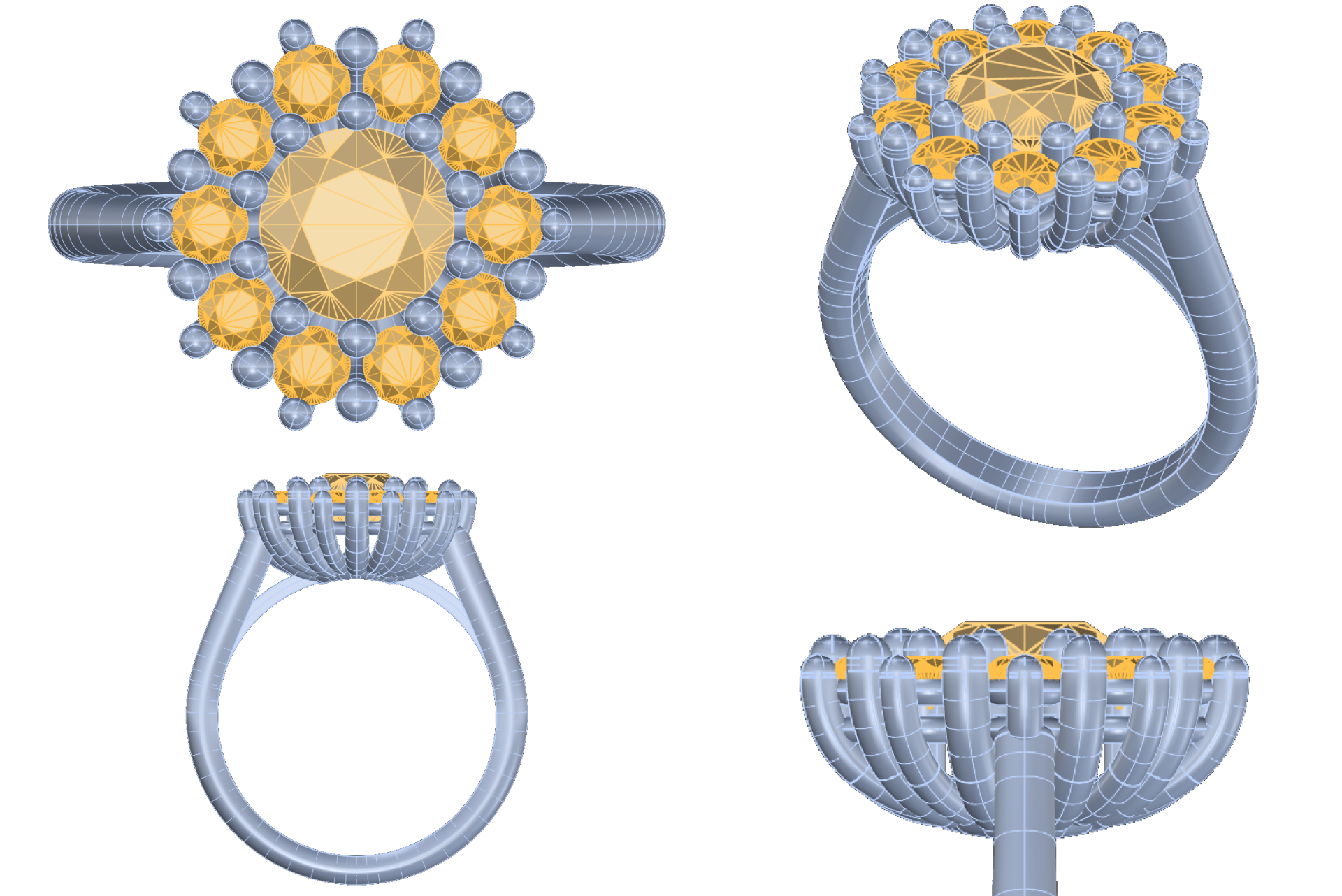

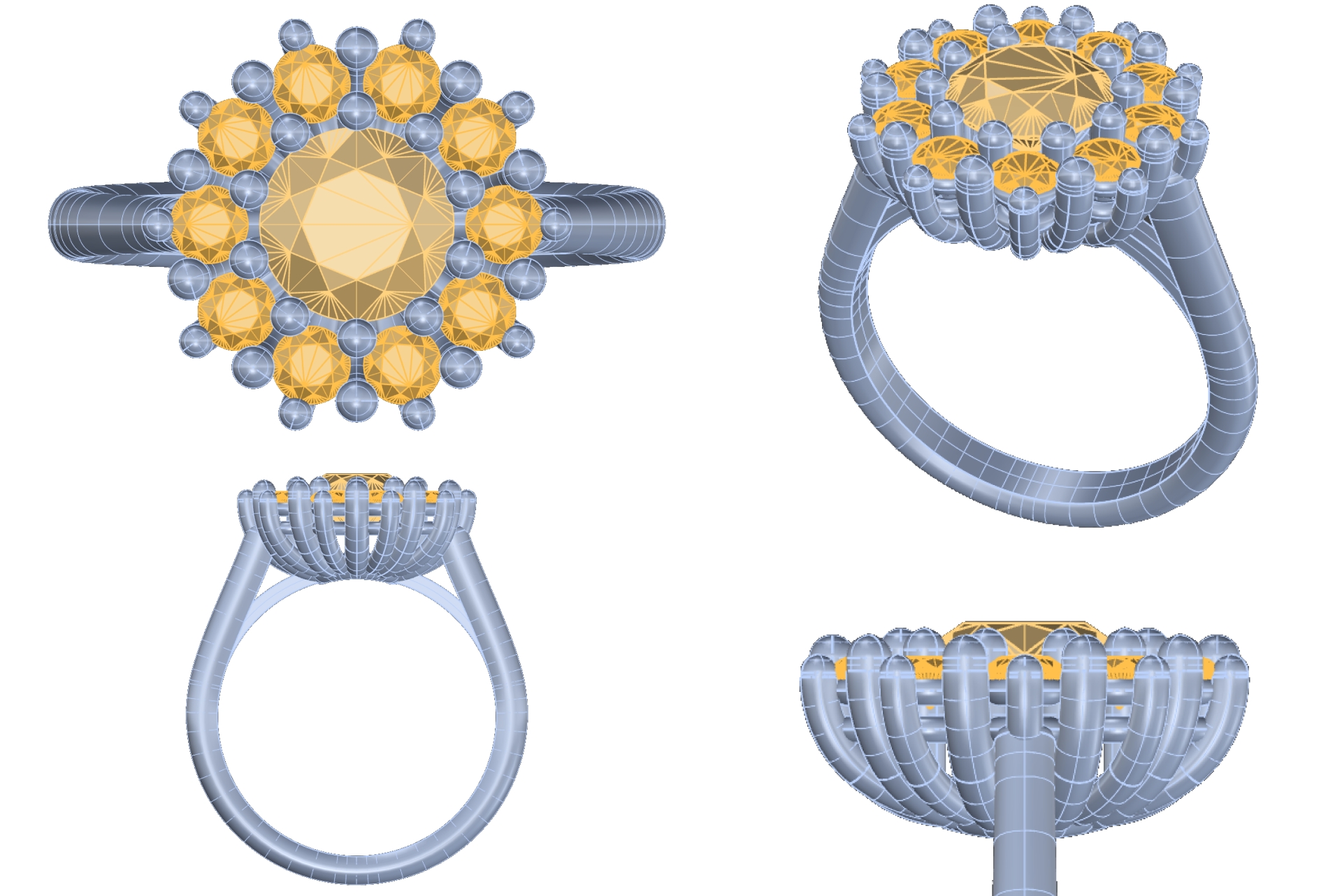

These measurements give our band a graceful lift, creating space for the central gem while adding elegance to the design.

We set the bridge diameter to 3.75 mm to securely support the cluster base. This final adjustment ensures that the cluster is stable and well-balanced on the ring.

Video Lesson

Next Step

Final Steps and Rendering
