Basket Setting

Objective: Set up the basket for the gem and adjust its parameters.

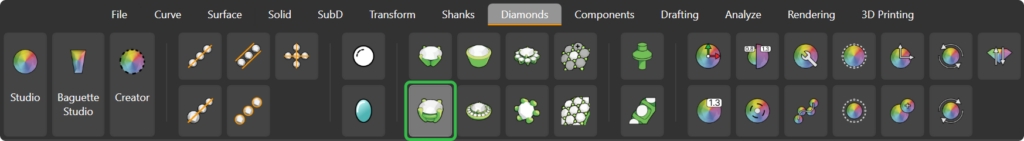

Step 1: Basket Command

With the gem selected, use the Basket command.

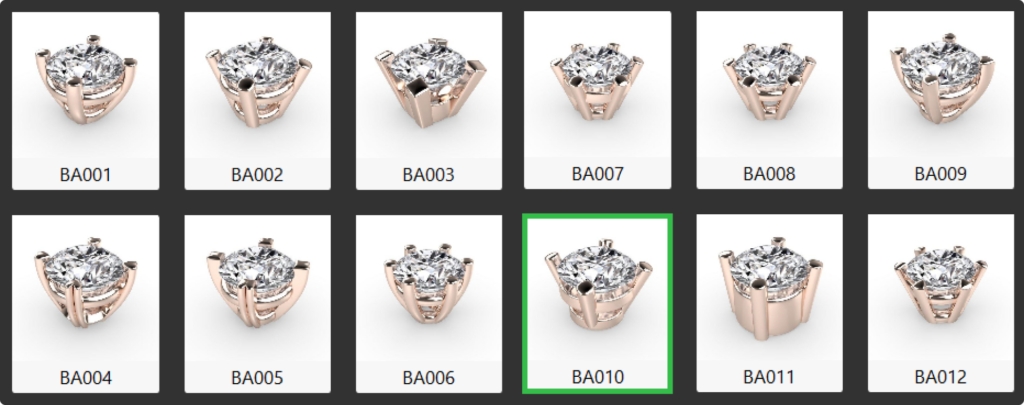

Step 2: Basket Library

Select element BA010.

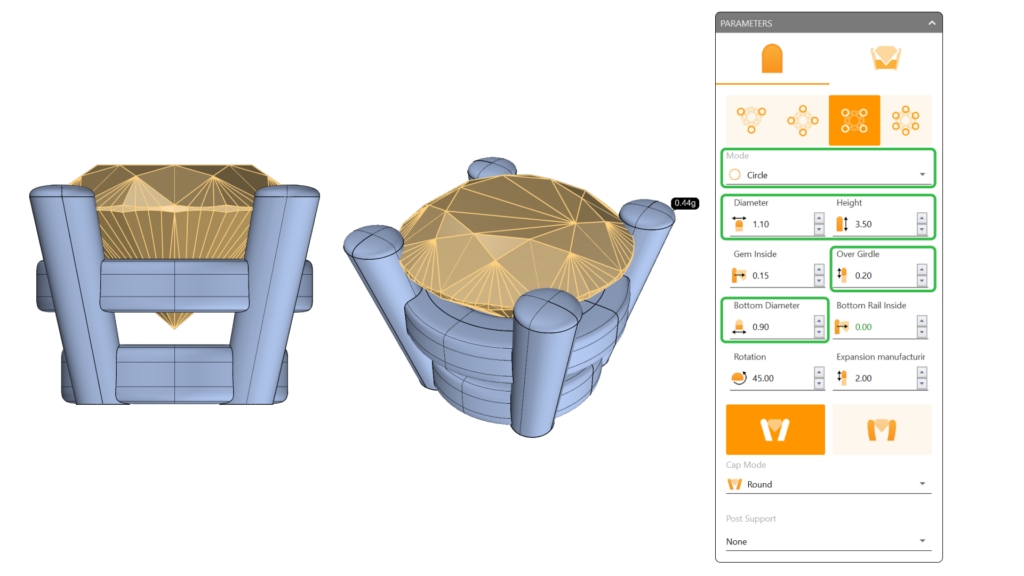

Step 2: Basket Parameters

Edit the following parameters:

  • Set the mode to Circle.

  • Change the diameter to 1.1 millimeters.

  • Set the height to 3.5 millimeters.

  • Set Over Girdle to 0.20 millimeters.

  • Set the Bottom Diameter to 0.9 millimeters.

Video Lesson

Next Step: Adjust the basket rail settings.
