Reference Curve and Gem

Step 1: Reference Curve an Gem

Go to the "Shanks" tab and select the "Curve" command to create a reference curve.

Step 2: Ring Size

Set the region to United States of America and choose size 7.

Step 3: Quick Gems Panel

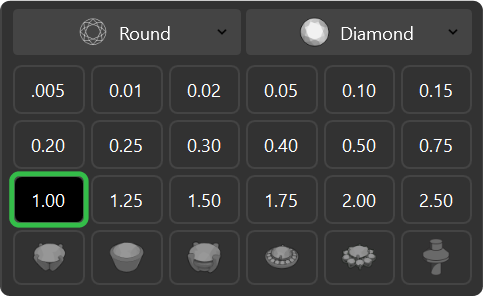

In the Quick Gems panel, create a 1-carat gem.

Step 4: Gem Position

Select the gem, then go to the "Transform" tab and use the Move command.

Enable the Osnap aids, ensuring that Vertex and Mid are activated.

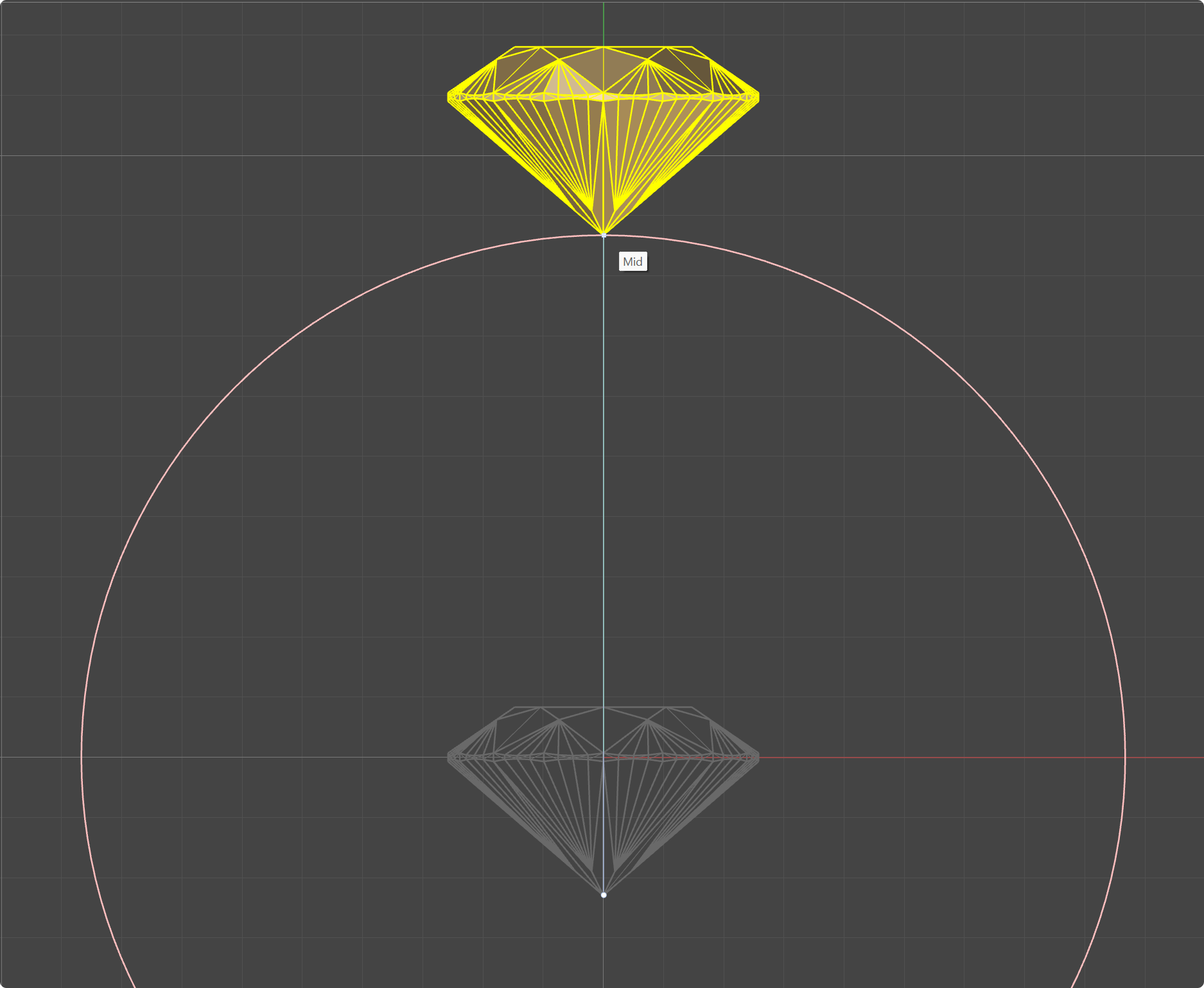

Select the bottom point of the gem and move it to the top of the curve.

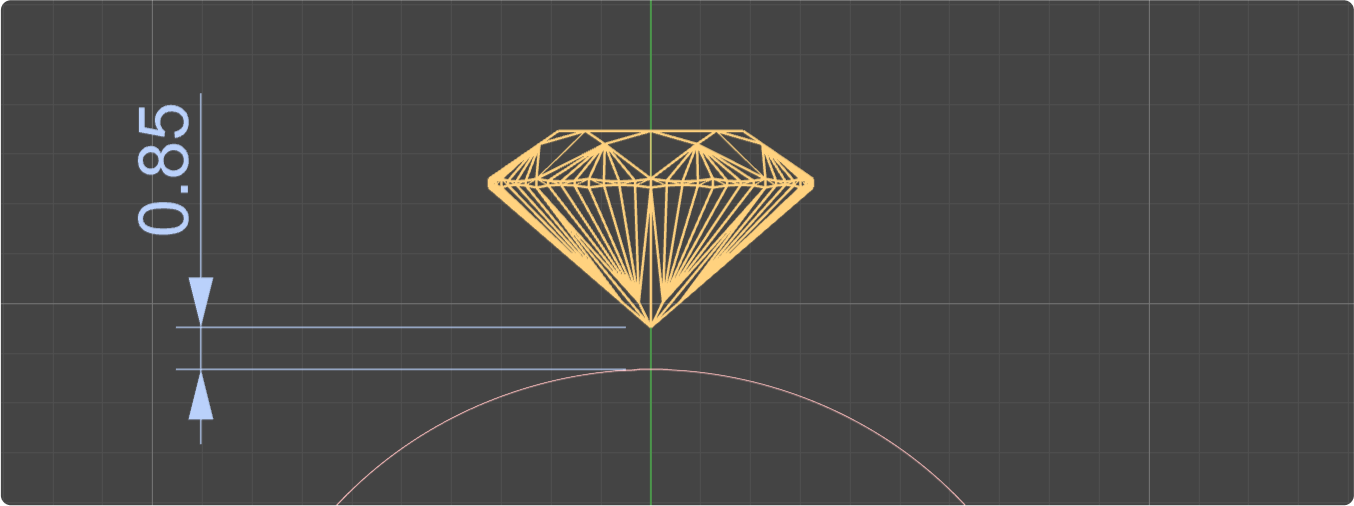

Then using the gumball, move the gem up by 0.85 millimeters to position it correctly.

Video Lesson

Next Step: Create the basket setting for the gem.
