Reference Curve and Gem

Define the base curve for the cushion basket in the USA region with a size of 6.5. Add a cushion-shaped gem of 1.45 carats and align it properly on the curve

Reference Curve

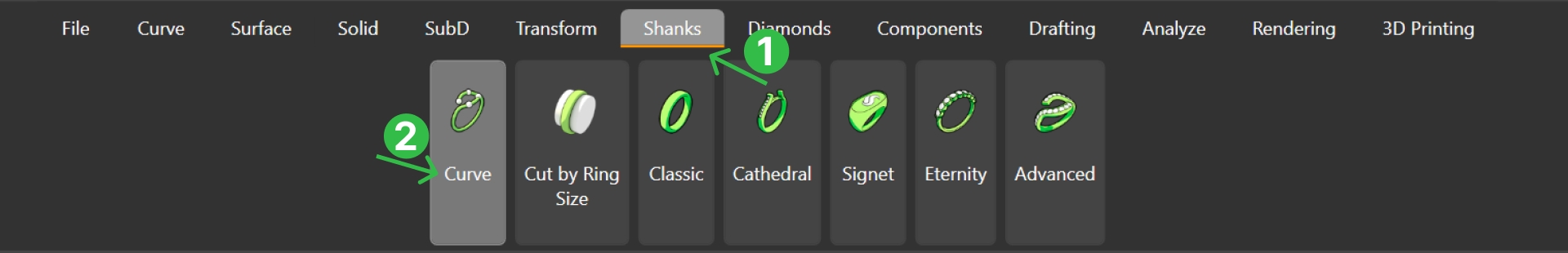

Navigate to the Shanks tab (1) and select the Curve command (2).

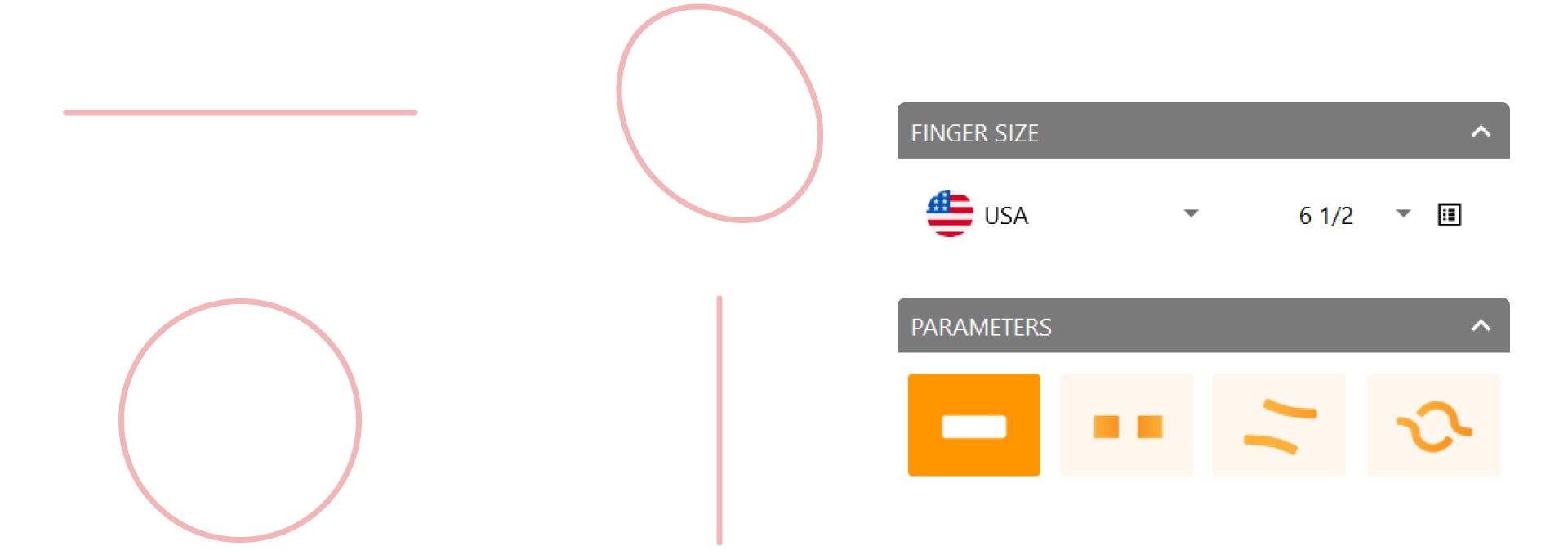

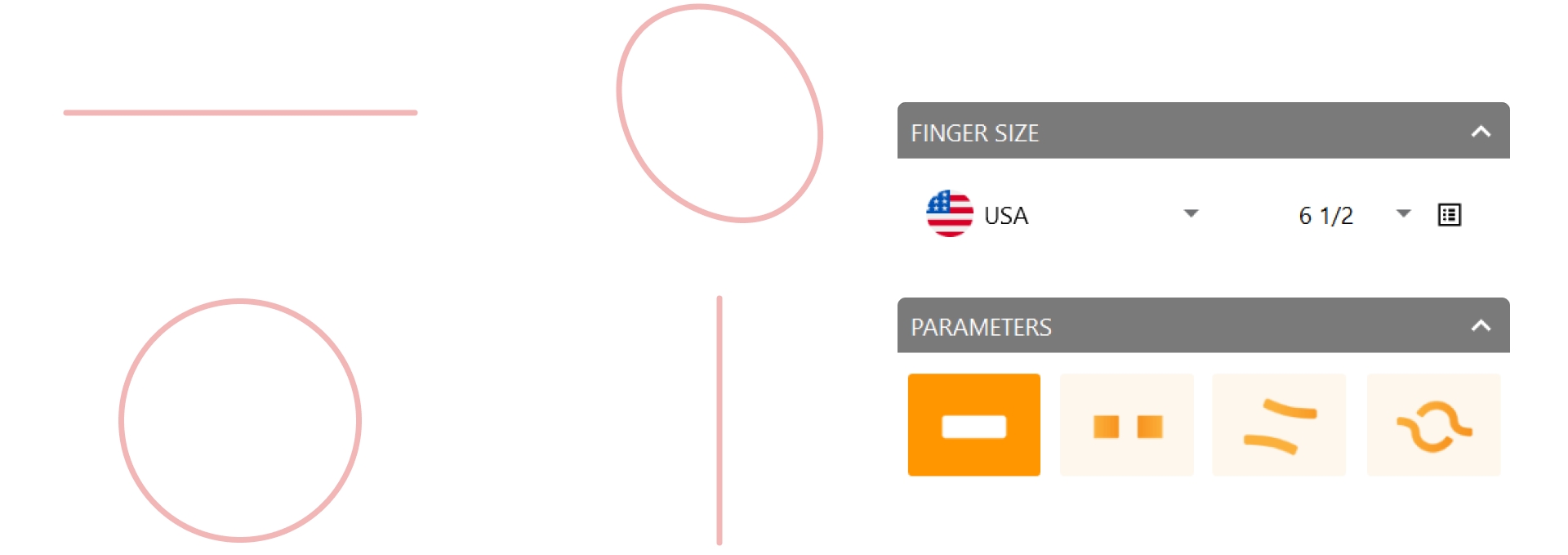

Set the region to USA and choose a 6 1/2 size.

Gem Studio

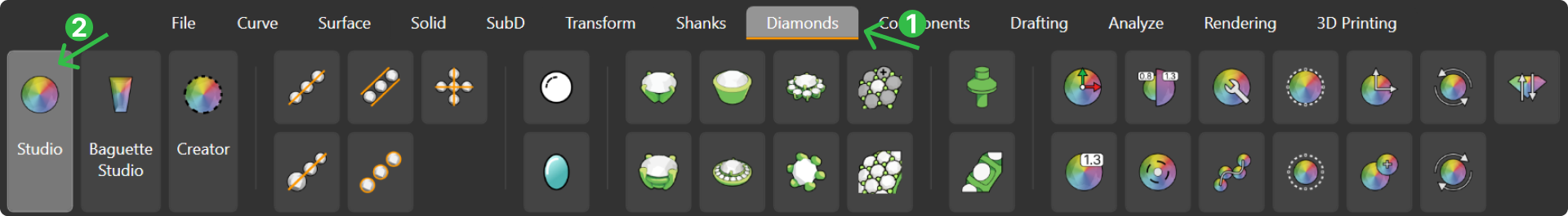

Navigate to the Diamonds tab (1) and select the Gem Studio command (2).

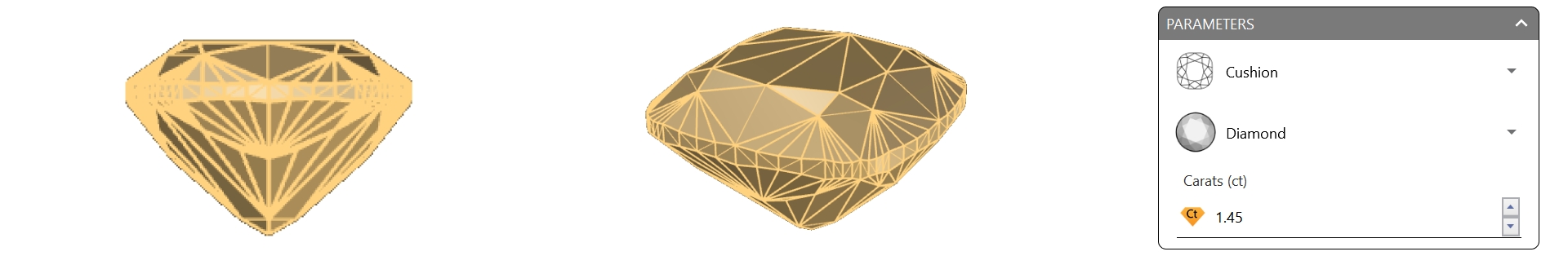

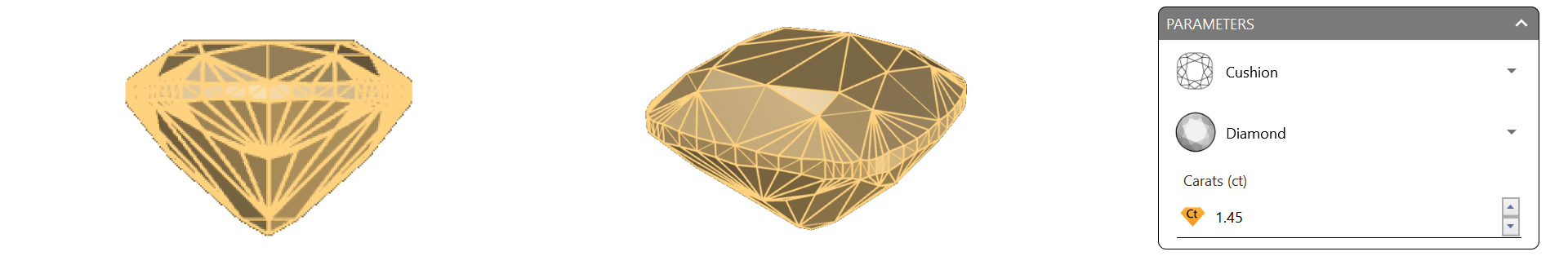

• Choose Shape: Cushion.

• Set the size to 1.45 carats.

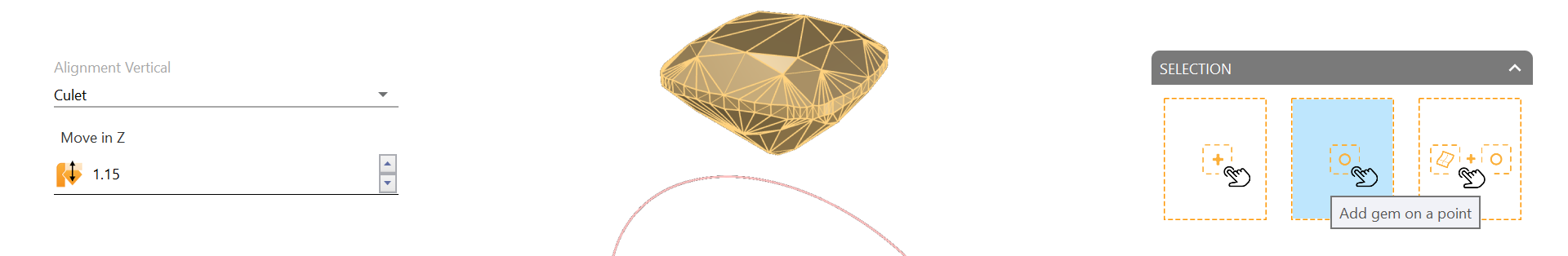

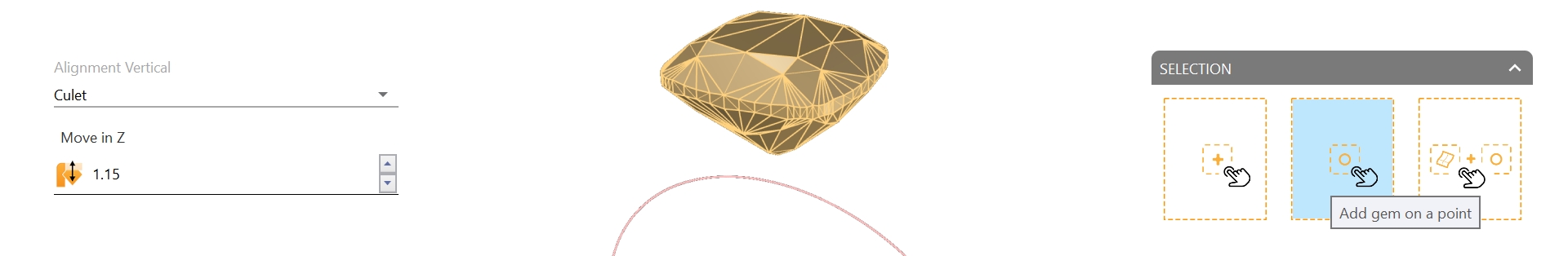

Adjust alignment

• Set Vertical Alignment to Culet.

• Move the gem in the Z-axis to 1.15 mm.

Use the Add Gem to Point option and place the gem at the top of the previously created curve.

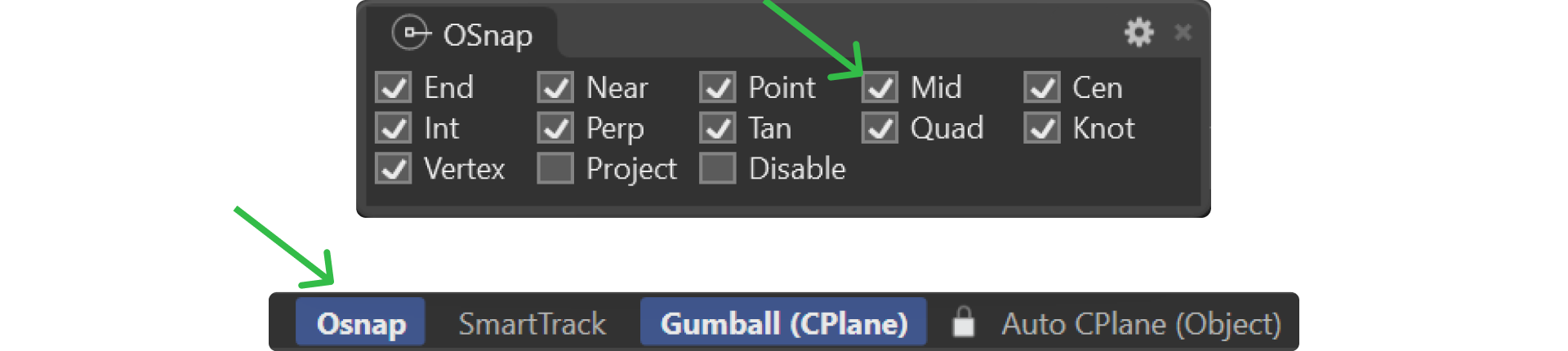

Ensure the Osnap option is active to facilitate precise placement.

Video Lesson

https://www.rhinoartisan.com/wp-content/uploads/2024/11/Lesson-1-3.mp4www.rhinoartisan.com

Next Step

Begin creating the first prong to secure the gem.
