Create the Scene

Create the scene for the final render.

Step 1: Rotate command

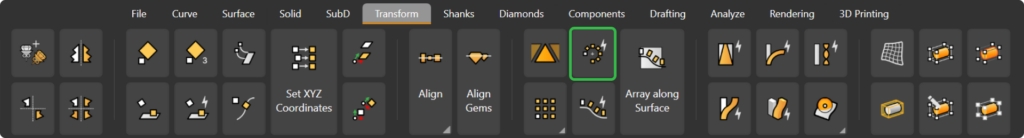

Select the model, go to the Transform tab, and use the Rotate command.

Step 2: Pose

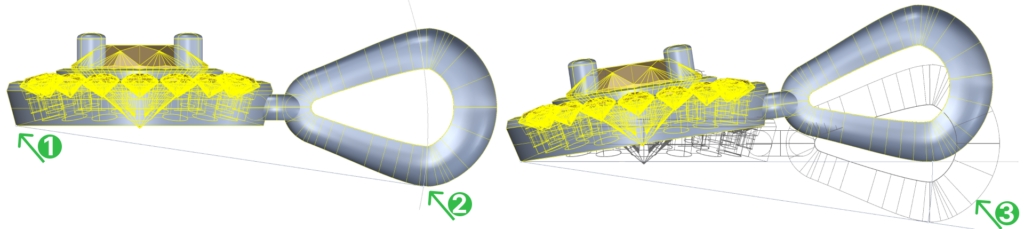

In the Right View, choose the lowest point on the halo as the first point (1) and the lowest tangent point on the bail as the second (2). Hold “Shift” and click in the viewport (3) to pose the pendant.

Step 3: Polar Array

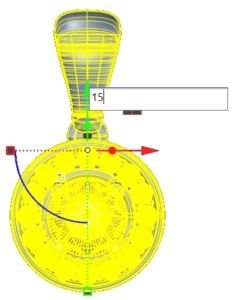

In Top View, move all elements up by 15 mm.

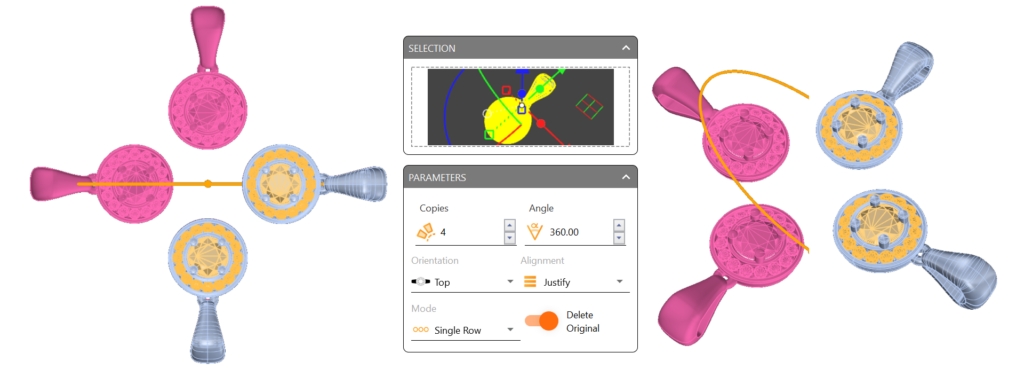

In the Transform tab Use the Quick Array Polar

  • Set Orientation to Top

  • Set the copies to 4.

Video Lesson

Next Lesson

In the next lesson, we’ll finalize the piece with rendering and material selection.
