Create a Solid Shape

Objective: Learn how to create a solid shape from the curve for the gemstone socket.

Step 1: Show all Views

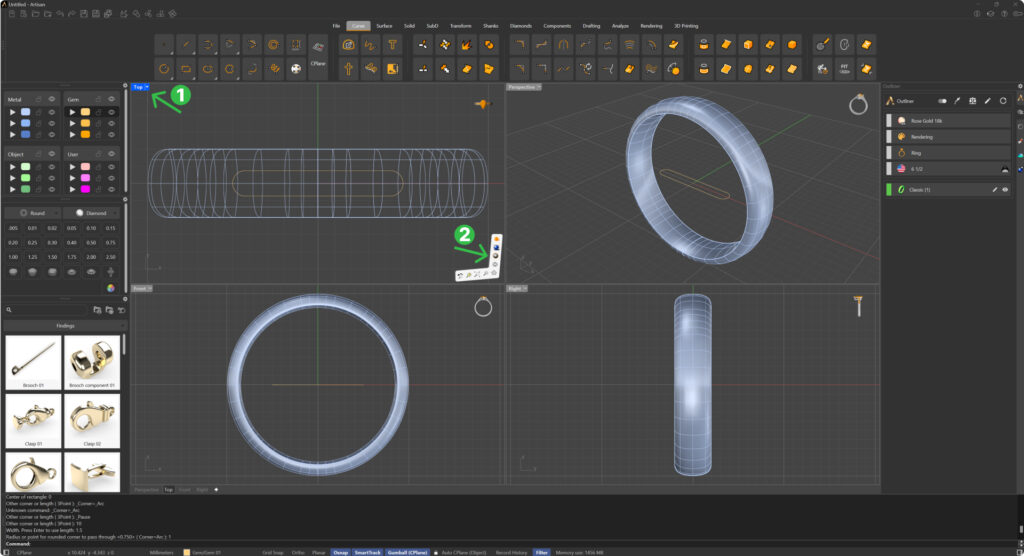

Activate all views (1), double click on top, and switch to "Shaded Mode" by selecting the shaded option in the bottom-right corner of each viewport (2).

Step 2: Extrude the Curve

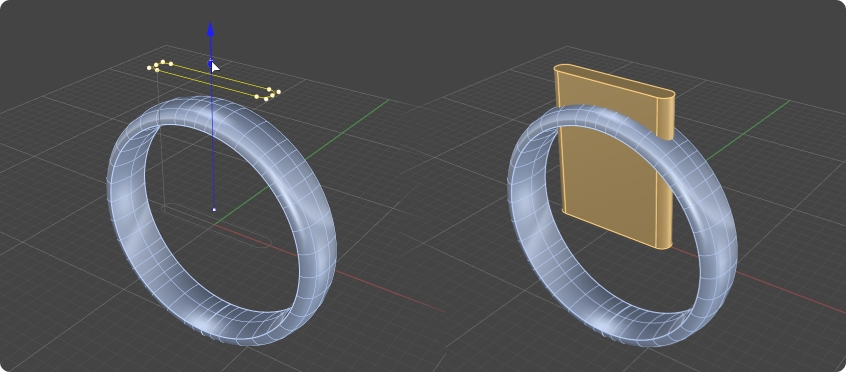

From the "Perspective" view, select the curve, use the gumball tool (2) to drag the blue circle upwards (2), extruding the curve until it surpasses the shank.

Now that the solid is created.

Video Lesson

Next Step

We'll proceed to subtract it from the shank to form the socket.
