Shank

Objective: Create and adjust the custom cathedral shank.

Step1: Cathedral Shank

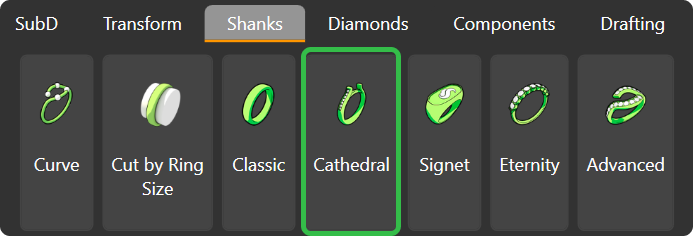

Go to the "Shanks" tab and select the "Cathedral" command.

Step 2: Click "Edit"

Step 3: Profiles

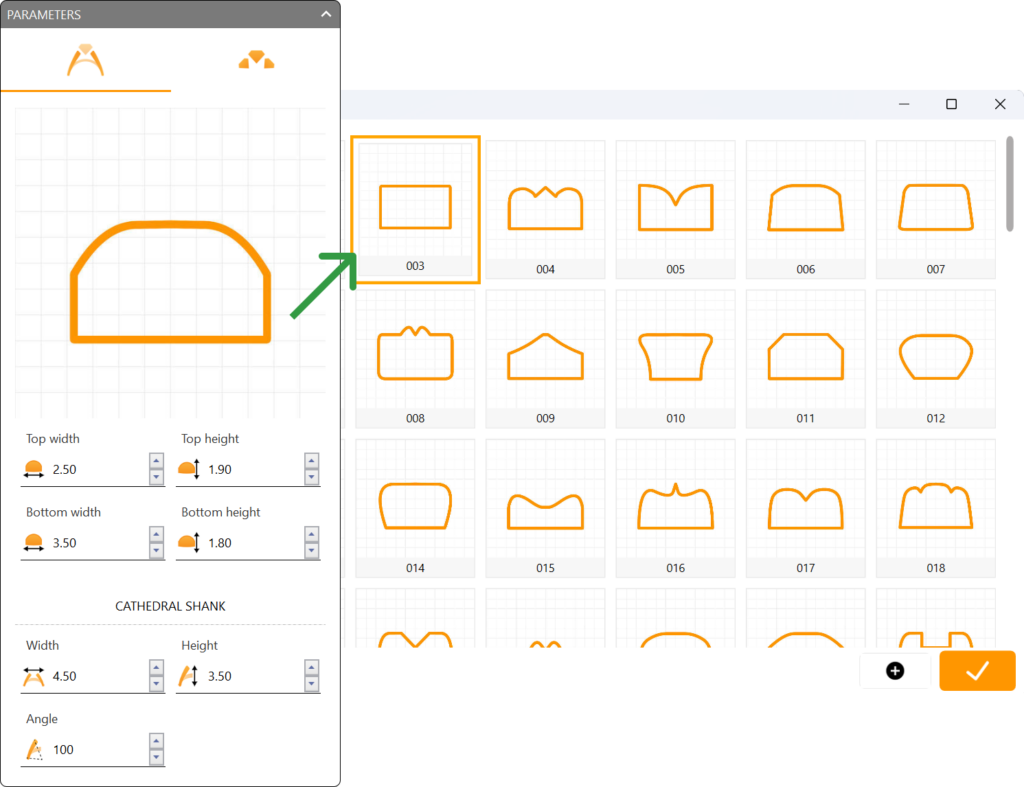

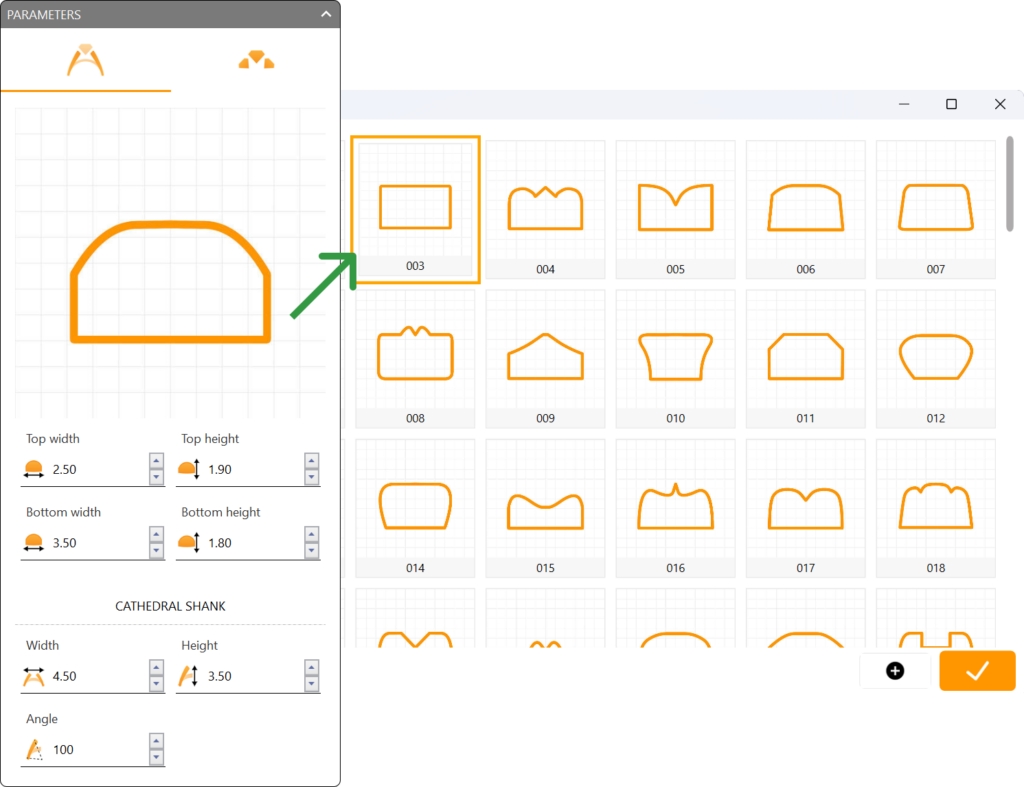

For the profile, select curve 003.

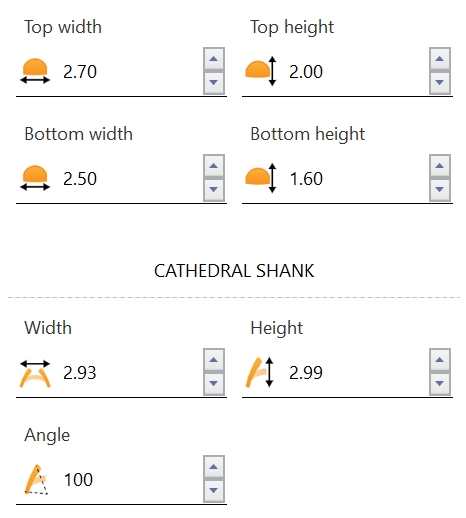

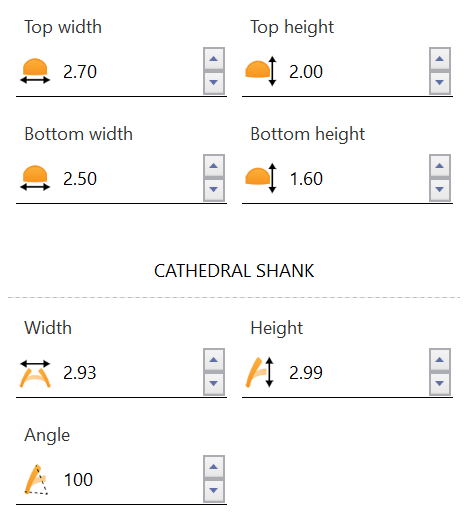

Step 4: Adjust the parameters:

  • Top width: 2.70 millimeters.

  • Top height: 2 millimeters.

  • Bottom width: 2.5 millimeters.

  • Bottom height: 1.6 millimeters.

  • Cathedral width: 2.93 millimeters.

  • Cathedral height: 2.99 millimeters.

Video Lesson

Next Step: Adjust the shank bridge and add gems to the design.
