Cathedral Shank

Objective: Design the shank using the cathedral setting.

Step 1: Create a Cathedral

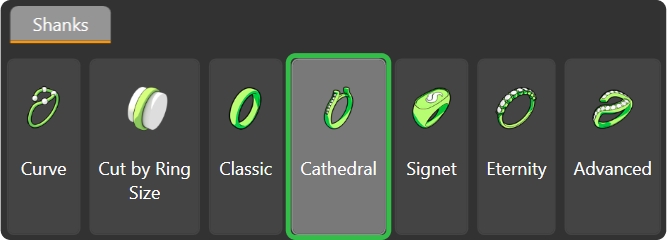

Go to the "Shanks" tab and select the "Cathedral" command.

Step 2: Library

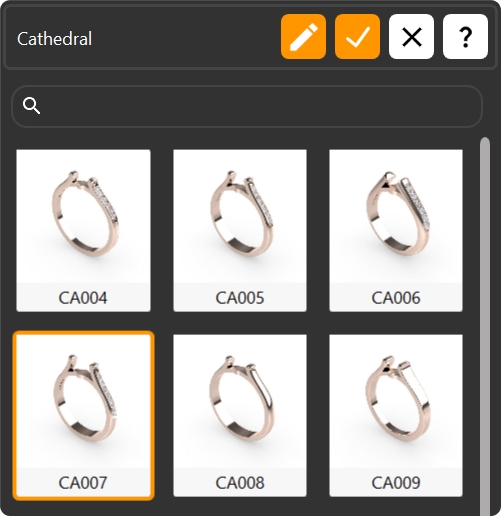

Choose the CA007 model for the shank and press "Edit." Adjust the region to "United States of America" and set the ring size to 7.

Step 3: Parameters

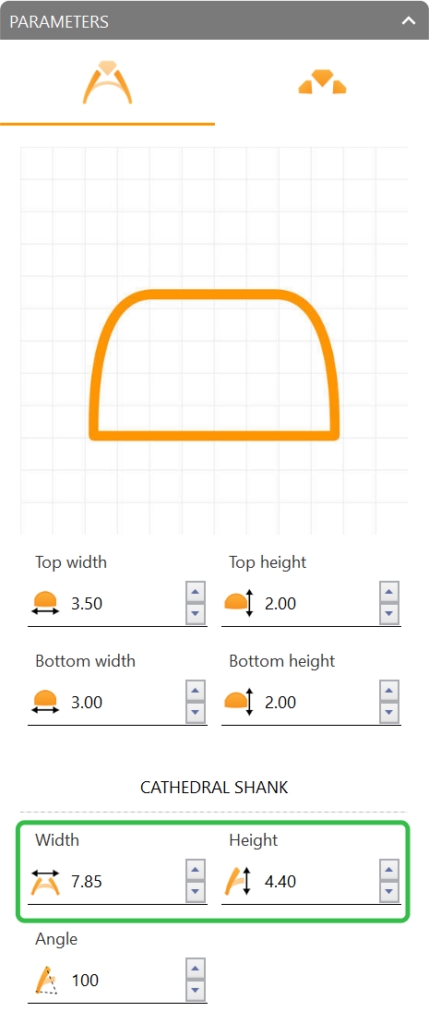

In the cathedral shank parameters, adjust:

  • Width: 7.85 millimeters.

  • Height: 4.4 millimeters.

Video Lesson

Next Step: Add gems to the shank.
