Quick Array Polar
Objective: Duplicate the gem and bezel using a polar array.
Step 1: Quick Array Polar

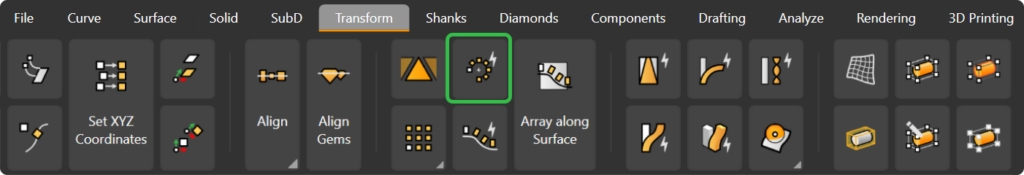

To finish this part, we will use the Quick Array Polar command. Select the model and press the command button in the transform tab.

Step 2: Quick Array Polar Panel

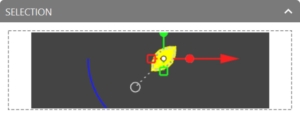

Click on the panel to add our element.

Step 3: Parameters

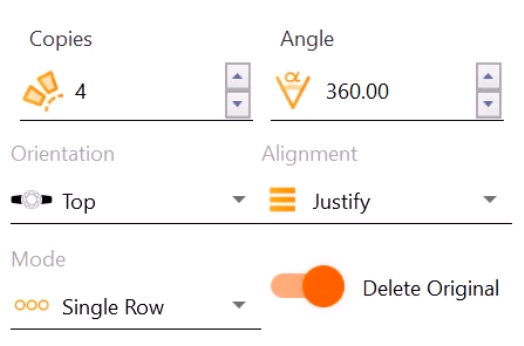

Change the orientation to top and the number of copies to 4, then accept.


Video Lesson
Next Step: Create the custom cathedral shank for the ring.
