Pipe for Round Basket Prong

Create the first prong for the round basket using the Pipe command.

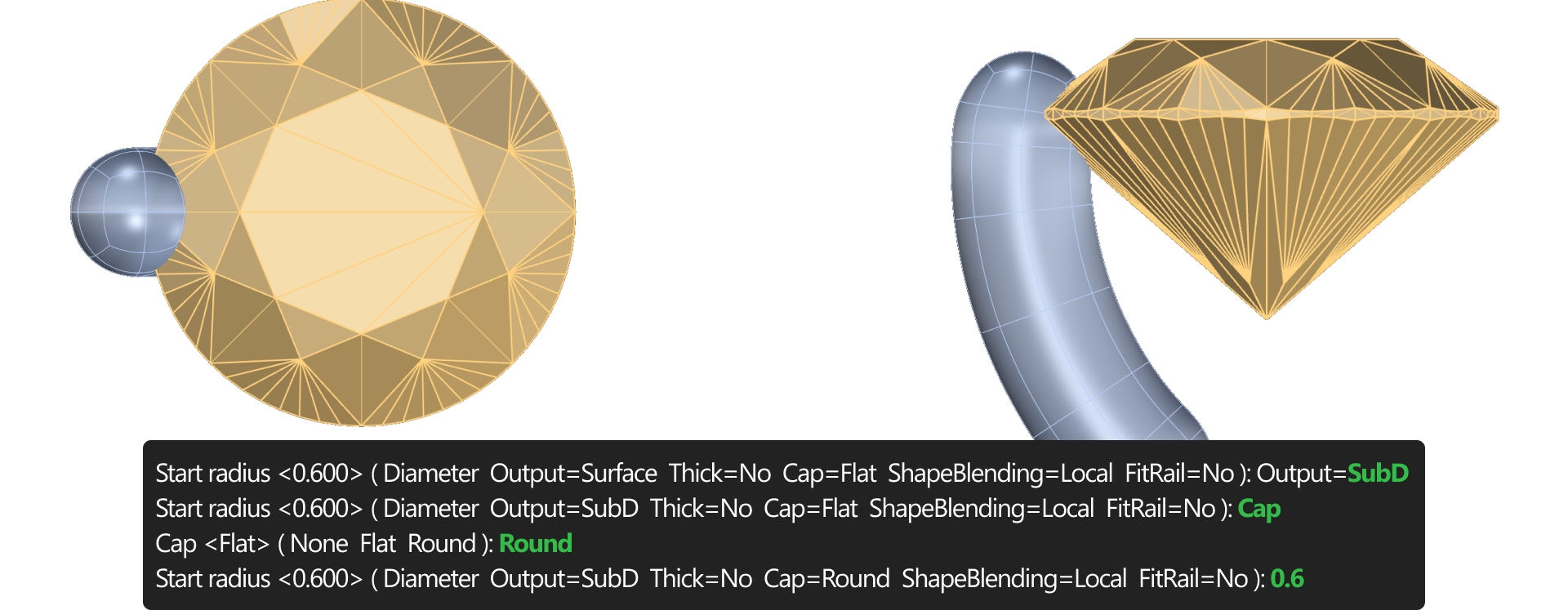

Pipe Command

Navigate to the Solid tab and use the Pipe command.

• Set Output to SubD.

• Select Cap: Round.

• Input a diameter of 0.6 mm and press Enter twice.

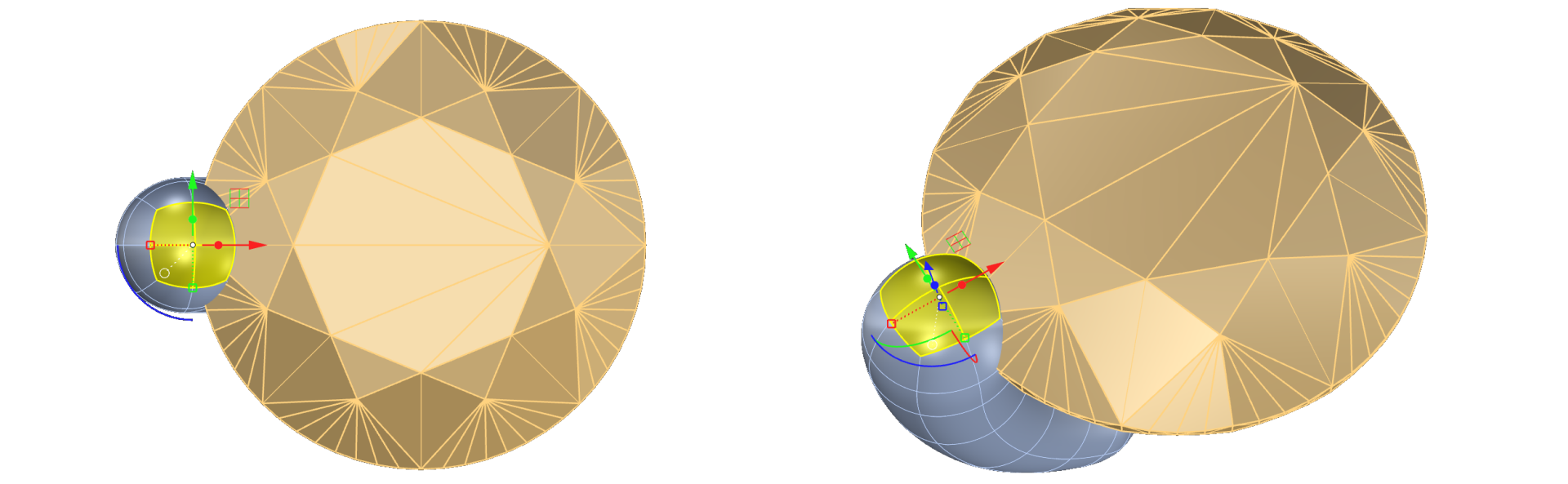

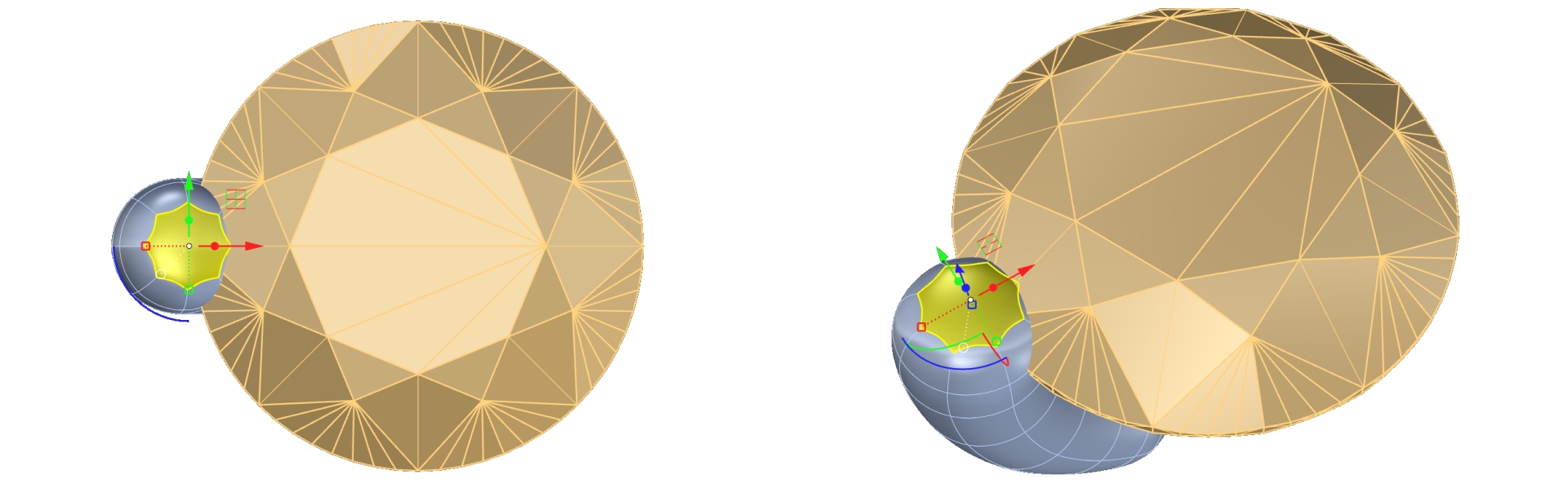

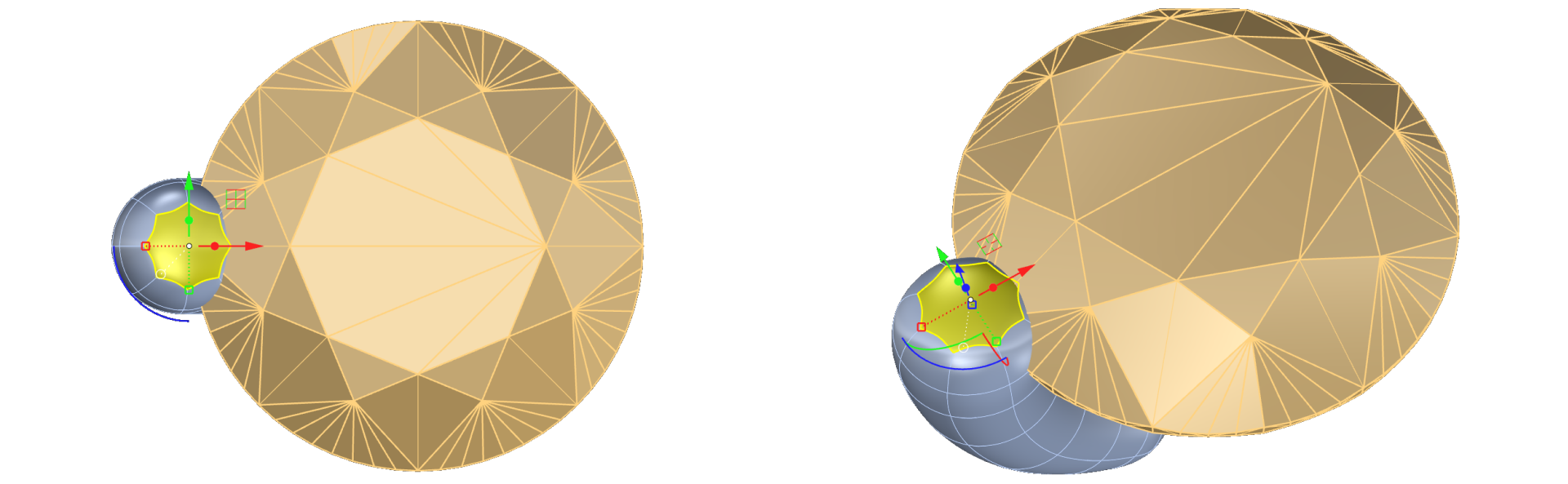

SubD Selection

Switch to the SubD tab (1):

Use Face Selection Mode (2).

In the Top View, hold Shift and select the four top faces of the prong.

Click Merge Faces to combine them.

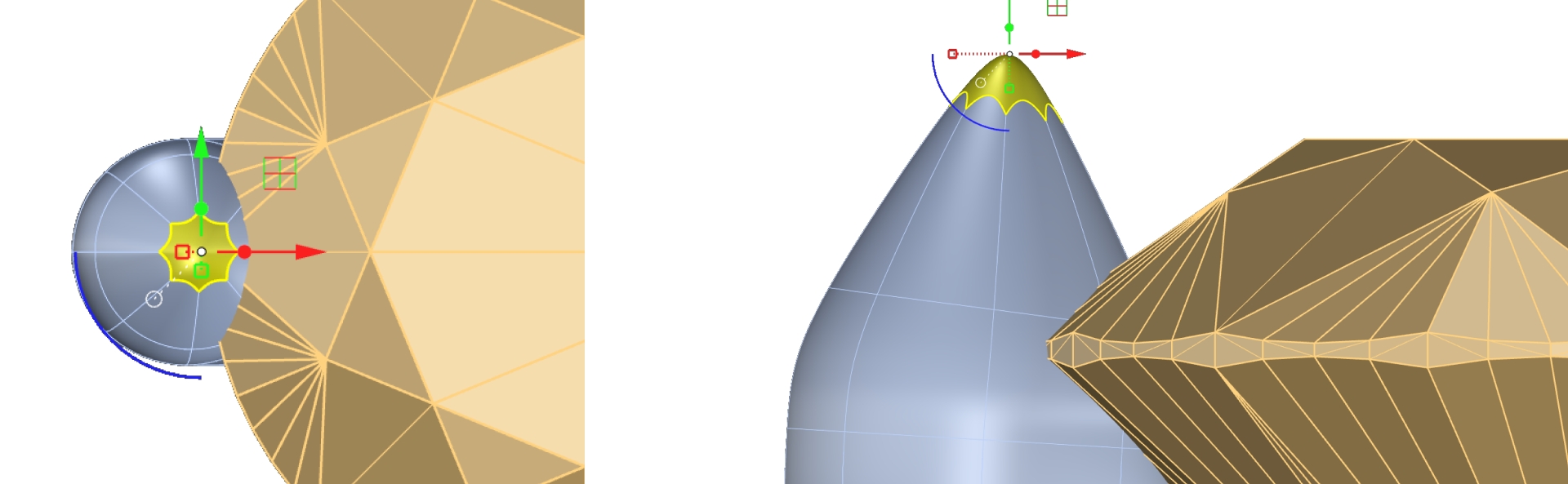

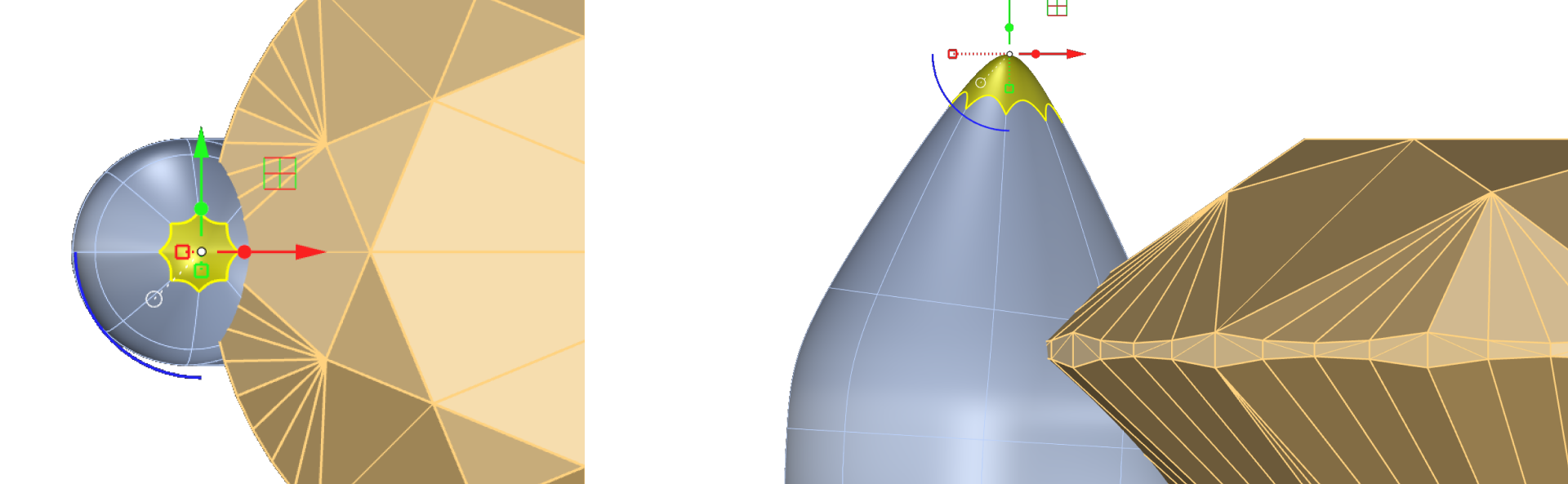

Adjust the prong shape

• Use the Gumball tool to proportionally scale down the selection by holding Shift. In the Front View, move the selection upward to create a pointed tip.

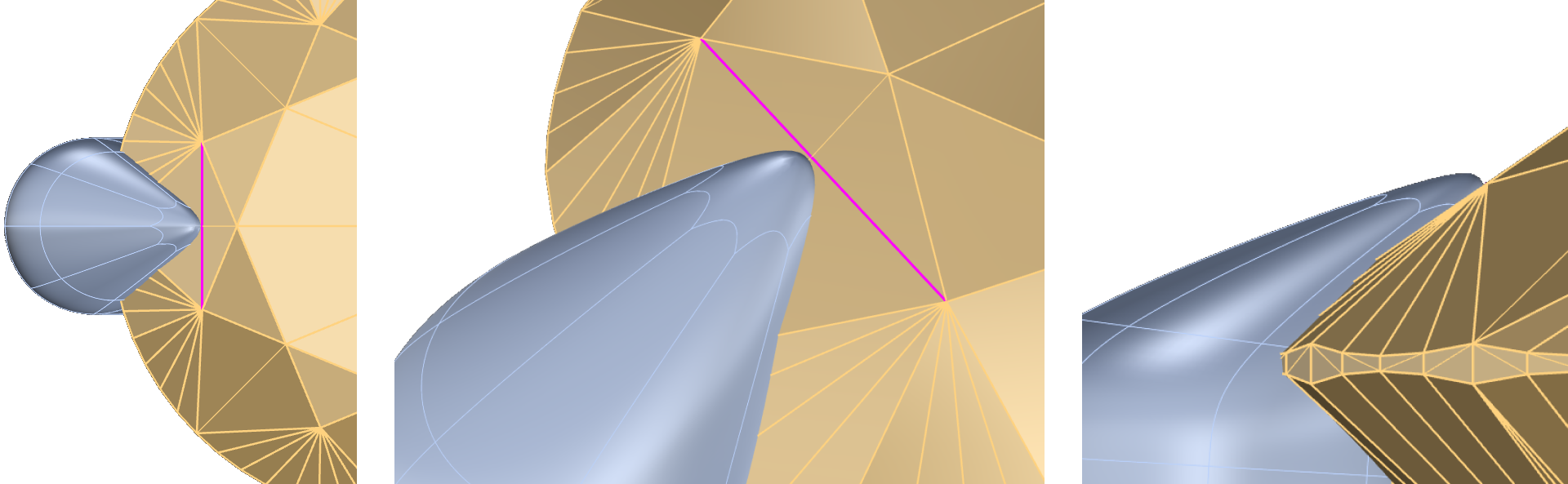

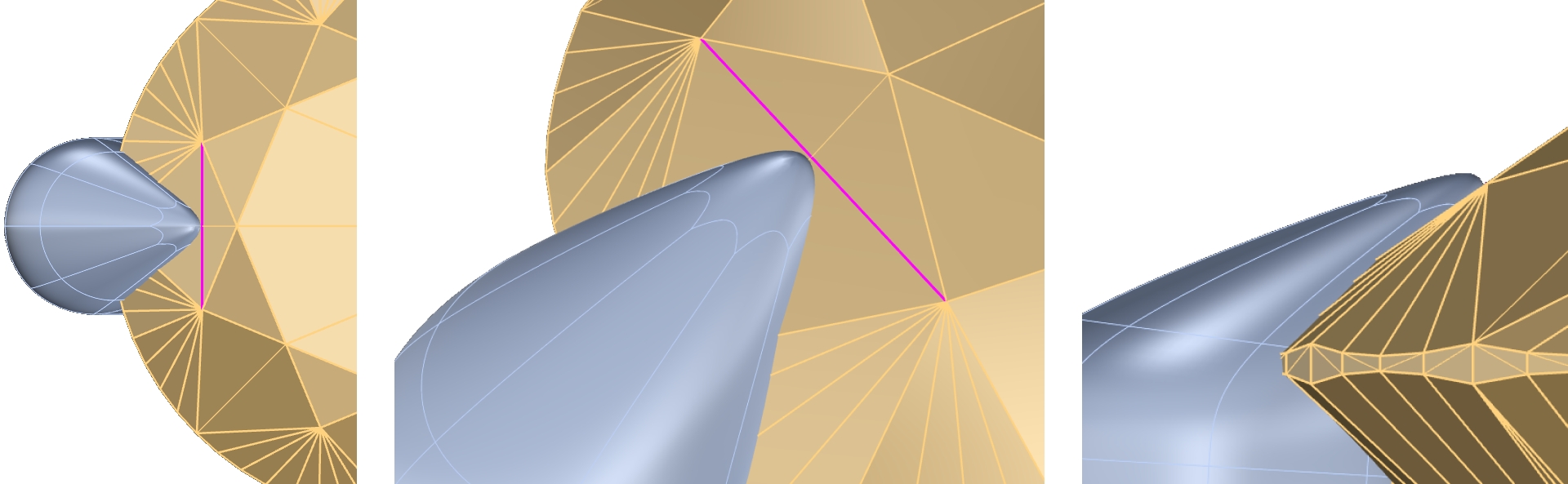

• Position the prong tip toward the gem crown, aligning it to the gem center.

Video Lesson

https://www.rhinoartisan.com/wp-content/uploads/2024/12/03-Lesson.mp4www.rhinoartisan.com

Next Step

Refine the prong and prepare it for rotation.
