Reference Curve and Gem Studio

Objective: Start by creating the ring’s reference curve and add a 2-carat Cushion cut diamond.

Step 1: Curve Command

Go to the "Shanks" tab and select the "Curve" command.

Step 2: Ring Size

Set the region to "United States of America" and select size 7.

Step 3: Gems Studio

Switch to the "Diamonds" tab and use the "Gem Studio" command.

Step 4: Add gem

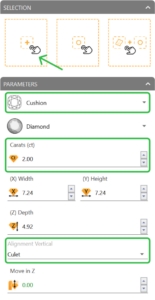

Select "Cushion" as the shape and set the size to 2 carats. Align the gem to the Culet, then press "Add."

Video Lesson

Next Step: Position the gem on the reference curve.
