# Gems Map

## <img src="https://3375153115-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5uhW8FwQpXQj8tHUULMo%2Fuploads%2FnyXCB0vREIxK6dwqfONu%2F04_DRAFTING_GEMS_MAP.png?alt=media&#x26;token=c7e015c1-e0b4-4848-a7ee-25716c76af5b" alt="" data-size="line"> Gems Map

Using this command, you can generate a 2D graphic representation of the gems in your design, their placement, and their weight in carats.  Gem setters love this tool.

![](https://3375153115-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5uhW8FwQpXQj8tHUULMo%2Fuploads%2FvGcOKyNNG48RnyT5jZsP%2FGems%20Map.jpg?alt=media\&token=c4b8ec9b-24bb-4271-a76a-9ea3c6cd72aa)

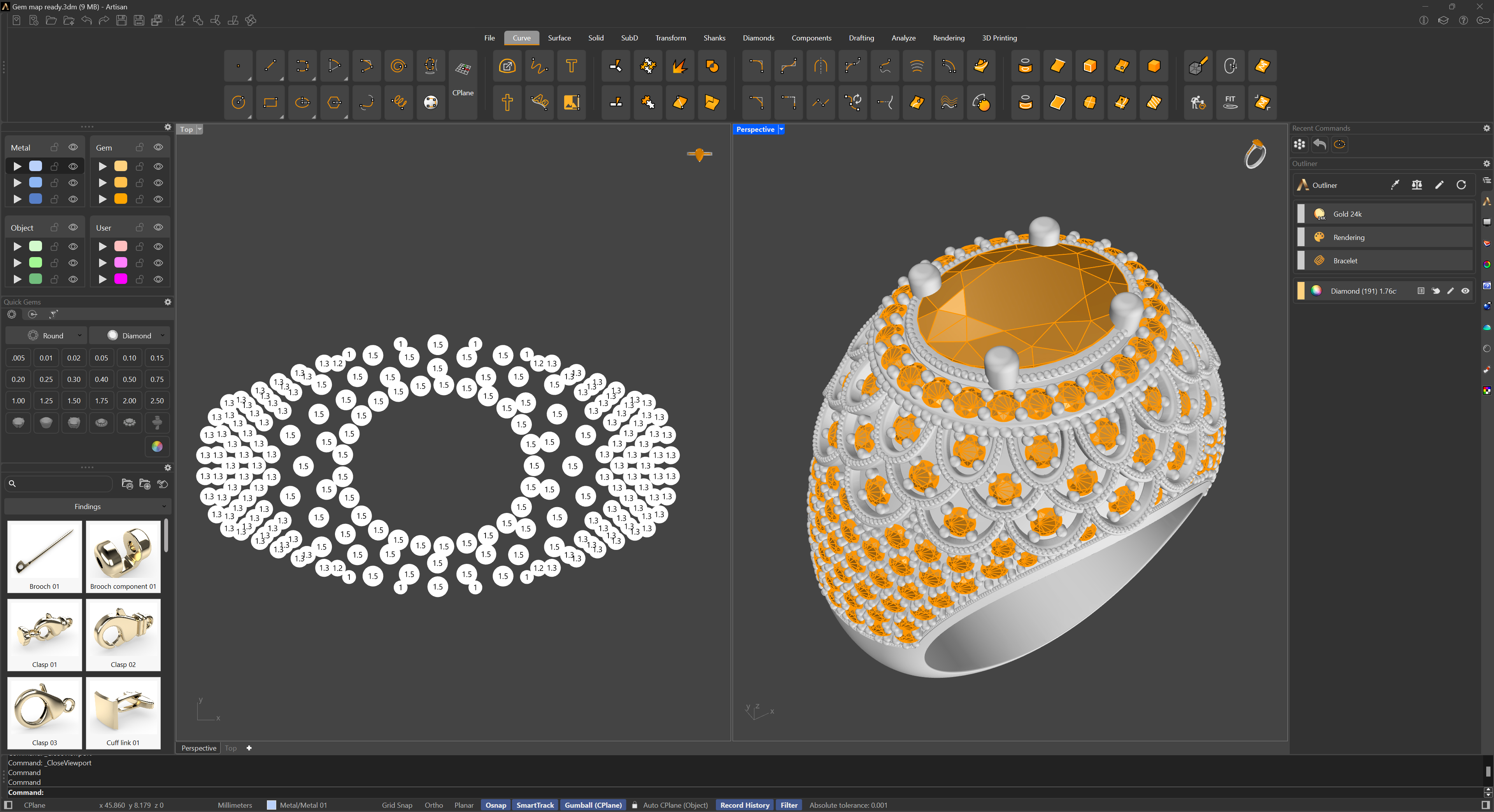

There are two parameters: **Scale** and **Projection**. By default, the scale is set to 2, doubling the map's size. The second parameter is the projection, which can be **Planar** or **Spherical**, depending on the case. In most cases, planar projection is used; however, as shown in the model below, spherical projection provides a better result.

<figure><img src="https://3375153115-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F5uhW8FwQpXQj8tHUULMo%2Fuploads%2FS4fJnr5HwFNiu0cZsvNo%2FGems%20Maps%202.jpg?alt=media&#x26;token=52863312-6d4a-4f76-a0e5-f4f3afd2deac" alt=""><figcaption></figcaption></figure>

Once you have run this command, you will be asked to pick a point on your scene where the Gems Map will be generated.

After being created, you can scale and move the Gems Map using the Gumball.
