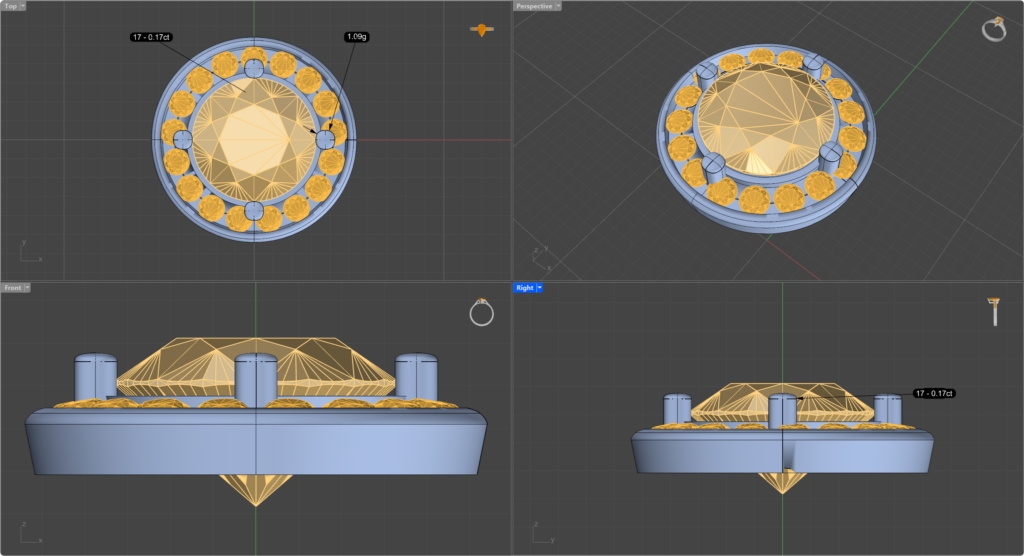

Halo Setting
Objective: Add and adjust the halo setting around the center gem.

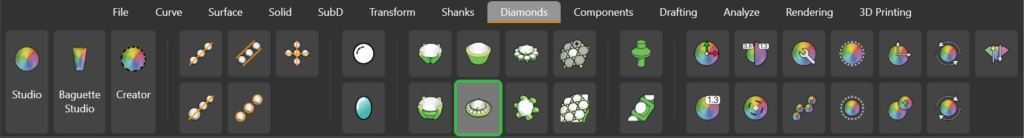

Step 1: Halo
Select the gem, then go to the toolbar and click on the "Halo" command.

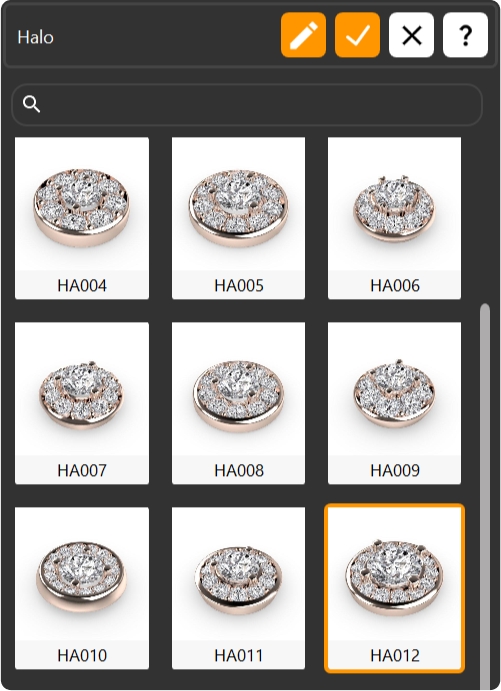

Step 2: Library
Choose the HA012 model for the halo setting.

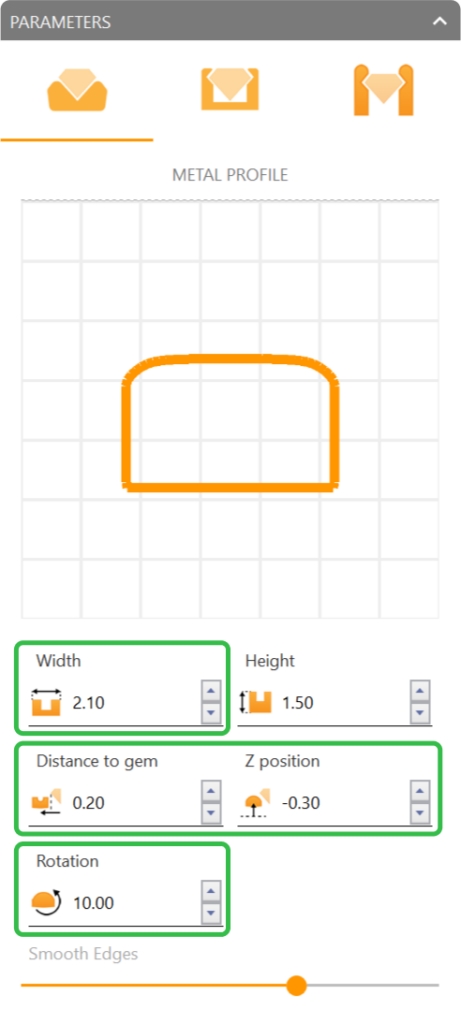

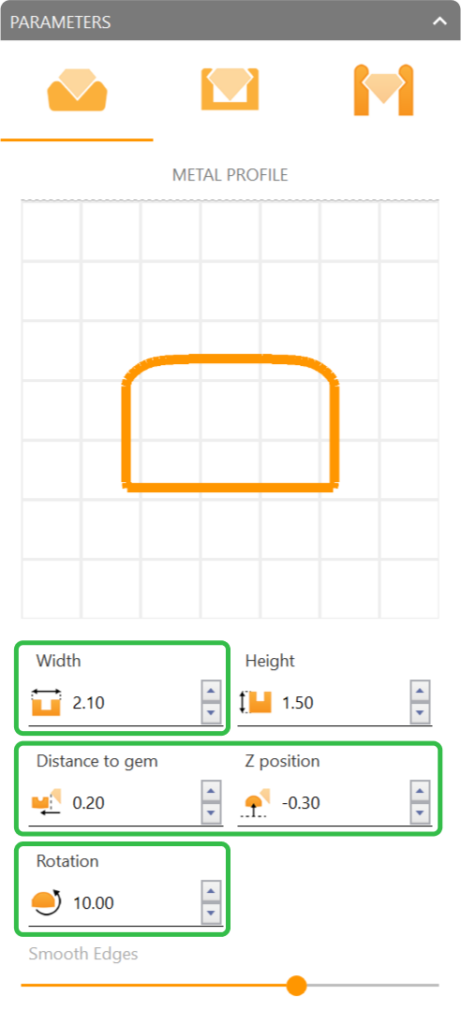

Step 3: Halo Parameters
Press "Edit" and adjust the metal profile parameters:
Width: 2.10 millimeters.
Distance to gem: 0.20 millimeters.
Z position: -0.30 millimeters.
Rotation: 10 millimeters.

Video Lesson
Next Step: Set the halo gems.
