Gems On Curve is a versatile tool designed for distributing gemstones along a selected curve with precision and flexibility. This command is particularly useful for creating intricate designs where gems follow specific paths, such as on rings, bracelets, or other curved surfaces.
Once activated, the Gems On Curve command provides two primary panels: the Selection Panel and the Parameters Panel, offering users control over both the placement and characteristics of the gems.
Selection Panel:
Curve Selection: Begin by selecting the curve on which the gems will be distributed. This can be any open or closed curve within the design.
Orientation Object (Optional): Optionally, select an object to which the gems will be oriented. This allows you to align the gems with the surface or geometry, ensuring proper placement on complex designs.
Parameters Panel:
The Parameters Panel is divided into three tabs: Gems, Prongs, and Cutters. Each tab offers specialized options to customize the design.

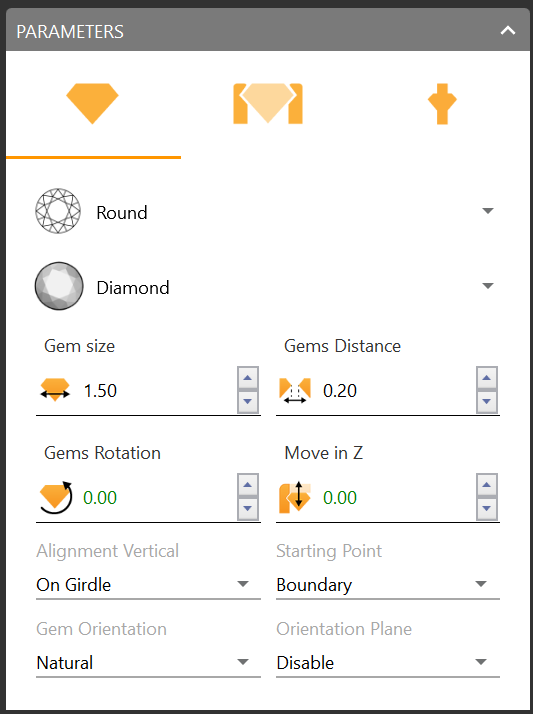

First Tab: Gems
The first tab allows you to control all aspects of gemstone distribution along the curve:
Gem Cut: Choose the desired gemstone shape (e.g., Round, Princess, Oval) from a selection of options.
Gem Material: Select the material for your gemstones, such as Diamond, Sapphire, Ruby, or other precious stones.
Gem Size: Adjust the size of the gemstones to match your design.
Distance Between Gems: Define the spacing between gemstones for precise distribution along the curve.
Rotation Angle: Rotate the gemstones at specific angles to match the design.
Z-Axis Movement: Fine-tune the vertical position of each gemstone.
Alignment: Choose between Table (flat top surface) or Girdle (widest point) alignment.
Starting Point: Decide whether the gems should be distributed from the Center (symmetrical placement) or from the Boundary of the curve (suitable for open curves).
Second Tab: Prongs
The second tab allows you to add and customize prongs for the gemstones:
Show Prongs: Enable this selector to visualize prongs around the gemstones.
Prong Distribution: Choose between two options for prong distribution:
Shared Prongs: Distribute two prongs between gemstones. This option is ideal for designs that require minimal prong use and a more streamlined look.
Individual Prongs: Distribute four individual prongs per gemstone. This provides more secure support for each stone, ideal for designs with larger or heavier gemstones.
Gumball for Prongs: When using Individual Prongs, a gumball will appear on one of the prongs of the first stone, allowing you to modify its position if needed.
Prong Diameter: Set the diameter of the prongs for both Shared and Individual prong options.
Distance Between Prongs: Control the distance between prongs when using the Shared Prongs option, allowing for consistent spacing across the design.
Height Over and Under the Girdle: Adjust the height of the prongs both above and below the girdle to ensure a secure fit and desired appearance.
Extension for Manufacturing: Define the extension length of the prongs for manufacturing purposes.
End Prong Mode: Choose whether to use two prongs for the first and last gemstones or just one, depending on your design needs.

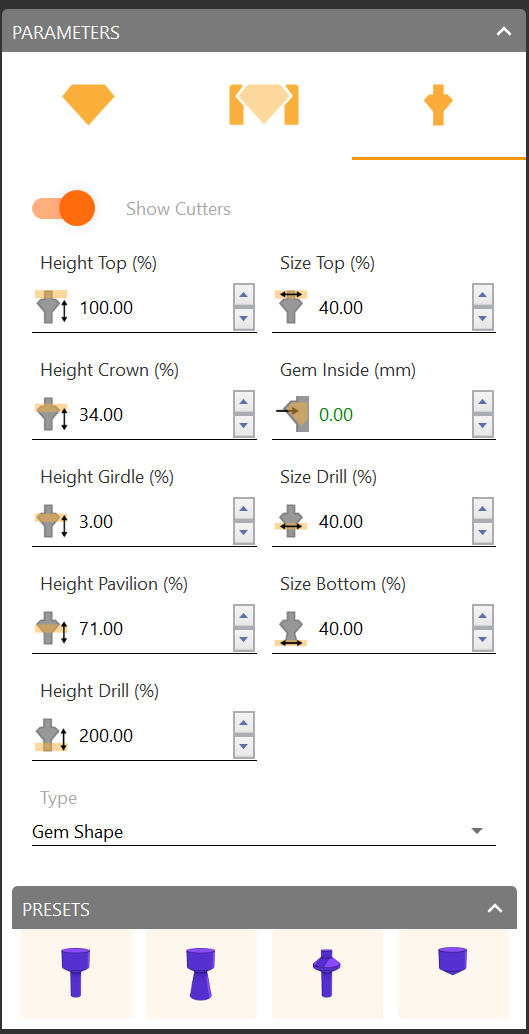

Third Tab: Cutters
The third tab focuses on the cutter settings for each gemstone:
Show Cutters: Enable this selector to display a cutter for each gemstone.
Cutter Shape: Choose from four different cutter shapes, depending on the desired cut and style of the gemstone.
Cutter Parameters: Modify various cutter parameters to adjust the cut based on your design specifications, ensuring each gemstone is shaped to perfection.
Goldsmith Tip : It can be very effective to adjust the control points of the curve you’re using to distribute the gemstones. After making adjustments, reselect the curve in the selection panel. This approach allows you to dynamically refine the curve, leading to more precise placement of the gemstones.
Once you confirm your changes, all the stones you have generated will be listed on the Outliner toolbar.
