Basket Settings

Step 1: Basket Command

Select the gem, then go to the "Diamonds" tab and choose the "Basket" command.

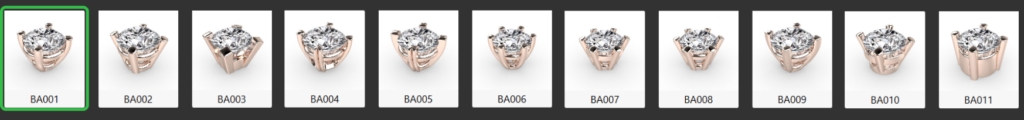

Step 2: Basket Library

Select model BA001 for the basket setting and press "Edit."

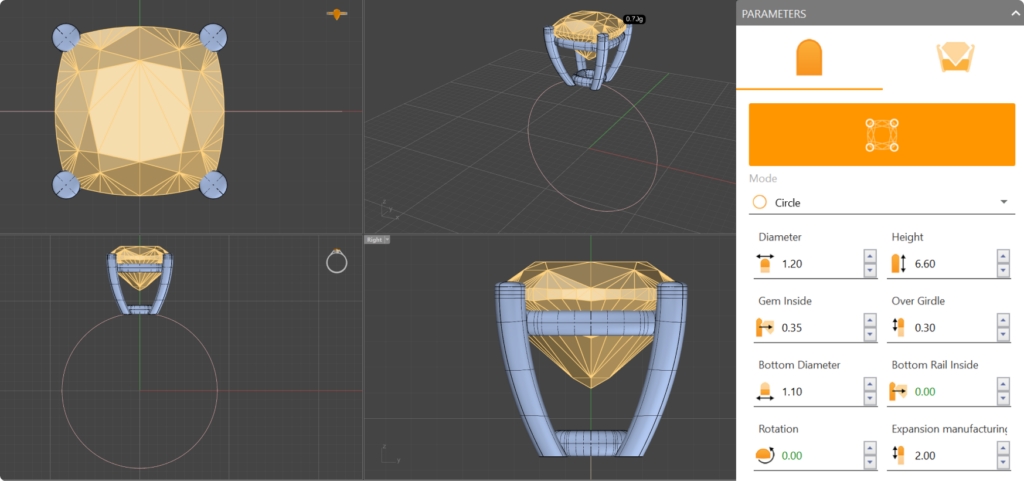

Step 3: Parameters

Adjust the following parameters

• Mode: Circle

• Diameter: 1.2 millimeters

• Height: 6.6 millimeters

• Gem inside: 0.35 millimeters

• Over Girdle: 0.30 millimeters

• Bottom Diameter: 1.1 millimeters

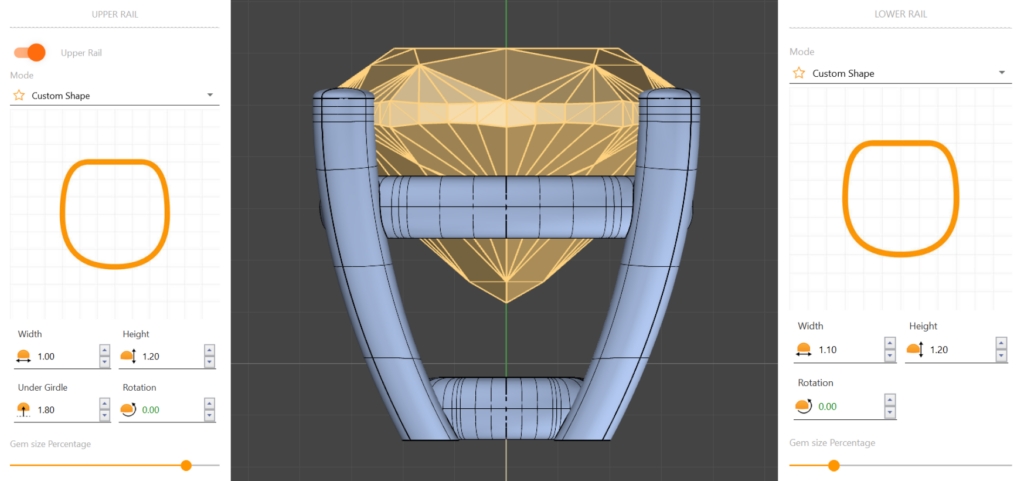

Step 4: Rails

In the "Rails" tab, adjust:

• Upper rail height: 1.20 millimeters

• Under Girdle: 1.8 millimeters

• Lower rail width: 1.1 millimeters

• Lower rail height: 1.2 millimeters

Video Lesson

Next Step: Begin designing the cathedral shank.
