Cutters

Objective: Create and apply cutters to the gems to prepare the models for rendering with the correct material settings.

Step 1: Cutter Command

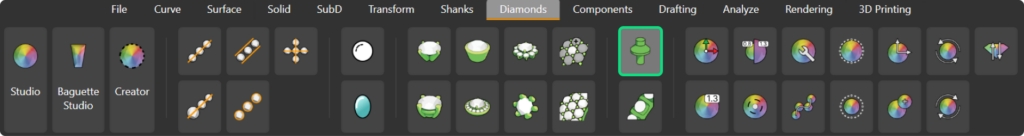

In the Diamonds tab, use the Cutter command.

Step 2: Cutter Panel

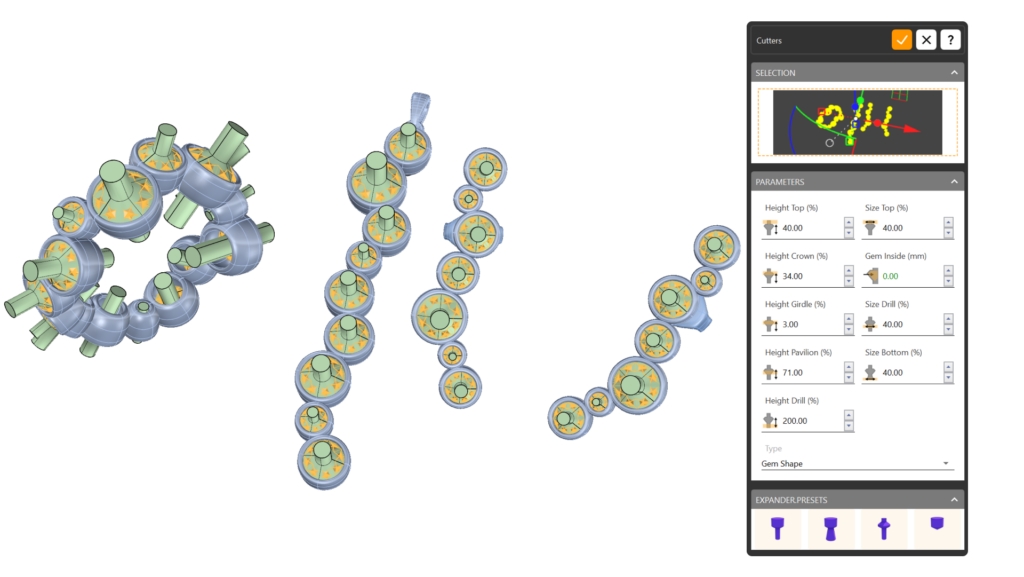

Select all the gems and click on the panel to create the cutters.

Step 3: Boolean Command

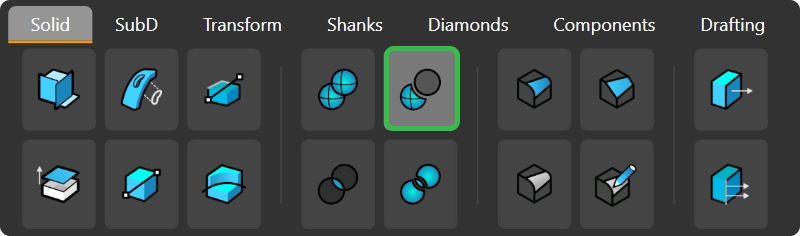

Go to the Solid tab and select Boolean Difference.

Step 4: SelColor

Select one bezel and type SelColor in the command bar. Press enter to select all bezels.

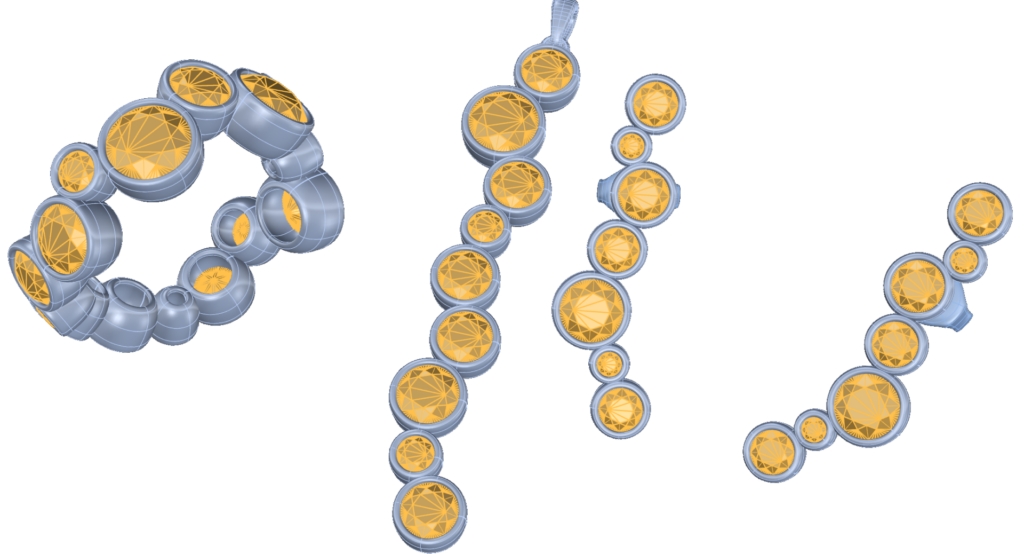

Step 5: After selecting the bezels, choose the cutters and press Enter to apply.

Next Step: Start applying materials to the models.
