Add Sketches

The Add Sketches command simplifies the insertion and alignment of reference images in the viewport to aid in precise modeling with RhinoArtisan.

Workflow:

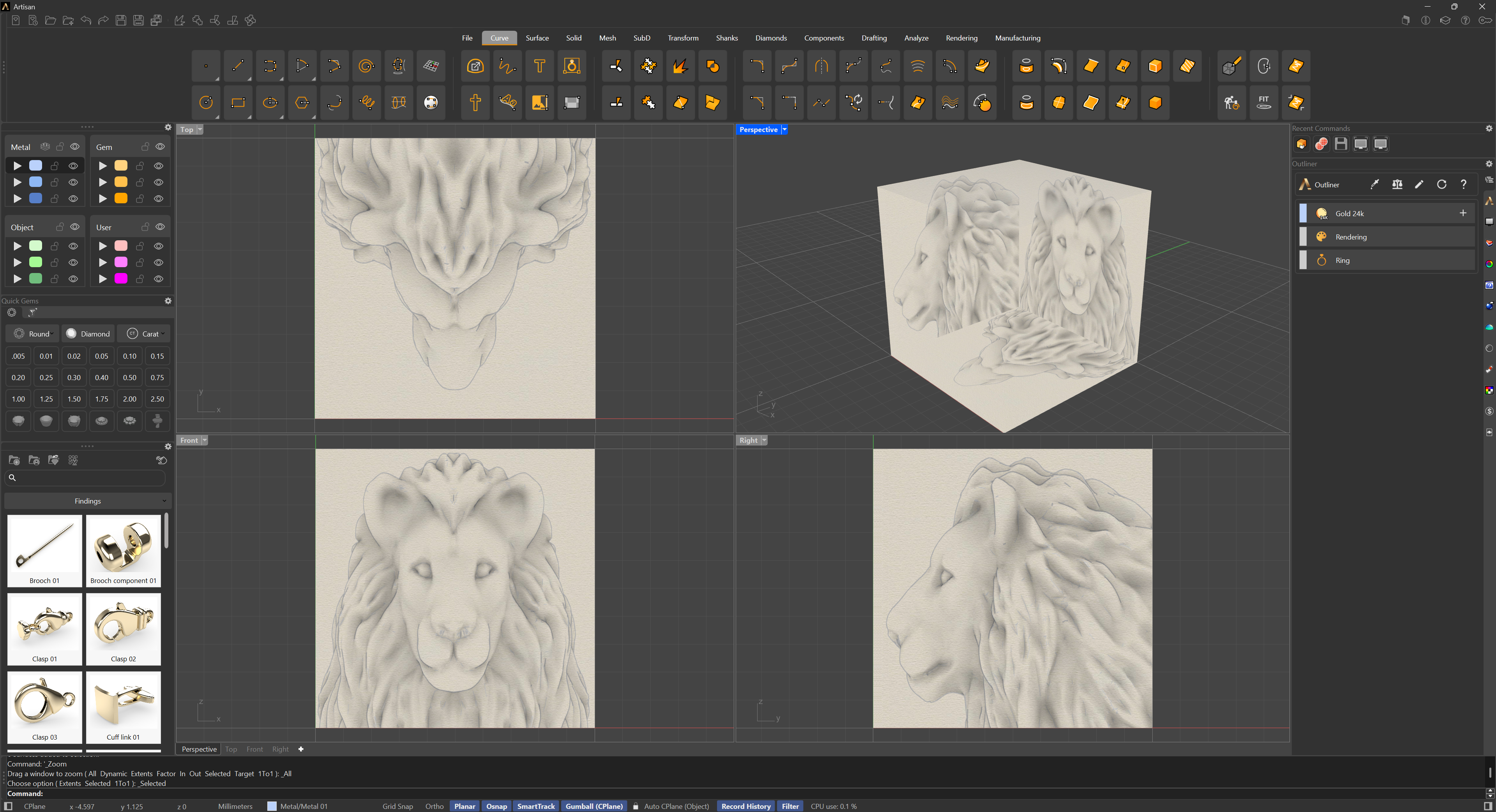

  1. Reference Cube Appears: When the command is activated, a cube appears in the viewport.

  2. Image Input: In the command panel, the user can select three reference images for the Top, Front, and Side views.

  3. Automatic Alignment: The images are automatically placed on the corresponding faces of the cube, aligned in 3D space.

  4. Confirmation and Display: Once the command is confirmed, the cube becomes transparent, leaving only the images visible for reference.

Advantages:

Provides an intuitive system for organizing sketches in 3D space. Ensures precise and automatic alignment of reference images. The transparent cube avoids visual obstructions.
