Bezel Setting

Objective: Design and edit the bezel for the center gem.

Step 1: Bezel Command

Select the gem and go to the "Diamonds" tab. Click on the "Bezel" command.

Step 2: Bezel Library

Choose the BE016 model and click "Edit."

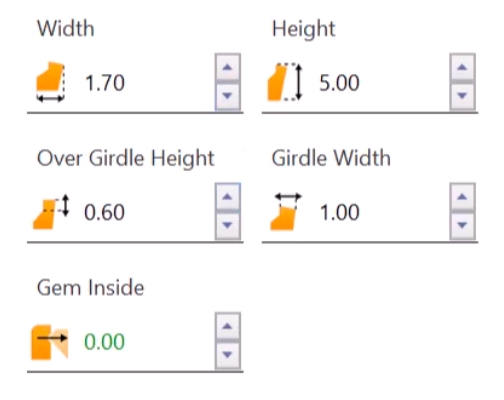

Step 3: Parameters

Adjust the following parameters:

• Width: 1.7 millimeters.

• Over Girdle height: 0.6 millimeters.

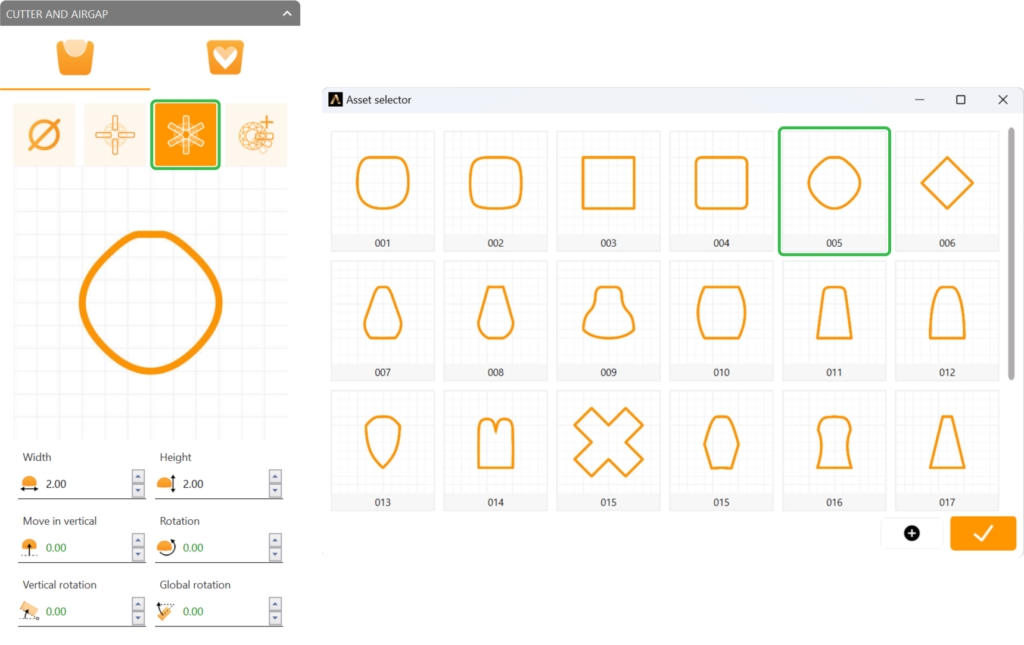

Step 4: Cutter and Airgap

In the "Cutter and Airgap" options:

• Select the third option.

• Use profile curve 005.

Video Lesson

Next Step: Begin creating the ring shank.
