Mirror and Classic Shank

Complete the basket assembly and create the shank for the ring.

Mirror the assembly

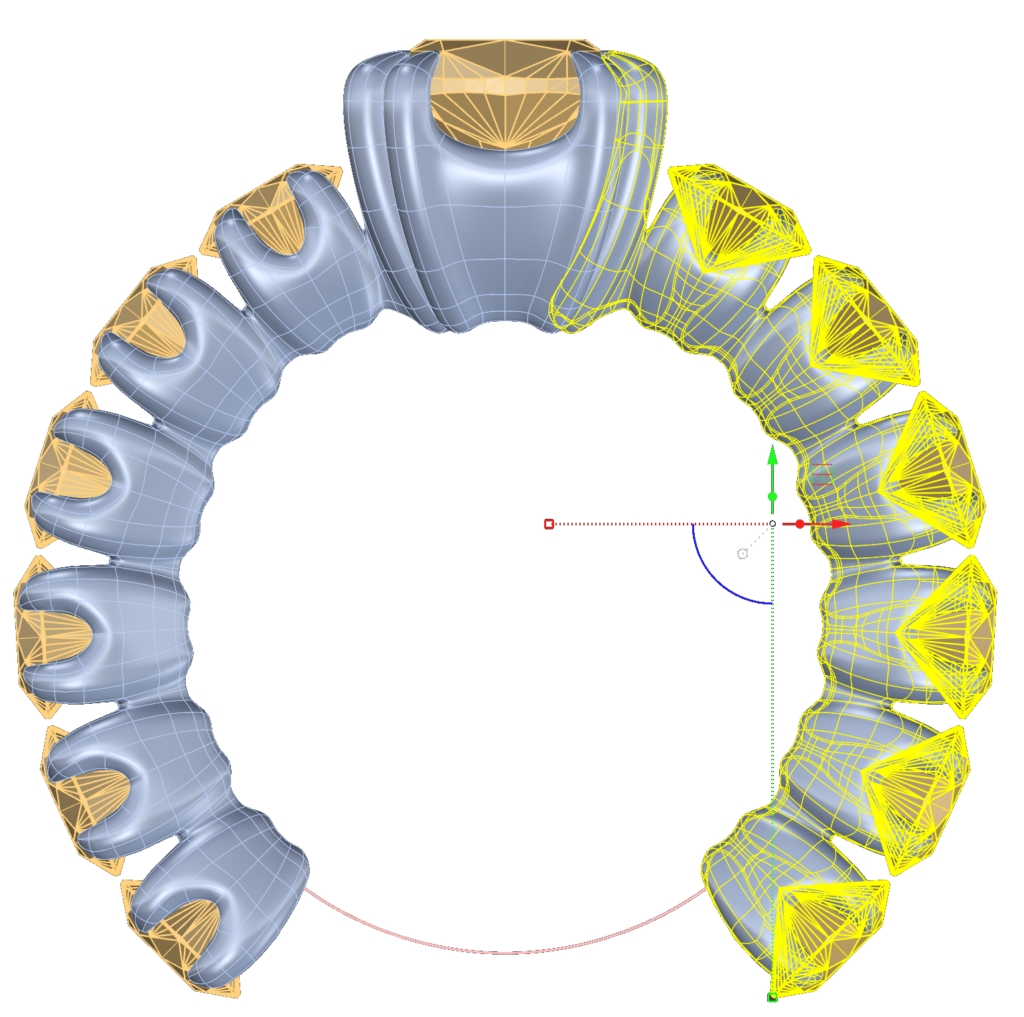

Delete the left half of the cushion basket.

Mirror the remaining elements along the Y-axis to complete the structure.

Create the shank

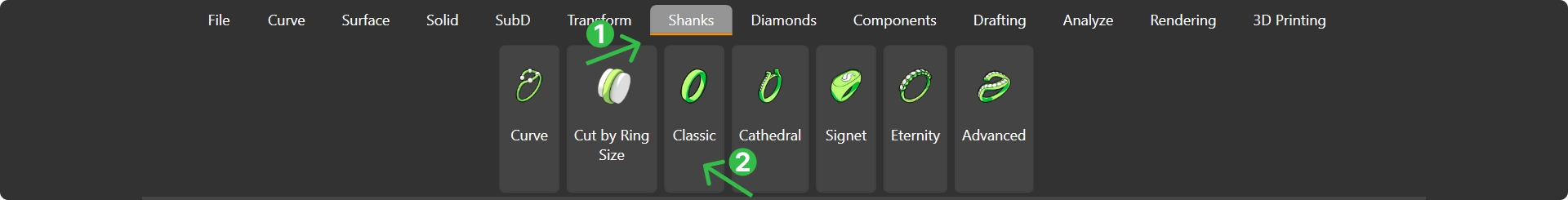

Navigate to the Shanks tab (1) and use the Classic command (2).

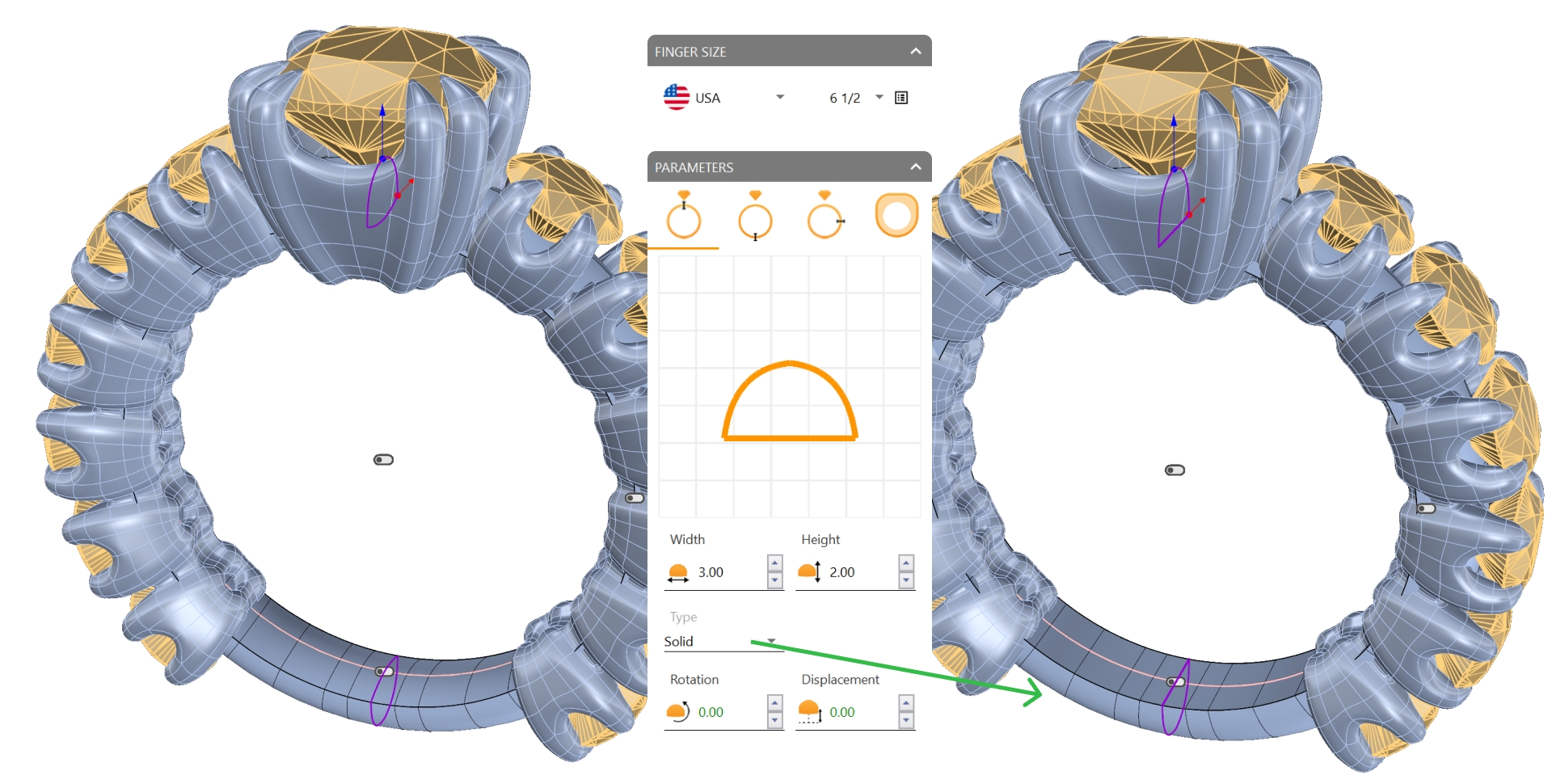

Click Edit and set the Type: Solid.

Important: Set the Size to USA 6 1/2

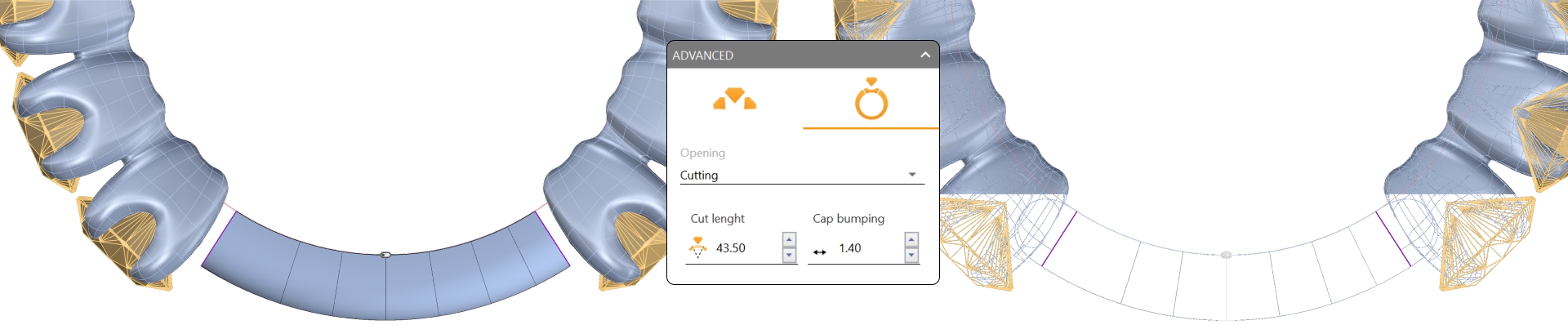

Advanced:

  • Opening: Cutting.

  • Cup Bumping: 1.40.

Adjust settings

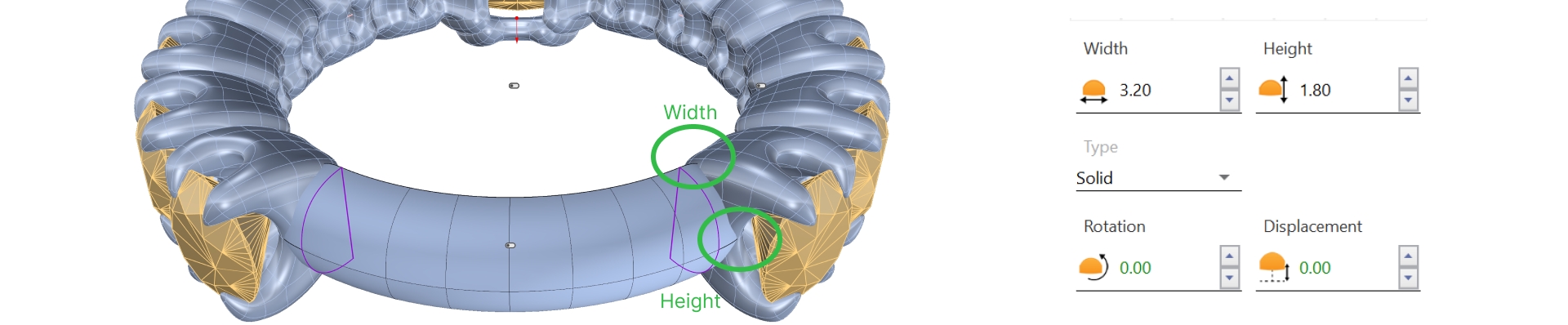

Now we will adjust the height to match the height of the baskets. Ensure it does not exceed the bridge; this measurement may vary depending on the shape of each basket. In my case, I will use a height of 1.8 mm. Adjust it to fit your model.

We will also modify the width: In my case, 3.20 mm.

Video Lesson

Next Step

Finalize the model with cutters and prepare for rendering.
