Pose elements and add a Pearl

Objective: Position each element correctly.

Step 1: Pose Elements

Move the basket and gem 10 millimeters back and 7.736 millimeters up using the gumball.

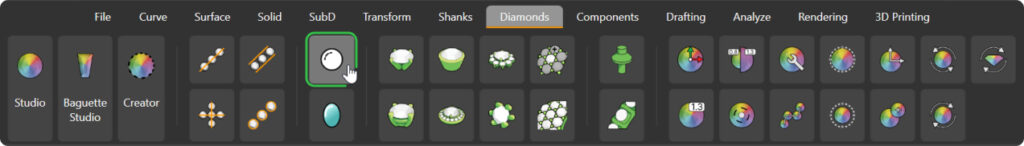

Step 2: Pearl Command

Then, in the Diamonds tab, select the Pearl command.

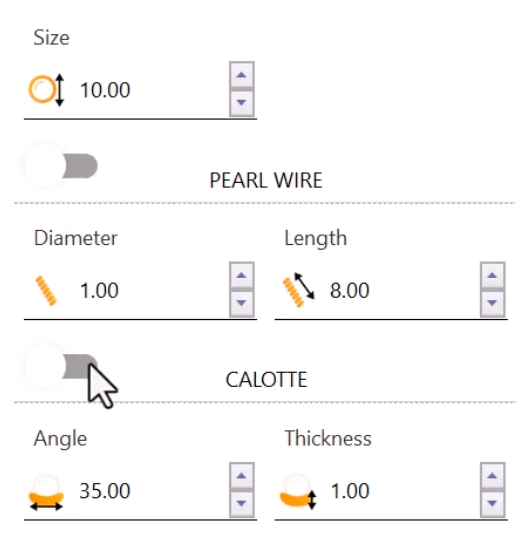

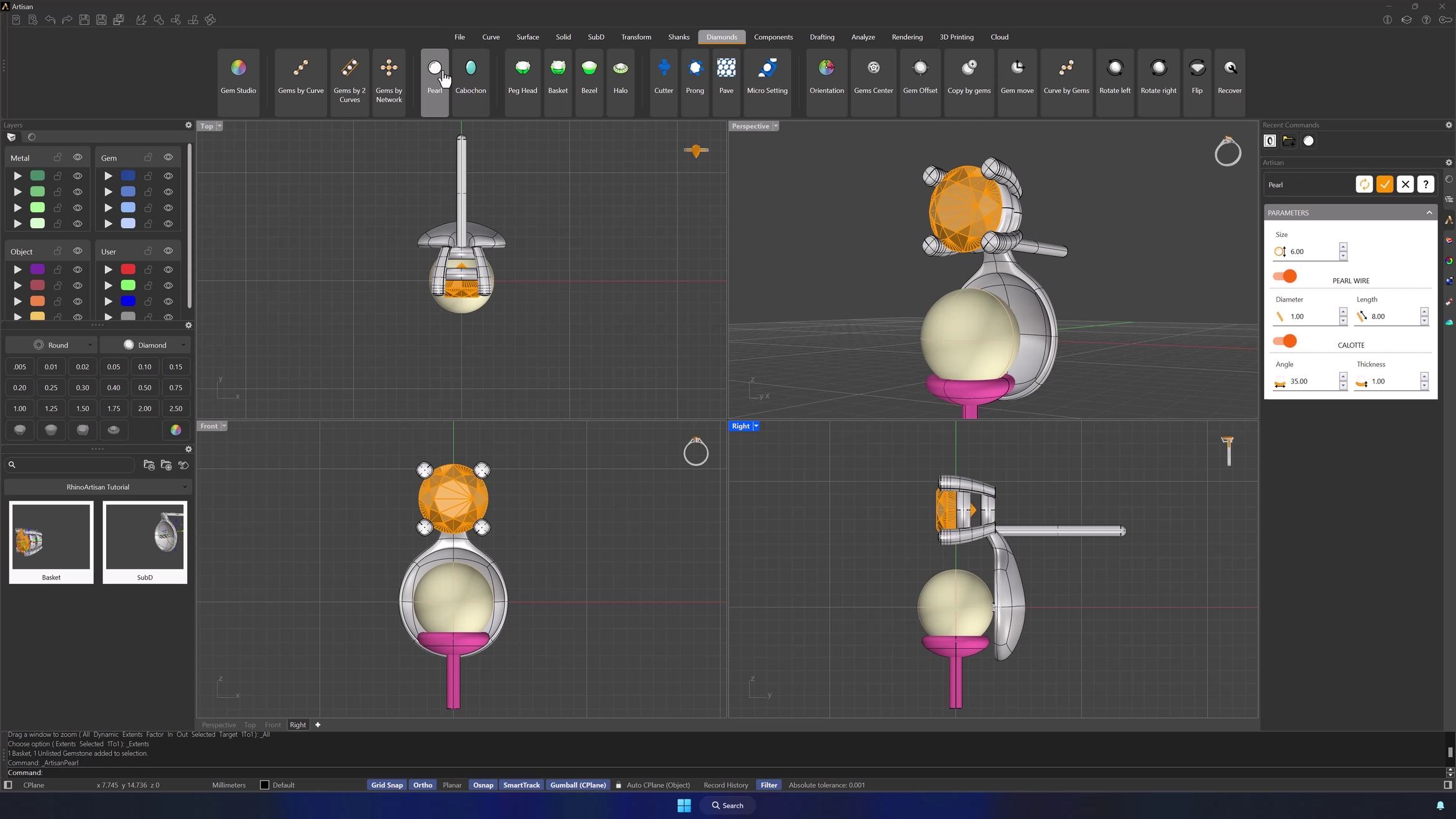

Step 3: Parameters

Change the size to 10 millimeters. Deactivate the Wire and the Calot, then accept.

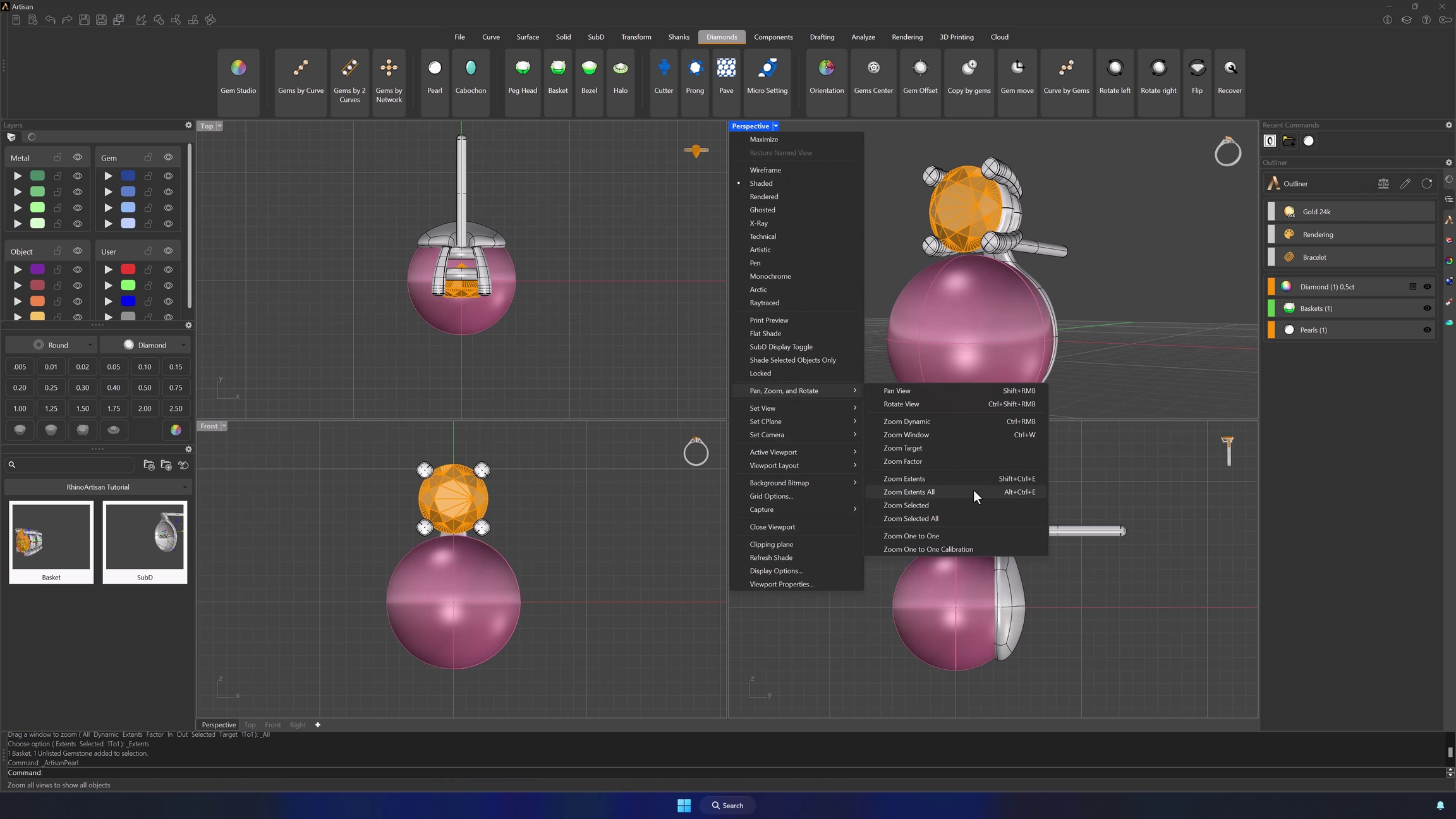

Step 4: Zoom extents All

Select in the Perspective view, "Pan, Zoom, and Rotate", and then "Zoom Extents All" to center the view.

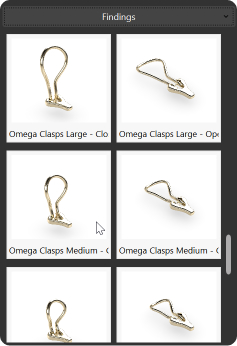

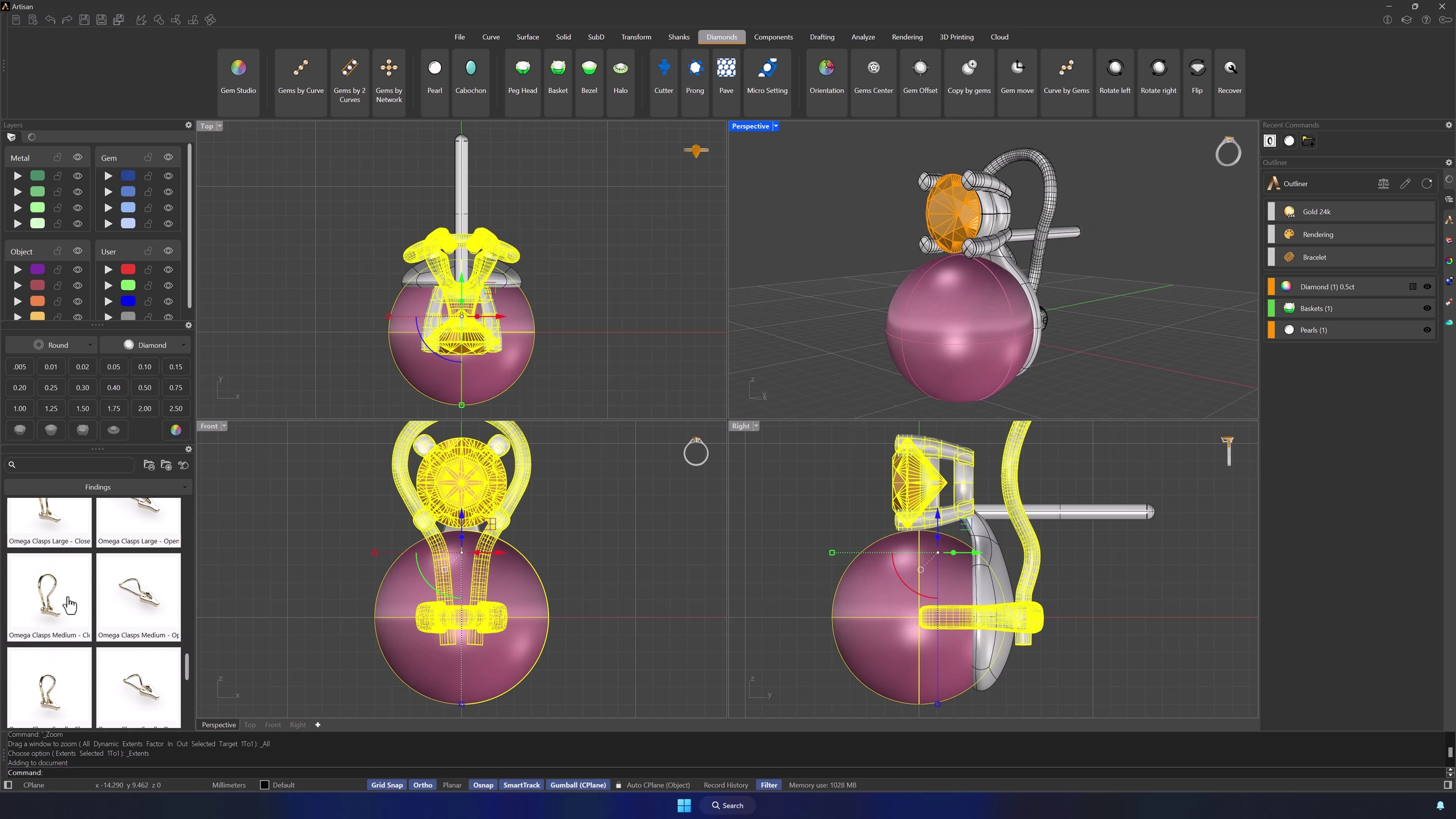

Step 5: Findings Elements

Also, add the clasp system: in the Findings category, select Omega Clasps Medium.

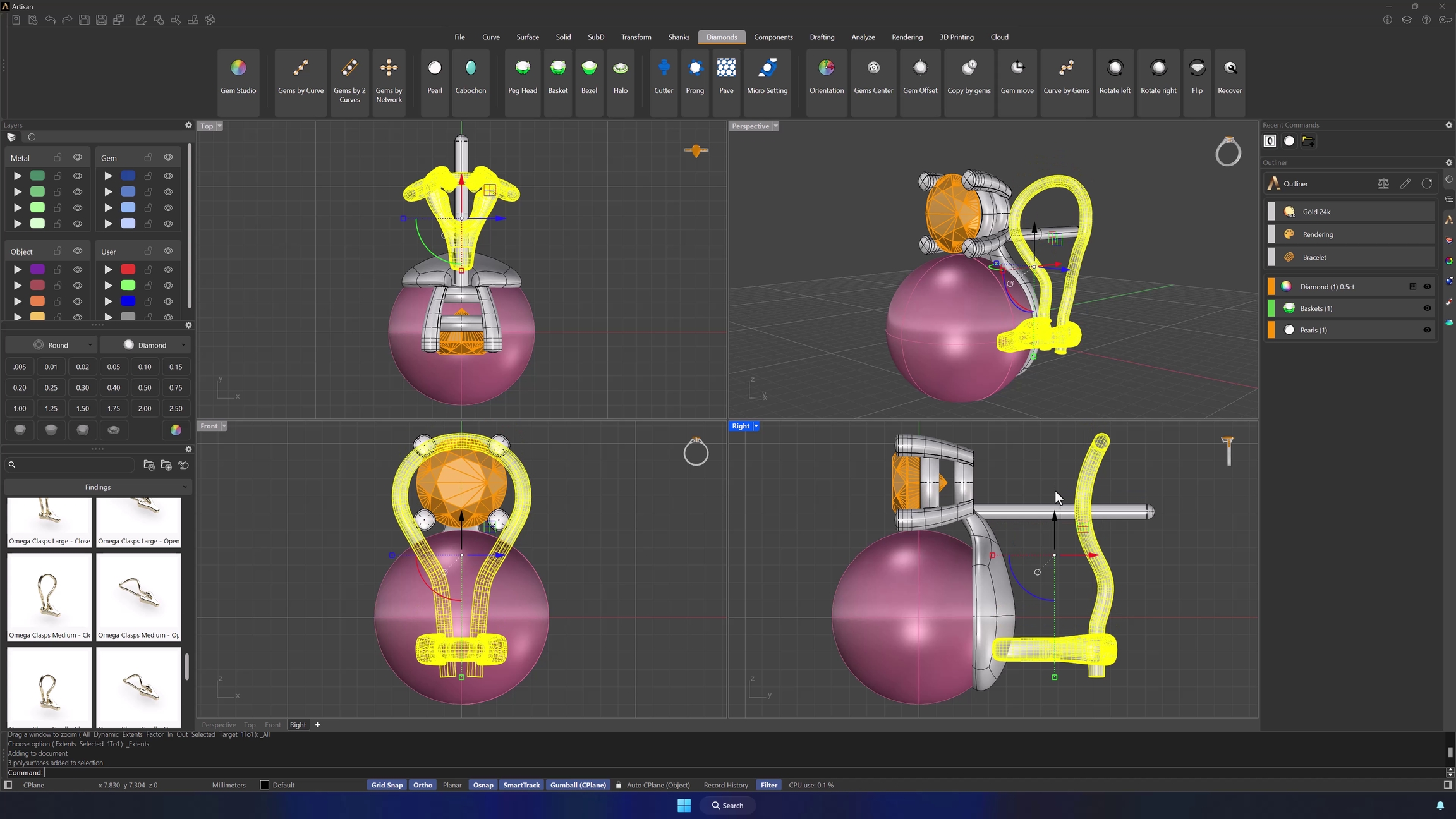

Step 6: Pose the Omega Clasps

Select the entire piece and move it 4.422 millimeters back and 1.848 millimeters down using the gumball.

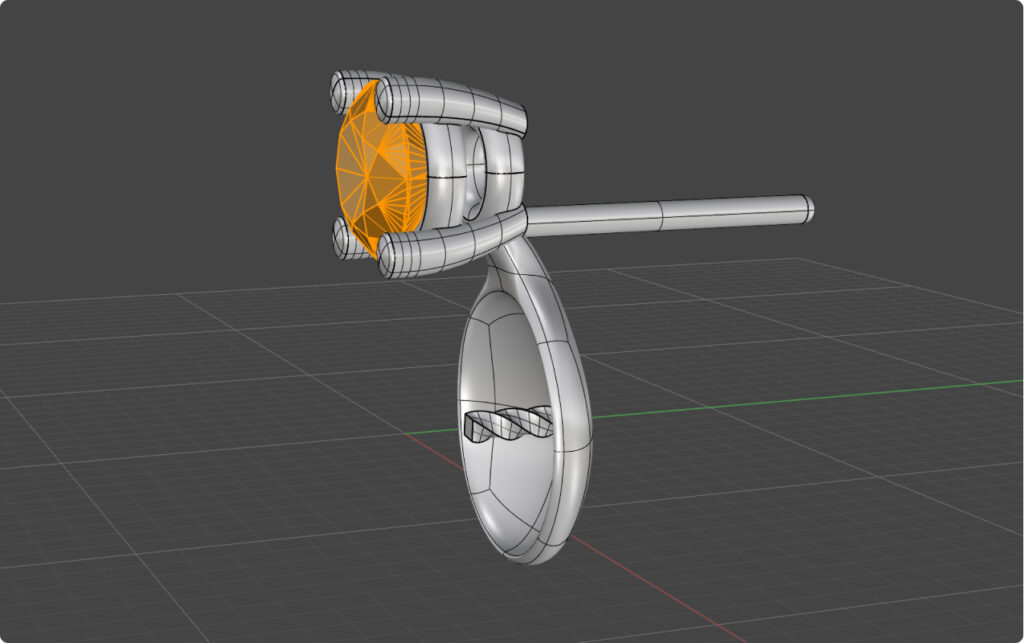

Our earring is complete!

Video Lesson

Next Steps

Create pair
