Prongs Settings

Objective: Customize the prongs for the halo gems.

Step 1: Prongs Settings

In the "Prong Settings" tab, activate the third option (scalloped) and the "Boolean" option. Adjust the cutter parameters:

  • Start width: 1.4 millimeters.

  • End width: 0.4 millimeters.

  • Mode: Independently.

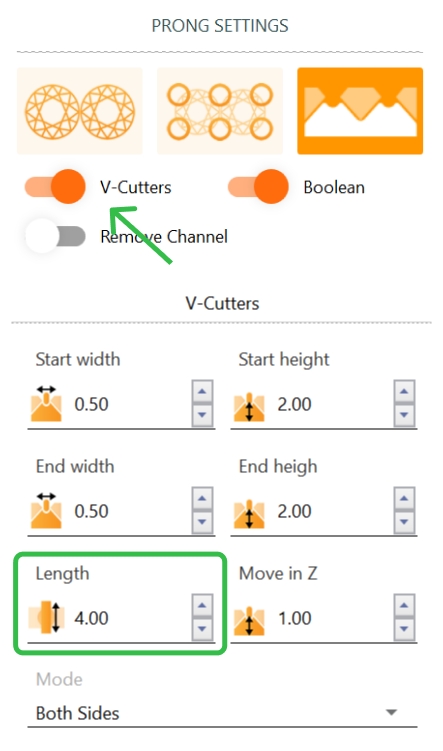

Step 2: Cutters

In the V-Cuters section, adjust the length to 4 millimeters and activate the "V-Cuters " option.

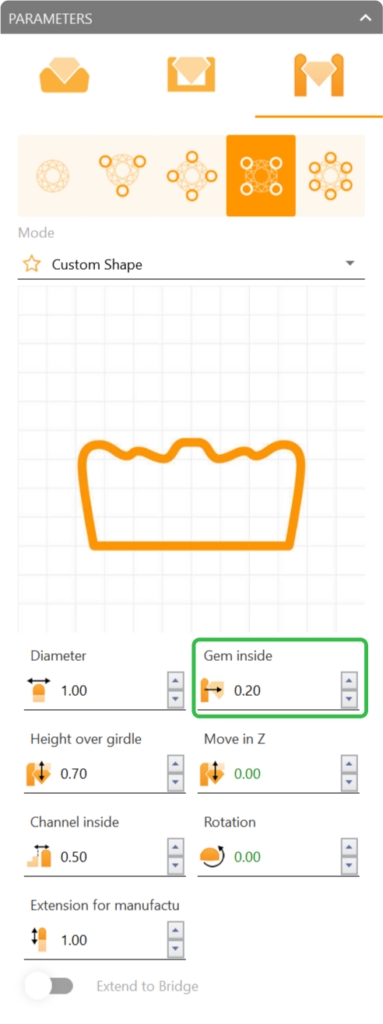

Step 3: Prongs

Go to the "Prongs" tab and select the 4th option. Set the gem inside to 0.2 millimeters.

Video Lesson

Next Step: Begin constructing the cathedral shank.
